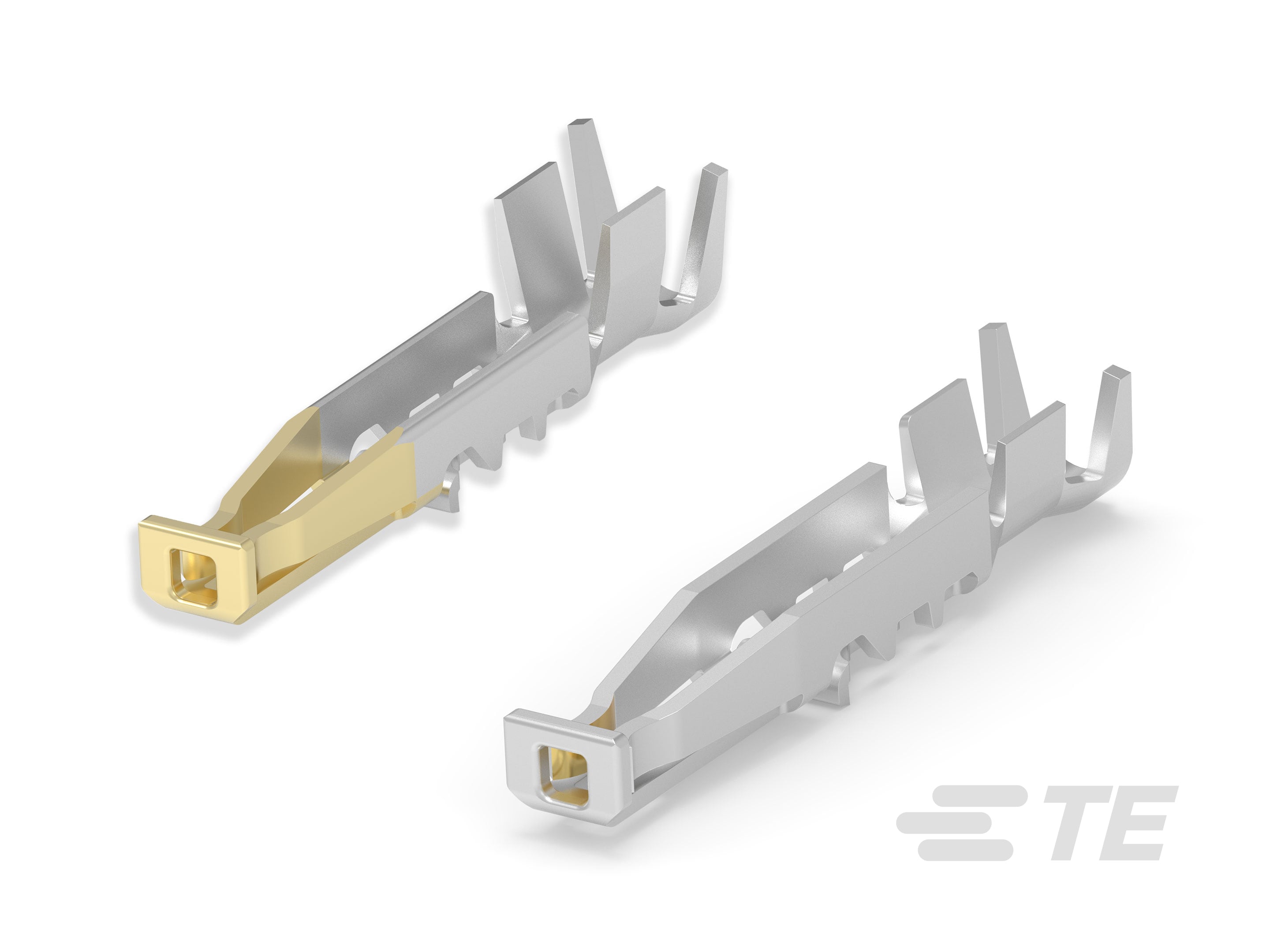

ERNI MaxiBridge Female Contact

ERNI MaxiBridge Female Contact-CAT-0B2-SRCROL
The MaxiBridge connector is engineered to meet the demanding standards of both industrial and automotive applications, serving as a reliable wire-to-board solution. The female contact series includes variable options on wire size and packages. It fits the ERNI MaxibriBridge female connector and ERNI VolTron 1000V housing.
More Less
Connect with Us

Product Features

  • Contact Type : Receptacle

  • Contact Mating Area Plating Material : Gold (Au) | Gold Flash

  • Wire Contact Termination Area Plating Material : Gold | Tin

  • Operating Voltage (VDC): 1000

  • Contact Retention Within Housing : With

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Discrete Wire Type  Solid or Stranded

  • Sealable  No

Configuration Features

  • Compatible With Wire & Cable Type  Discrete Wire

Electrical Characteristics

  • Operating Voltage (VDC) 1000

Contact Features

  • Contact Length  13.08 mm [ .515 in ]

  • Barrel Type  Open

  • Contact Shape & Form  Square

  • PCB Contact Termination Area Plating Material  Tin

  • Contact Type  Receptacle

  • Contact Mating Area Plating Material  Gold (Au) | Gold Flash

  • Wire Contact Termination Area Plating Material  Gold | Tin

  • Contact Retention Within Housing  With

  • Contact Size  .62mm

  • Contact Base Material  Copper Alloy | Copper-Nickel-Silicon

  • Contact Current Rating (Max) (A) 12

  • Contact Orientation  Straight

Termination Features

  • Termination Method to Wire & Cable  Crimp

  • Product Terminates To  Wire & Cable

Mechanical Attachment

  • Contact Retention Type Within Housing  Locking Hook

  • Wire Insulation Support  With

Dimensions

  • Wire Size (AWG) 18 – 20 | 20 – 22 | 24 – 26

  • Wire Size (mm²) .25 – .14 | .5 – .35 | .51 – .32 | .52 – .34 | .75 – .5

  • Wire Size (CMA) 404 | 1022

  • Compatible Insulation Diameter Range  1.5 mm [ .059 in ]

Usage Conditions

  • Operating Temperature Range (°C) -55 – 150 | -40 – 150

  • Operating Temperature Range (°F) -67 – 302 | -40 – 302 | -40 – 300

Operation/Application

  • Circuit Application  Power & Signal

Packaging Features

  • Packaging Quantity  500 | 10000

  • Packaging Method  Reel | Strip
