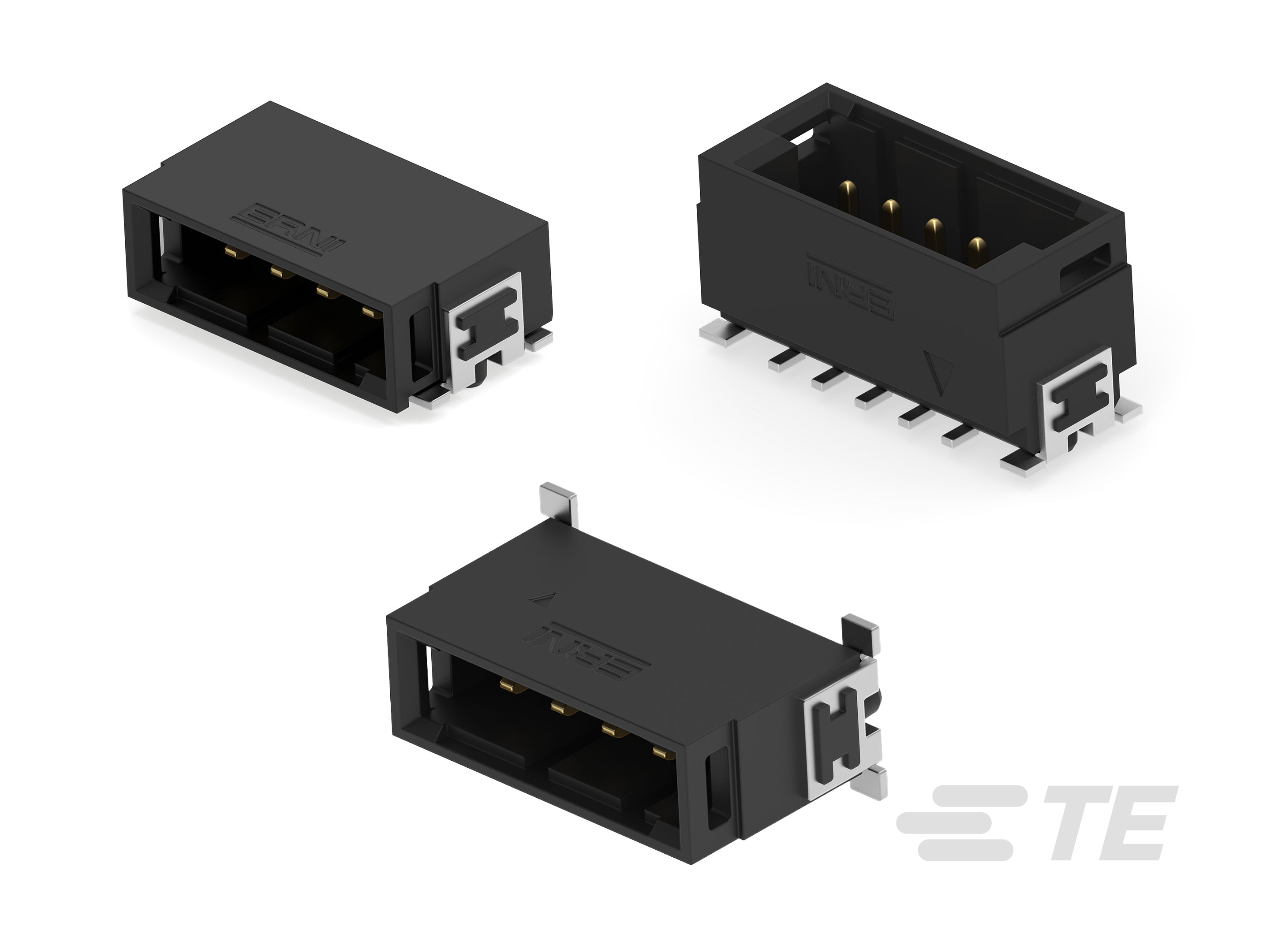

ERNI MaxiBridge Male Connector

ERNI MaxiBridge-CAT-0B2-MAXIBRIDGE
The MaxiBridge connector is engineered to meet the demanding standards of both industrial and automotive applications, serving as a reliable wire-to-board solution. The male connectors are available in a range from 2-pin up to 10-pin single row configurations. They are also available in 10-pin and 20-pin double row configuration. Each connector is constructed using Surface Mount Technology (SMT) and is offered in both straight and angled versions, ensuring compatibility with diverse installation requirements.
More Less
Connect with Us

Product Features

  • PCB Connector Type : PCB Mount Header

  • PCB Mount Orientation : Horizontal | Right Angle | Vertical

  • PCB Connector Type : PCB Mount Header

  • PCB Mount Orientation : Horizontal | Right Angle | Vertical

  • Connector System : Board-to-Board | Cable-to-Board | Wire-to-Board

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Mixed & Hybrid Header  No

  • Connector Shape  Rectangular

  • PCB Connector Type  PCB Mount Header

  • PCB Connector Type  PCB Mount Header

  • Connector System  Board-to-Board | Cable-to-Board | Wire-to-Board

  • Header Type  Fully Shrouded

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

  • Header Type  Fully Shrouded

  • Connector Product Type  Connector Assembly

Configuration Features

  • Number of Columns  2 | 3 | 4 | 5 | 6 | 8 | 10

  • Number of Loaded Positions  2 | 3 | 4 | 5 | 6 | 8 | 10 | 20

  • Stackable  No | Yes

  • Stacking Configuration  Stack Through

  • Connector Contact Load Condition  Fully Loaded

  • PCB Mount Orientation  Horizontal | Right Angle | Vertical

  • PCB Mount Orientation  Horizontal | Right Angle | Vertical

  • Number of Positions  2 | 3 | 4 | 5 | 6 | 8 | 10 | 20

  • Number of Rows  1 | 2

  • Number of Rows  1 | 2

Electrical Characteristics

  • Dielectric Withstanding Voltage (Max) (Vrms) 500

  • Insulation Resistance (MΩ) 100 | 10000

Body Features

  • Primary Product Color  Black | Blue | Green | Red

  • Primary Product Color  Black | Blue | Green | Red

Contact Features

  • Contact Size  .63mm | .64mm

  • Contact Mating Area Length  4.1 mm [ .161 in ]

  • PCB Contact Termination Area Plating Material Thickness  4 – 6 µm [ 157.48 – 236.22 µin ]

  • Contact Base Material  Copper Alloy

  • PCB Contact Termination Area Plating Material  Tin

  • Contact Layout  Inline | Matrix

  • Contact Shape & Form  Rectangular | Square

  • PCB Contact Termination Area Plating Material  Tin

  • Contact Mating Area Plating Material  Gold (Au)

  • Contact Type  Pin | Tab

  • Contact Mating Area Plating Material  Gold (Au)

  • Contact Current Rating (Max) (A) 10 | 11.1 | 11.8 | 12 | 12.7 | 13 | 14.8 | 14.9 | 15 | 15.1 | 16.8 | 17

  • Contact Type  Pin | Tab

Termination Features

  • Termination Method to PCB  Surface Mount

  • Termination Method to PCB  Surface Mount

Mechanical Attachment

  • Mounting Alignment Feature Length (mm) .7 | .75

  • Mounting Alignment Feature Length (in) .028 | .029

  • PCB Mount Retention Type  Mounting Screw

  • Mating Retention  With

  • PCB Mount Alignment Type  Locating Posts | Pegs

  • Mating Retention Type  Latch | Locking

  • Mating Retention  With

  • PCB Mount Alignment  With

  • Mating Alignment Type  Polarization

  • PCB Mount Alignment  With

  • Mating Alignment Type  Polarization

  • Connector Mounting Type  Board Mount

  • Mating Alignment  With

  • PCB Mount Retention  With | Without

  • PCB Mount Retention  With | Without

Housing Features

  • Mating Entry Location  Side | Top

  • Centerline (Pitch)  2.54 mm [ .1 in ]

  • Housing Material  Liquid Crystal Polymer (LCP)

  • Housing Material  Liquid Crystal Polymer (LCP)

Dimensions

  • Connector Length (mm) 11.54 | 14.08 | 16.62 | 19.16 | 21.7 | 26.74 | 26.78 | 31.86

  • Connector Length (in) .454 | .554 | .654 | .754 | .854 | 1.053 | 1.054 | 1.254

  • Profile Height from PCB (mm) 5.05 | 9.4

  • Profile Height from PCB (in) .199 | .37

  • Connector Height (mm) 5.05 | 5.8 | 7.99 | 9.4

  • Connector Height (in) .199 | .228 | .314 | .37

  • Connector Width (mm) 7.2 | 7.94 | 8.9 | 13.7

  • Connector Width (in) .283 | .313 | .35 | .539

  • Row-to-Row Spacing  2.54 mm [ .1 in ]

  • Row-to-Row Spacing  2.54 mm [ .1 in ]

Usage Conditions

  • Operating Temperature (Max) (°C) 105 | 125 | 150

  • Operating Temperature (Max) (°F) 221 | 257 | 302

  • Operating Temperature Range (°C) -55 – 150 | -40 – 125 | -40 – 105

  • Operating Temperature Range (°F) -67 – 302 | -40 – 257 | -40 – 221

Operation/Application

  • Assembly Process Feature  Pick and Place Cover

  • Shielded  No

  • Circuit Application  Power & Signal | Signal

Industry Standards

  • Industry Standard  IEC

  • Compatible With Agency/Standards Products  DIN | UL

  • UL Flammability Rating  UL 94V-0

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Reel Diameter  330 mm [ 12.99 in ]

  • Packaging Quantity  1 | 320 | 380 | 440

  • Packaging Method  Package | Reel | Tape & Reel

  • Packaging Method  Package | Reel | Tape & Reel
