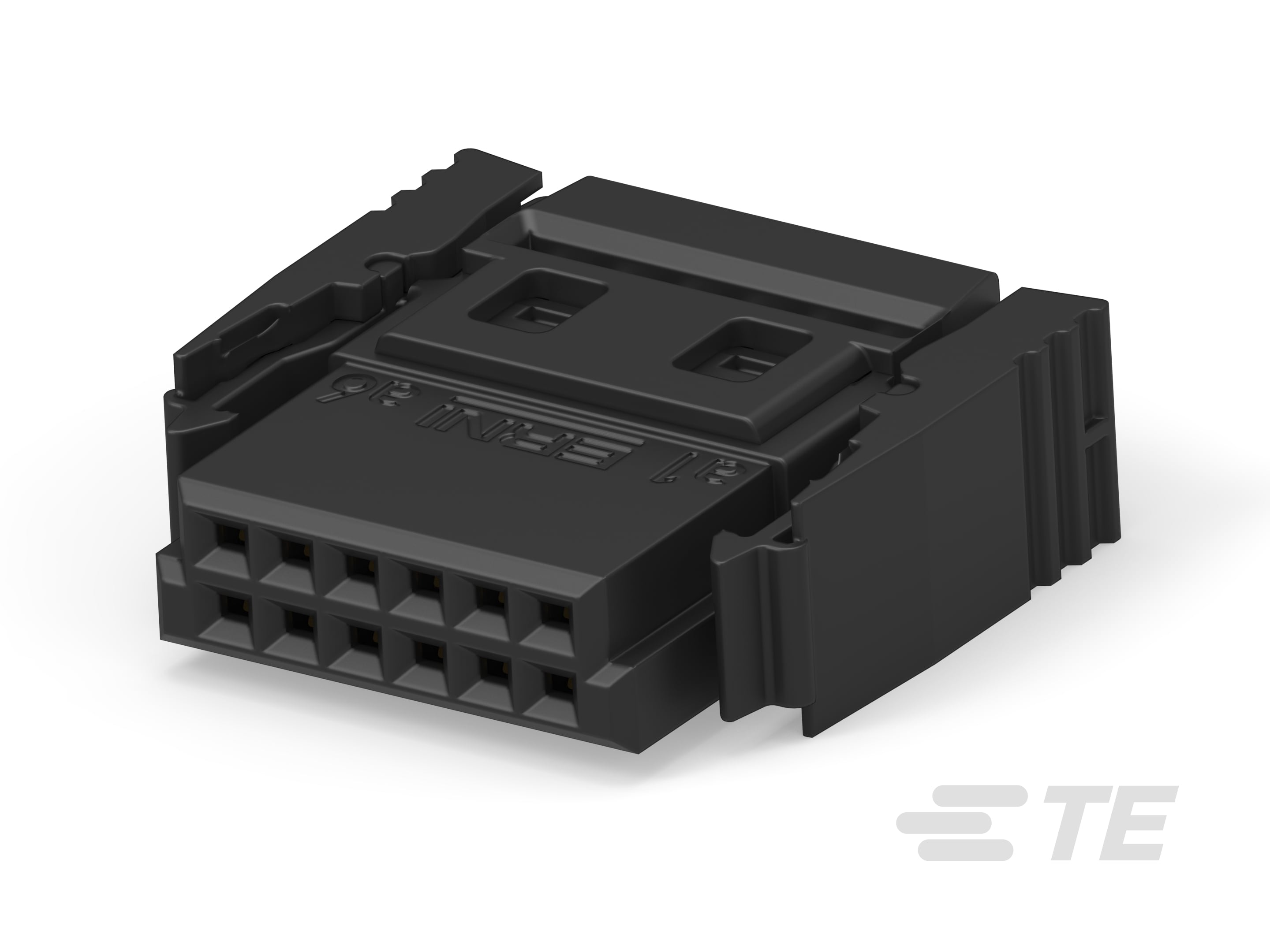

SMC Wire-to-Board Connectors

SMC Wire-to-Board Connectors-CAT-0A3-SMCH
SMC (Small Multiple Connector) housing connectors feature a compact 1.27 mm pitch with 12 to 80 positions, enabling reliable, high-density connections in space-constrained designs. The latest addition, AMP SMC essential connectors, offers a cost-effective, high-performance solution with features like polarization and strong contact design for dependable signal integrity. Together, both families provide flexible configurations to support diverse application needs.
More Less
Connect with Us

Product Features

  • Connector Product Type : Connector Assembly

  • Mating Alignment : With

  • Mating Alignment Type : Integral with Mating Surface

  • Connector & Housing Type : Receptacle

  • Mating Retention Type : Locking Latch

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector Product Type  Connector Assembly

  • Connector & Housing Type  Receptacle

  • Connector System  Wire-to-Board

  • Insertion Force Type  Normal

  • Sealable  No

  • Connector & Contact Terminates To  Wire & Cable

Configuration Features

  • Number of Positions  12 | 26 | 50 | 68 | 80

  • Number of Rows  2

Electrical Characteristics

  • Operating Voltage (VAC) 10

  • Operating Voltage (VDC) 10

Body Features

  • Primary Product Color  Black

Contact Features

  • Contact Underplating Material  Nickel

  • Contact Layout  Matrix

  • Contact Base Material  Copper Alloy

  • Contact Mating Area Plating Material  Gold Flash over Palladium Nickel

  • Contact Retention Within Housing  With

  • Contact Current Rating (Max) (A) .91 | .98 | 1.23

  • Contact Type  Receptacle

Termination Features

  • Termination Method to Wire & Cable  Insulation Displacement (IDC)

Mechanical Attachment

  • Mating Alignment  With

  • Mating Alignment Type  Integral with Mating Surface

  • Mating Retention Type  Locking Latch

  • Mating Retention  With

  • Connector Mounting Type  Free-Hanging (In-Line)

Housing Features

  • Centerline (Pitch)  1.27 mm [ .05 in ]

  • Housing Material  Liquid Crystal Polymer (LCP)

Dimensions

  • Connector Length (mm) 12.69 | 21.58 | 38.88 | 50.31 | 57.93

  • Connector Length (in) .499 | .849 | 1.53 | 1.98 | 2.28

  • Row-to-Row Spacing  1.27 mm [ .05 in ]

Usage Conditions

  • Operating Temperature Range  -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

  • Halogen Free  No

  • Shielded  No

  • Circuit Application  Power & Signal

Industry Standards

  • Compatible With Agency/Standards Products  IEC

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Method  Tray
