SMC PCB Connectors

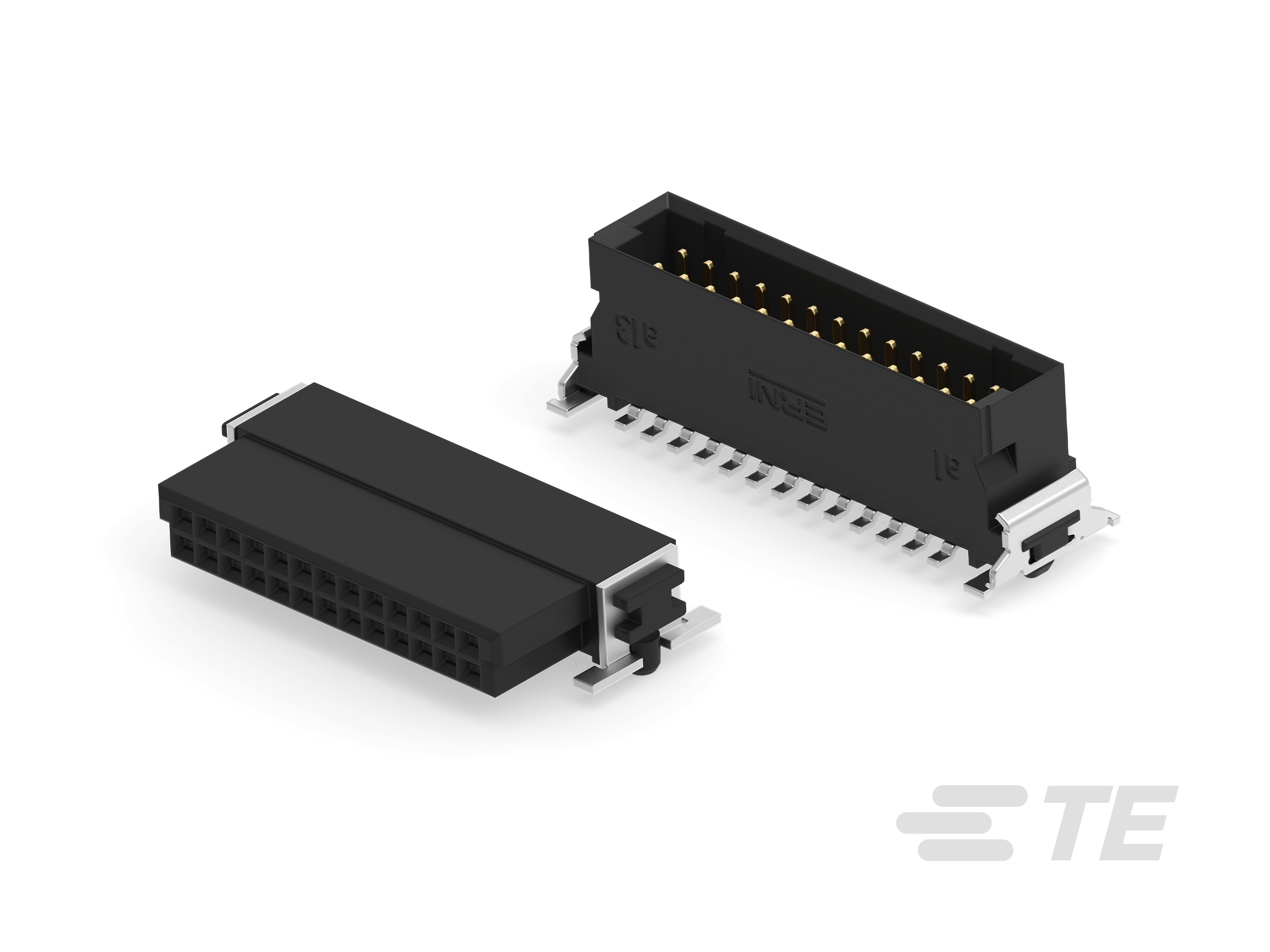

SMC PCB Connectors-CAT-0A3-SMC
SMC (Small Multiple Connector) housing connectors feature a compact 1.27 mm pitch with 12 to 80 positions, enabling reliable, high-density connections in space-constrained designs. The latest addition, AMP SMC essential connectors, offers a cost-effective, high-performance solution with features like polarization and strong contact design for dependable signal integrity. Together, both families provide flexible configurations to support diverse application needs.
More Less
Connect with Us

Product Features

  • PCB Connector Type : PCB Mount Header | PCB Mount Receptacle

  • PCB Mount Orientation : Right Angle | Vertical

  • PCB Connector Type : PCB Mount Header | PCB Mount Receptacle

  • PCB Mount Orientation : Right Angle | Vertical

  • Connector System : Board-to-Board | Wire-to-Board

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Mixed & Hybrid Header  No

  • Connector Shape  Rectangular

  • PCB Connector Type  PCB Mount Header | PCB Mount Receptacle

  • PCB Connector Type  PCB Mount Header | PCB Mount Receptacle

  • Connector System  Board-to-Board | Wire-to-Board

  • Header Type  Fully Shrouded

  • Sealable  No

  • Connector & Contact Terminates To  Flexible Printed Circuit (FPC) | Printed Circuit Board

  • Header Type  Fully Shrouded

  • Connector Product Type  Connector Assembly

Configuration Features

  • Number of Columns  6 | 8 | 10 | 13 | 16 | 20 | 25 | 40

  • Number of Loaded Positions  12 | 16 | 20 | 26 | 32 | 40 | 50 | 68 | 80

  • Stackable  No | Yes

  • Stacking Configuration  Stack Through

  • Connector Contact Load Condition  Fully Loaded

  • PCB Mount Orientation  Right Angle | Vertical

  • PCB Mount Orientation  Right Angle | Vertical

  • Number of Positions  12 | 16 | 20 | 26 | 32 | 40 | 50 | 68 | 80

  • Number of Rows  2 | 6

  • Board-to-Board Configuration  Co-Planar | Mezzanine (Stacking) | Orthogonal | Parallel

  • Number of Rows  2 | 6

Electrical Characteristics

  • Dielectric Withstanding Voltage (Max) (Vrms) 500

  • Contact Resistance (mΩ) 25

  • Dielectric Withstanding Voltage (Max) (VACrms) 500

  • Operating Voltage (VDC) 10

Body Features

  • Connector Profile  High | Low | Standard

  • Primary Product Color  Black | Blue

  • Primary Product Color  Black | Blue

Contact Features

  • Contact Mating Area Length (mm) 3.25 | 4

  • Contact Mating Area Length (in) .128 | .157

  • PCB Contact Termination Area Plating Material Thickness  4 – 6 µm [ 157.48 – 236.22 µin ]

  • PCB Contact Termination Area Plating Material Finish  Matte

  • Mating Tab Thickness  .3 mm [ .012 in ]

  • Contact Base Material  Copper Alloy

  • Contact Layout  Matrix

  • Mating Tab Width  .42 mm [ .016 in ]

  • Contact Shape & Form  Dual Beam | Rectangular

  • Contact Mating Area Plating Material  Gold (Au)

  • Contact Type  Pin | Receptacle | Socket | Tab

  • Contact Mating Area Plating Material  Gold (Au)

  • Contact Current Rating (Max) (A) 1 | 1.1 | 1.3 | 1.6 | 1.7

  • Contact Type  Pin | Receptacle | Socket | Tab

  • PCB Contact Termination Area Plating Material  Tin

Termination Features

  • Termination Post & Tail Length  4 mm [ .158 in ]

  • Termination Method to PCB  Surface Mount

  • Termination Method to PCB  Surface Mount

Mechanical Attachment

  • Mounting Alignment Feature Length  .75 mm [ .029 in ]

  • PCB Mount Retention Type  Location Peg

  • PCB Mount Alignment Type  Locating Posts

  • Mating Retention Type  Friction Lock | Locking

  • PCB Mount Alignment  With | Without

  • Mating Alignment Type  Polarization

  • Mating Retention  With

  • PCB Mount Alignment  With | Without

  • Connector Mounting Type  Board Mount

  • Mating Alignment  With

  • PCB Mount Retention  With | Without

  • PCB Mount Retention  With | Without

Housing Features

  • Mating Entry Location  Side | Top

  • Centerline (Pitch)  1.27 mm [ .05 in ]

  • Housing Material  Liquid Crystal Polymer (LCP)

  • Housing Material  Liquid Crystal Polymer (LCP)

Dimensions

  • Connector Length (mm) 12.7 | 15.24 | 17.78 | 21.6 | 25.4 | 30.48 | 36.83 | 48.26 | 55.88

  • Connector Length (in) .5 | .6 | .7 | .85 | 1 | 1.2 | 1.45 | 1.9 | 2.2

  • Profile Height from PCB (mm) 3.85 | 4.25 | 6.25 | 6.75 | 8.25 | 9.05 | 9.85 | 13.65

  • Profile Height from PCB (in) .151 | .152 | .167 | .246 | .266 | .325 | .356 | .388 | .537

  • Connector Height (mm) 3.85 | 4.2 | 4.25 | 6.25 | 6.75 | 8.25 | 9.05 | 9.85 | 13.65

  • Connector Height (in) .151 | .152 | .165 | .167 | .246 | .266 | .325 | .356 | .388 | .537

  • Connector Width (mm) 6.25 | 7 | 7.2 | 9.6 | 9.8 | 10

  • Connector Width (in) .275 | .276 | .283 | .378 | .394

  • Row-to-Row Spacing  1.27 mm [ .05 in ]

  • Stack Height (mm) 1.75 | 3.25 | 4.85 | 6.25 | 9.05 | 13.65

  • Stack Height (in) .069 | .128 | .191 | .246 | .356 | .537

Usage Conditions

  • Operating Temperature (Max)  125 °C [ 257 °F ]

  • Operating Temperature Range (°C) -55 – 125 | -40 – 125

  • Operating Temperature Range (°F) -87 – 257 | -67 – 257 | -40 – 257

Operation/Application

  • Shielded  No

  • Circuit Application  Power & Signal

Industry Standards

  • Industry Standard  IEC | ISO

  • Compatible With Approved Standards Products  UL | UL E84703

  • Compatible With Agency/Standards Products  DIN | IEC | UL

  • UL Flammability Rating  UL 94V-0

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Reel Diameter (mm) 300 | 330

  • Packaging Reel Diameter (in) 12.99

  • Packaging Quantity  160 | 170 | 250 | 280 | 560

  • Packaging Method  Reel | Tape & Reel | Taped & Reeled

  • Packaging Method  Reel | Tape & Reel | Taped & Reeled
