Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

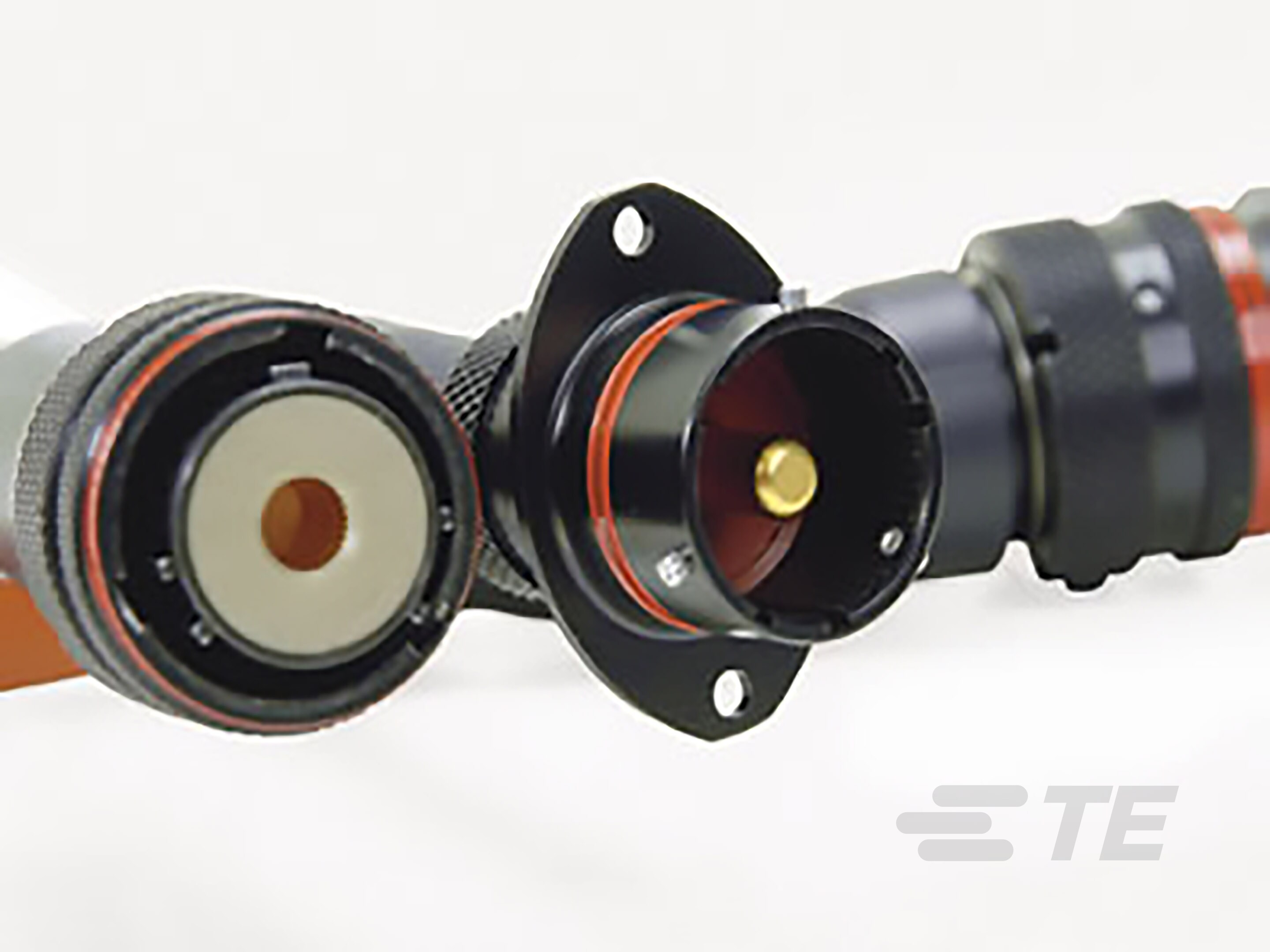

• Connector Product Type : Connector Assembly

• Assembly Type : Electrical Connector

• Connector System : Wire-to-Wire

• Circular Connector Type : Plug

• Shell Type : Metal

• Factory Installed Backshell : No

• Number of Positions : 5

• Contacts Preloaded : No

• Entry Style : Rear Insertion

• Feedthrough Type : No

• Shell Plating Material : Black Zinc

• Shell Base Material : Aluminum Alloy

• Circular Connector Insulation Material Type : Hard Dielectric/Silicone

• Hermetically Sealed : No

• Contact Quantity (Size 20) : 3

• Contact Layout Arrangement : 22 – 24320

• Circular Connector Contact Type : Pin

• Mating Alignment : With

• Mating Retention Type : Coupling Ring

• Polarization Code : N

• Mating Alignment Type : Keyed

• Mating Retention : With

• Circular Connector Shell Size : 22

• Assembly Length (mm): 33.5

• Fluid Resistance : Immersion

• IP Water Sealing Level : 7

• IP Dust Sealing Level : 6

• Operating Temperature Range : -55 – 150 °C [ -67 – 302 °F ]

• Durability Rating (Cycles): 500
