ANT-915-CPA

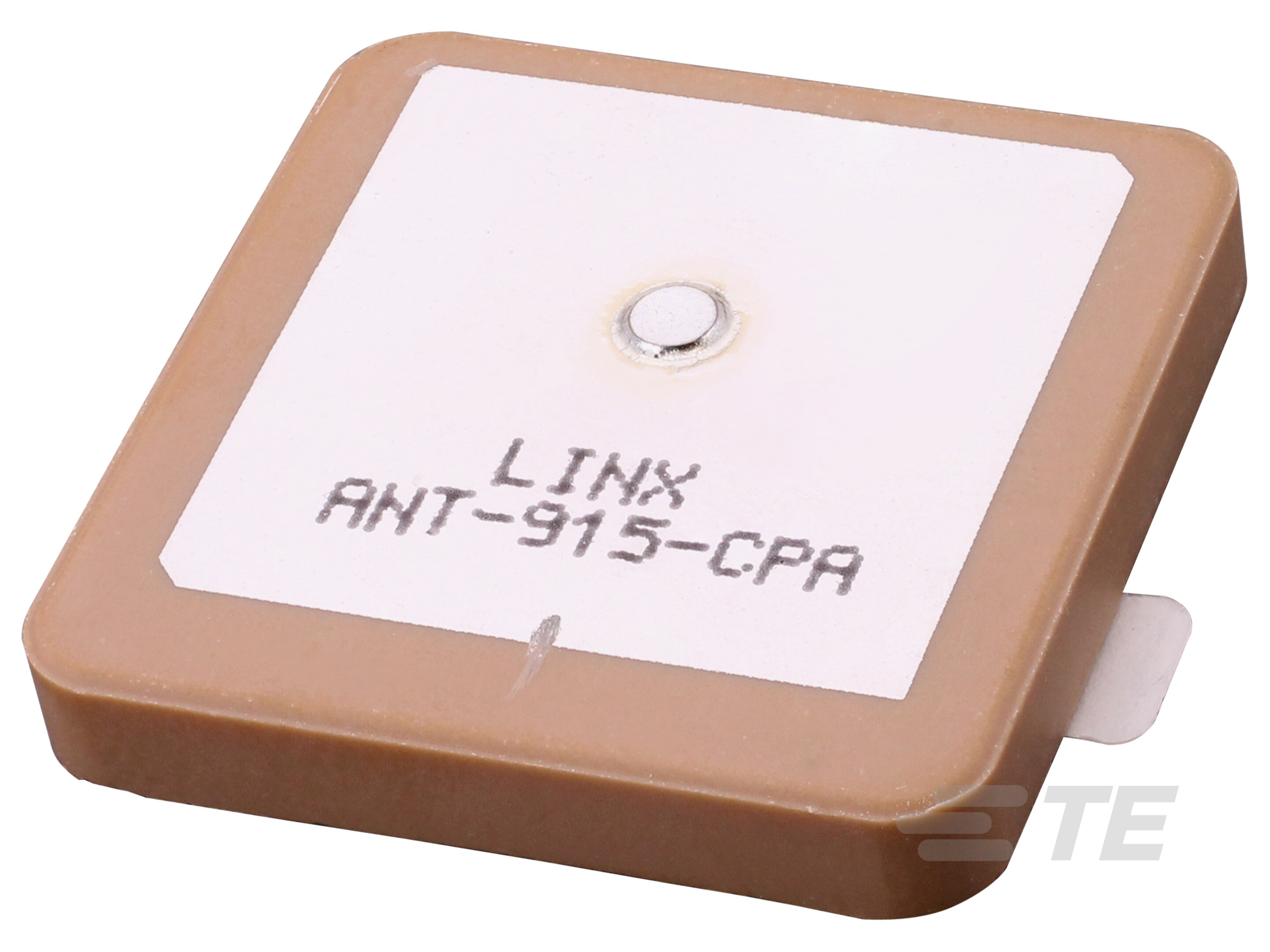

Patch Antenna, Single Band, LPWAN / LoRaWAN, Internal/Embedded Mount, Through-Hole/Tab Mount, Solder, Directional, Single Port, 0 < 3 dBi Peak Gain
ANT-915-CPA
Patch Antenna, Single Band, LPWAN / LoRaWAN, Internal/Embedded Mount, Through-Hole/Tab Mount, Solder, Directional, Single Port, 0 < 3 dBi Peak Gain
- TE Internal #: ANT-915-CPA
- TE Internal Description: Antenna CER Patch 40mm Sq 915MHz Adh THM
-
Antenna Type : Patch
-
Band Type : Single Band
-
Primary Application : LoRaWAN, LPWAN
-
Wireless Application : LoRaWAN, LPWAN, Wi-Fi
-
Mounting Location : Internal/Embedded
Documents
Product Drawings
- Antenna 40 mm square RHCP 915 MHz Ceramic Patch ENG_CD_C-ANT-915-CPA_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_ANT-915-CPA_A.pdf 3D
- Customer View Model ENG_CVM_CVM_ANT-915-CPA_A.2d_dxf.zip English
- ENG_CVM_CVM_ANT-915-CPA_A.3d_igs.zip English
- ENG_CVM_CVM_ANT-915-CPA_A.3d_stp.zip English
Datasheets & Catalog Pages
- 915 MHz Directional Embedded Ceramic Patch Antenna ENG_DS_ant-915-cpa-ds_A.pdf English
