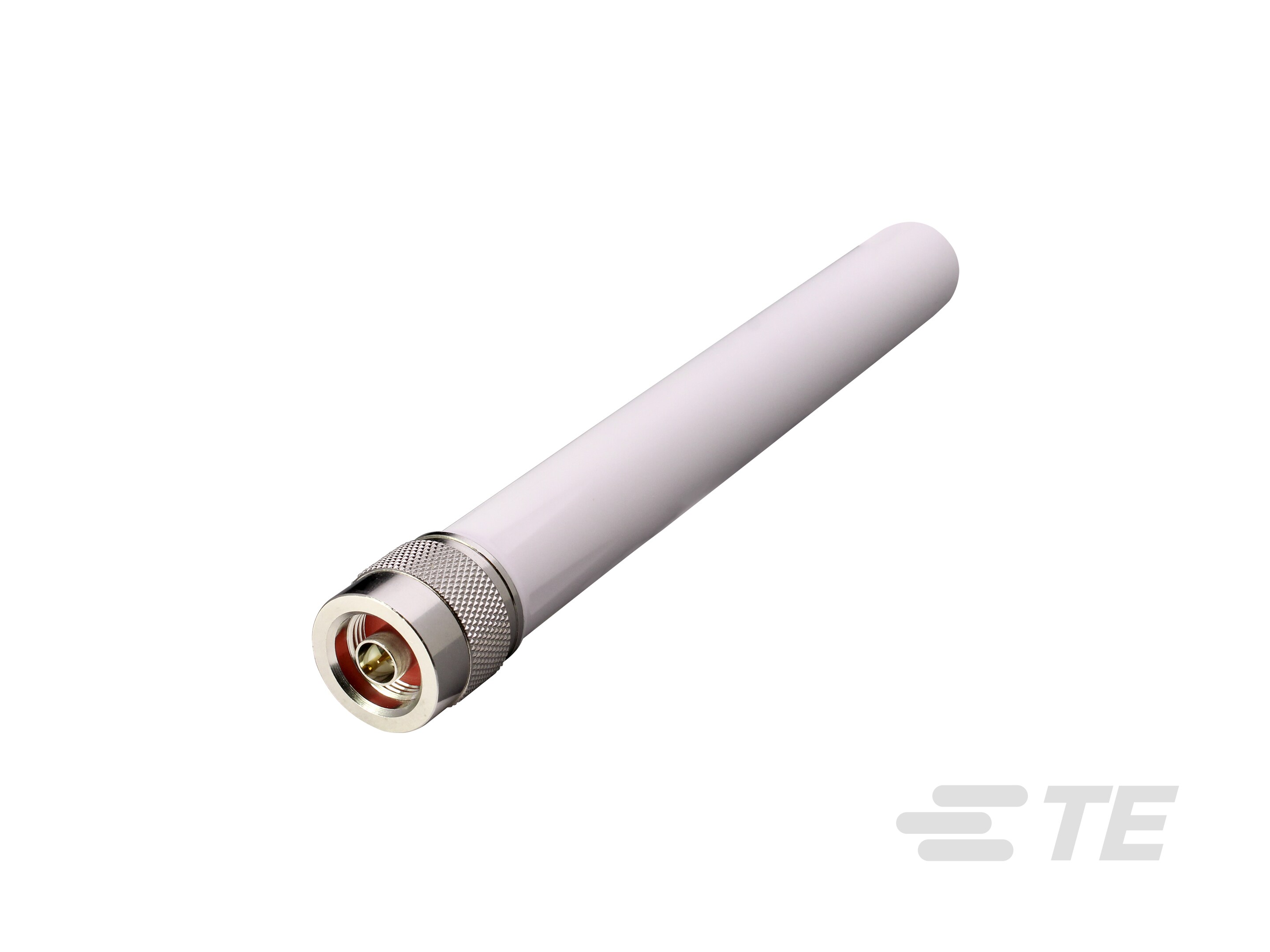

ANT-5GW-IPW1-NP
Baton/Stick Antenna, Wide Band, 5G / Cellular / LTE, External Mount, Stud/Screw/Lug Mount, N-type, Omnidirectional, Single Port, > 6 dBi Peak Gain
ANT-5GW-IPW1-NP
Baton/Stick Antenna, Wide Band, 5G / Cellular / LTE, External Mount, Stud/Screw/Lug Mount, N-type, Omnidirectional, Single Port, > 6 dBi Peak Gain
- TE Internal #: ANT-5GW-IPW1-NP
- TE Internal Description: Antenna Whip 5G WB Cell IP67 N Plug
-
Antenna Type : Baton/Stick
-
Band Type : Wide Band
-
Primary Application : 5G, Cellular, LTE
-
Wireless Application : 5G, Cat-M/NB-IoT, Cellular, LTE
-
Mounting Location : External
Documents
Product Drawings
- ANTENNA MULTI-BAND WHITE OUTDOOR IPX7 ENG_CD_C-ANT-5GW-IPW1-NP_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_ANT-5GW-IPW1-NP_A.pdf 3D
- Customer View Model ENG_CVM_CVM_ANT-5GW-IPW1-NP_A.2d_dxf.zip English
- ENG_CVM_CVM_ANT-5GW-IPW1-NP_A.3d_igs.zip English
- ENG_CVM_CVM_ANT-5GW-IPW1-NP_A.3d_stp.zip English
Datasheets & Catalog Pages
- Outdoor Cellular Sub-6 5G Antenna ENG_DS_ant-5gw-ipw1-np-ds_A.pdf English
