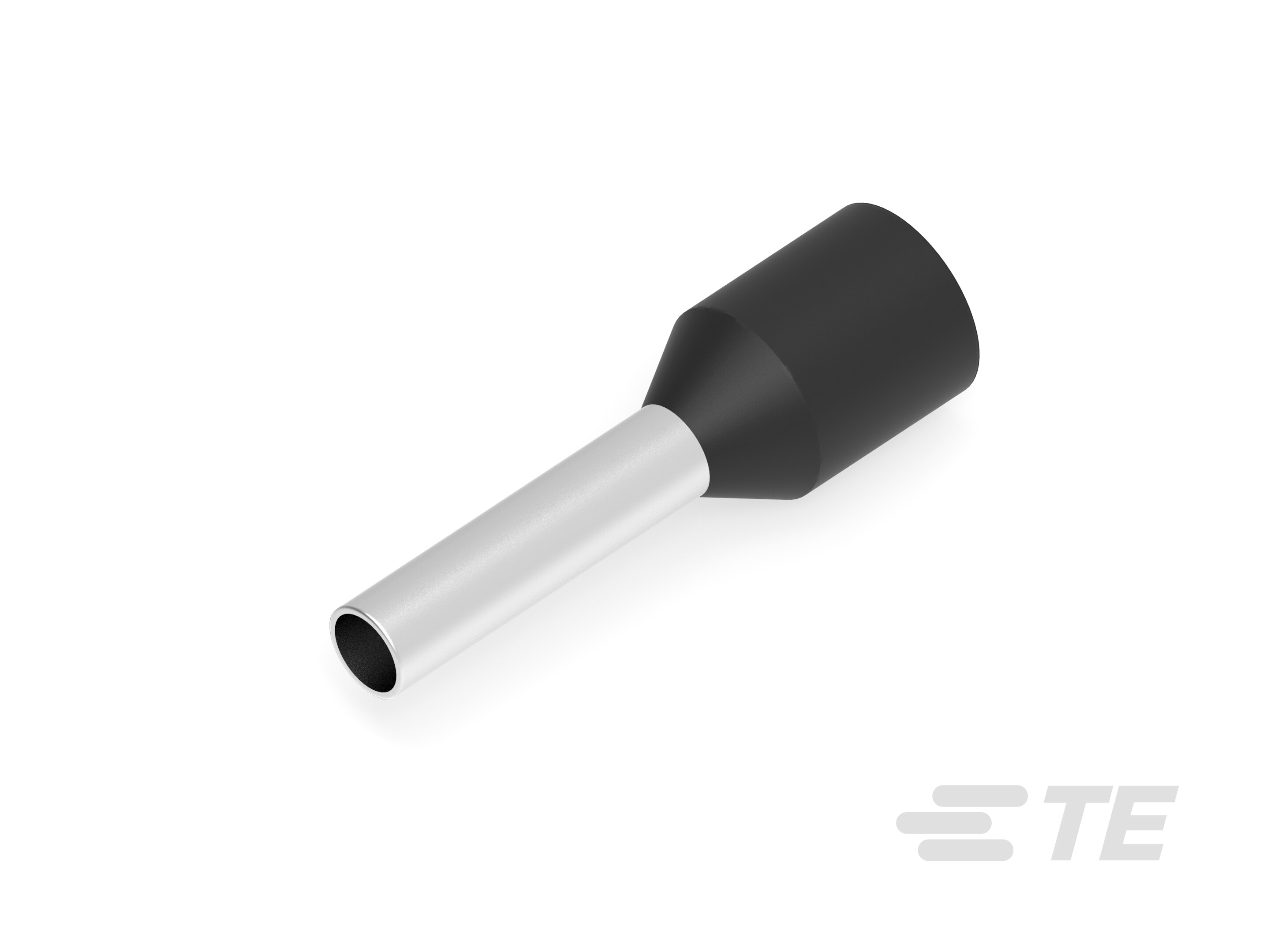

966903-2
Ferrule, 16 – 15 AWG, 1.25 – 1.5 mm² Wire, 2583 – 3257 CMA, Closed Barrel, Tin Plating, 14 mm [.551 in] Length, Strip, Discrete Wire, Stranded Wire
966903-2
Ferrule, 16 – 15 AWG, 1.25 – 1.5 mm² Wire, 2583 – 3257 CMA, Closed Barrel, Tin Plating, 14 mm [.551 in] Length, Strip, Discrete Wire, Stranded Wire
- TE Internal #: 966903-2
- TE Internal Description: FER,WIRE,PL SLV,1.50/16,L8,BLACK,REEL
-
Crimp Wire Terminal Type : Ferrule
-
Compatible Insulation Diameter Range : 3.4 mm [ .13 in ]
-
Wire Size (AWG): 16 – 15
-
Wire Size (mm²): 1.25 – 1.5
-
Wire Size (CMA): 2583 – 3257
Documents
Product Drawings
- WIRE FERRULE WITH PLASTIC SLEEVE, SINGLE CONDUCTOR, DIN 46228 PART 4, ENG_CD_966903_E.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_966903-2_D.pdf 3D
- Customer View Model ENG_CVM_CVM_966903-2_D.2d_dxf.zip English
- ENG_CVM_CVM_966903-2_D.3d_igs.zip English
- ENG_CVM_CVM_966903-2_D.3d_stp.zip English
Datasheets & Catalog Pages
- Wire Ferrules ENG_CS_1654379_Wire_Ferrules_0911.pdf English
- WIRE END FERRULES ENG_DS_6-1773984-8_2011.pdf English
