This product is not currently available. For more information, including distributor inventory, please contact us.

966144-7

Active

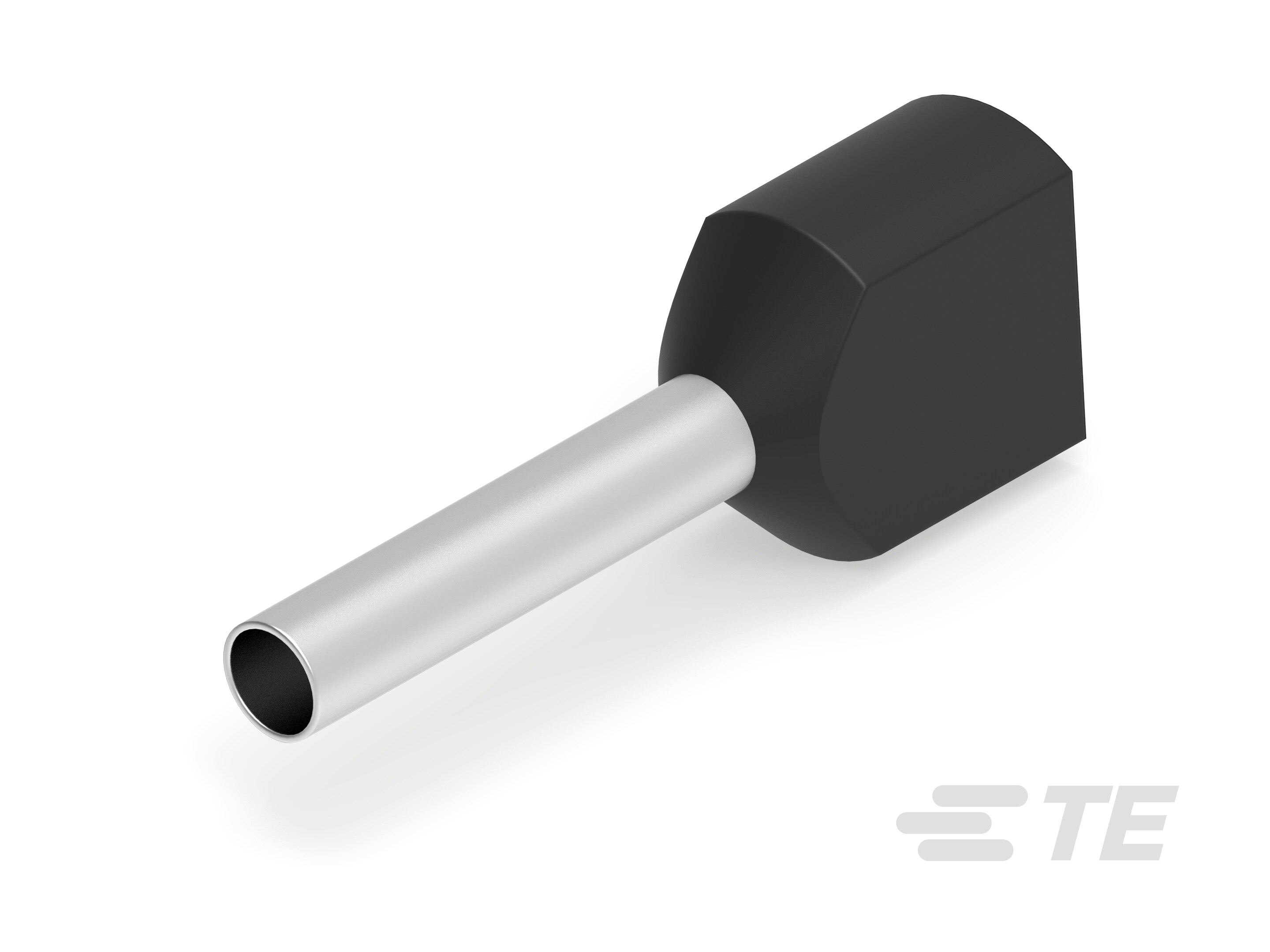

Ferrule, 16 AWG, 1.5 mm² Wire, 2583 CMA, Closed Barrel, Tin Plating, 20 mm [.787 in] Length, Bag, Discrete Wire, Stranded Wire, Partially Insulated

966144-7

Active

Ferrule, 16 AWG, 1.5 mm² Wire, 2583 CMA, Closed Barrel, Tin Plating, 20 mm [.787 in] Length, Bag, Discrete Wire, Stranded Wire, Partially Insulated

TE Internal #: 966144-7
TE Internal Description: FER,WIRE,DBL,PL SLV,1.50/16,L12,BLACK,LP

Crimp Wire Terminal Type : Ferrule
Compatible Insulation Diameter Range : 3.2 mm [ .125 in ]
Wire Size (AWG): 16
Wire Size (mm²): 1.5
Wire Size (CMA): 2583

See All Features

More Less

Get Free Samples
Compatible Parts & Tooling

Documents

Product Drawings

WIRE FERRULE WITH PLASTIC SLEEVE, DOUBLE CONDUCTOR, LOOSE PIECE ENG_CD_966144_B9.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Sealable : No
Terminal Features : Double Wire
Compatible With Discrete Wire Type : Stranded

Configuration Features

Compatible With Wire & Cable Type : Discrete Wire

Body Features

Primary Product Color : Black

Contact Features

Contact Mating Area Length : 10 mm [ .39 in ]
Crimp Wire Terminal Type : Ferrule
Barrel Type : Closed
Terminal Plating Material : Tin
Terminal Orientation : Straight

Mechanical Attachment

Wire Insulation Support : Without

Dimensions

2-Wire Size (AWG): 16
2-Wire Size (mm²): 1.5
Strip Length : 16 mm [ .623 in ]
Compatible Insulation Diameter Range : 3.2 mm [ .125 in ]
Wire Size (AWG): 16
Wire Size (mm²): 1.5
Wire Size (CMA): 2583
Terminal Material Thickness : .15 mm [ .005 in ]
Overall Product Length : 20 mm [ .787 in ]

966144-7

Ferrule, 16 AWG, 1.5 mm² Wire, 2583 CMA, Closed Barrel, Tin Plating, 20 mm [.787 in] Length, Bag, Discrete Wire, Stranded Wire, Partially Insulated

966144-7

Ferrule, 16 AWG, 1.5 mm² Wire, 2583 CMA, Closed Barrel, Tin Plating, 20 mm [.787 in] Length, Bag, Discrete Wire, Stranded Wire, Partially Insulated

Crimp Wire Terminal Type : Ferrule

Compatible Insulation Diameter Range : 3.2 mm [ .125 in ]

Wire Size (AWG): 16

Wire Size (mm²): 1.5

Wire Size (CMA): 2583

Documents

Product Drawings

CAD Files

Datasheets & Catalog Pages

Agency Approvals

Product Change Notification

Features

Product Type Features

Sealable : No

Terminal Features : Double Wire

Compatible With Discrete Wire Type : Stranded

Configuration Features

Compatible With Wire & Cable Type : Discrete Wire

Body Features

Primary Product Color : Black

Contact Features

Contact Mating Area Length : 10 mm [ .39 in ]

Crimp Wire Terminal Type : Ferrule

Barrel Type : Closed

Terminal Plating Material : Tin

Terminal Orientation : Straight

Mechanical Attachment

Wire Insulation Support : Without

Dimensions

2-Wire Size (AWG): 16

2-Wire Size (mm²): 1.5

Strip Length : 16 mm [ .623 in ]

Compatible Insulation Diameter Range : 3.2 mm [ .125 in ]

Wire Size (AWG): 16

Wire Size (mm²): 1.5

Wire Size (CMA): 2583

Terminal Material Thickness : .15 mm [ .005 in ]

Overall Product Length : 20 mm [ .787 in ]

Usage Conditions

Insulation Option : Partially Insulated

Packaging Features

Packaging Quantity : 500

Packaging Method : Bag
