928949-3

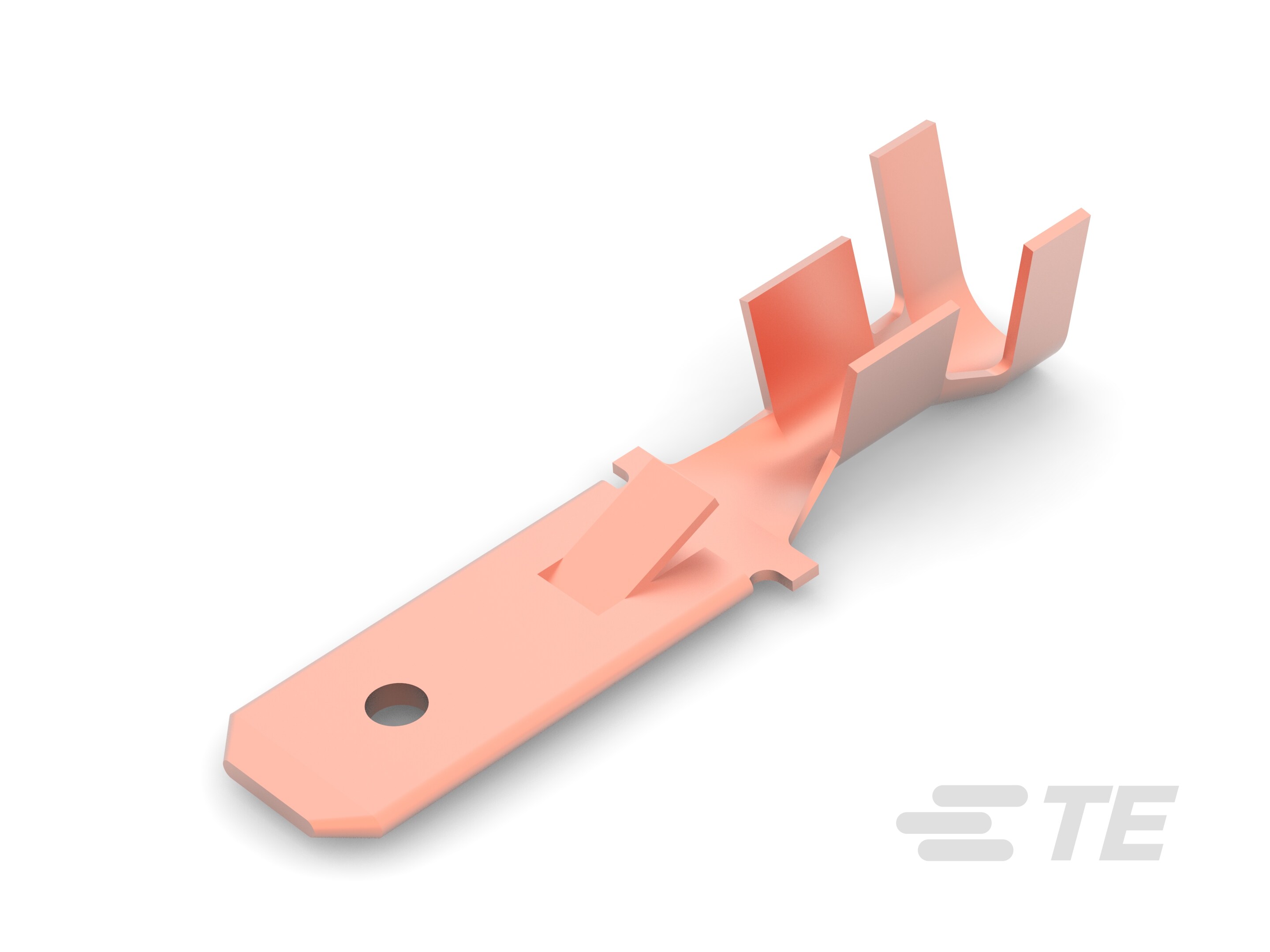

Quick Disconnect Tab, 13 – 11 AWG, 2.62 – 4.17 mm² Wire, 6.35 mm [.25 in] Tab Width, Straight, Phosphor Bronze, Unplated Plating, FASTIN-FASTON 250
928949-3
Quick Disconnect Tab, 13 – 11 AWG, 2.62 – 4.17 mm² Wire, 6.35 mm [.25 in] Tab Width, Straight, Phosphor Bronze, Unplated Plating, FASTIN-FASTON 250
-
- FASTIN-FASTON
- FASTIN-FASTON 250
- TE Internal #: 928949-3
- TE Internal Description: FF 250 TAB 2.5-4.0 MM2 0.38 X 16.3
-
Quick Disconnect Terminal Type : Tab
-
Wire Size (AWG): 13 – 11
-
Wire Size (mm²): 2.62 – 4.17
-
Mating Tab Width : 6.35 mm [ .25 in ]
-
Mating Tab Thickness : .81 mm [ .032 in ]
Documents
Product Drawings
- 6.3 Fastin -on Flachstecker 6.3 FASTIN -ON TAB nach / ACCORDING DIN 46343 ENG_CD_928949_E3.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_928949-3_E.pdf 3D
- Customer View Model ENG_CVM_CVM_928949-3_E.2d_dxf.zip English
- ENG_CVM_CVM_928949-3_E.3d_igs.zip English
- ENG_CVM_CVM_928949-3_E.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-2065_A.pdf English
