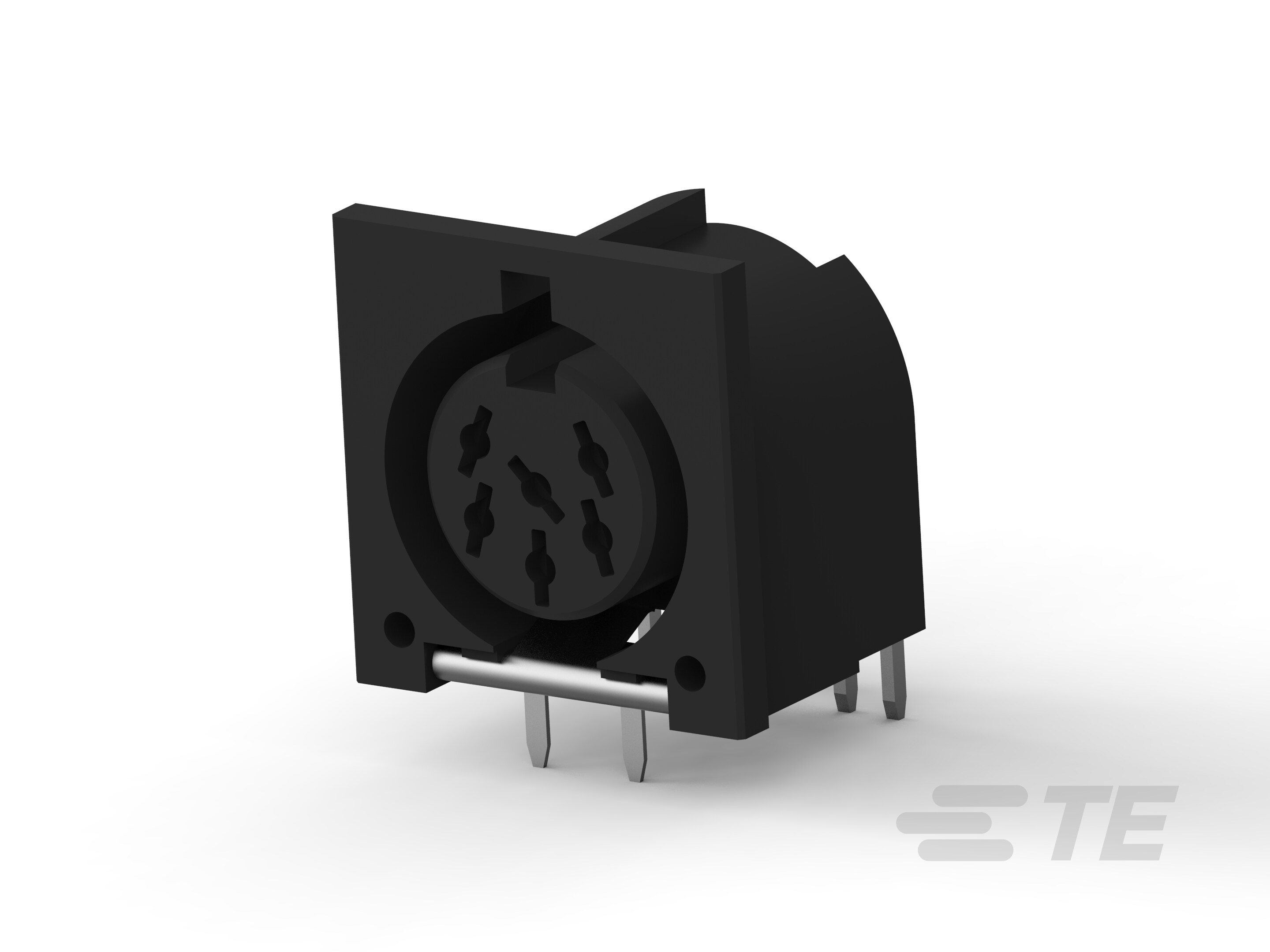

Name: 6 CIRC DIN RCPT,GRND CLIP LEAD
Brand: TE Connectivity (TE)

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Circular DIN Connector Type : Circular DIN
Connector System : Wire-to-Board, Wire-to-Panel
Connector & Contact Terminates To : Printed Circuit Board

Configuration Features

PCB Mount Orientation : Right Angle
Number of Positions : 6
Connector Contact Load Condition : Selectively Loaded

Electrical Characteristics

Operating Voltage (VAC): 250

Body Features

Shield Plating Thickness (µin): 2.54, 100
Shield Underplate Thickness : 1.27 µm [ 50 µin ]
Primary Product Color : Black
Shield Underplate Material : Nickel
Shield Material : Brass

Contact Features

PCB Contact Termination Area Plating Material : Tin
Contact Base Material : Brass
Contact Mating Area Plating Material : Tin (Sn)
Contact Layout : Staggered
PCB Contact Termination Area Plating Material Thickness : 2.54 µm [ 100 µin ]
Contact Shape & Form : Tuning Fork
Contact Mating Area Plating Material Thickness : 2.54 µm [ 100 µin ]
Contact Current Rating (Max) (A): 7.5

Termination Features

Termination Post & Tail Length : 3.56 mm [ .14 in ]
Termination Method to PCB : Through Hole - Solder

Mechanical Attachment

PCB Mount Alignment Type : Solder Tail Layout
PCB Mount Alignment : With
Mating Alignment : With
Mating Retention : Without
Panel Mount Feature Type : Self-Tapping Screw
Panel Mount Feature : With
Mating Alignment Type : Keyed
PCB Mount Retention : With
PCB Mount Retention Type : Kinked Legs
Connector Mounting Type : Panel Mount

Housing Features

Housing Material : Nylon
Centerline (Pitch) : 2.49 mm [ .1 in ]

Dimensions

Connector Height : 20.83 mm [ .82 in ]
Product Length : 20.07 mm [ .79 in ]
Product Width : 18.29 mm [ .72 in ]
PCB Thickness (Recommended) (mm): 2.36

Usage Conditions

Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

Shielded : Yes
Circuit Application : Signal

Industry Standards

Compatible With Approved Standards Products : CSA LR3507, UL E28476
UL Flammability Rating : UL 94V-0

Packaging Features

Packaging Method : Tube
Packaging Quantity : 100
