PKS1104B1/4

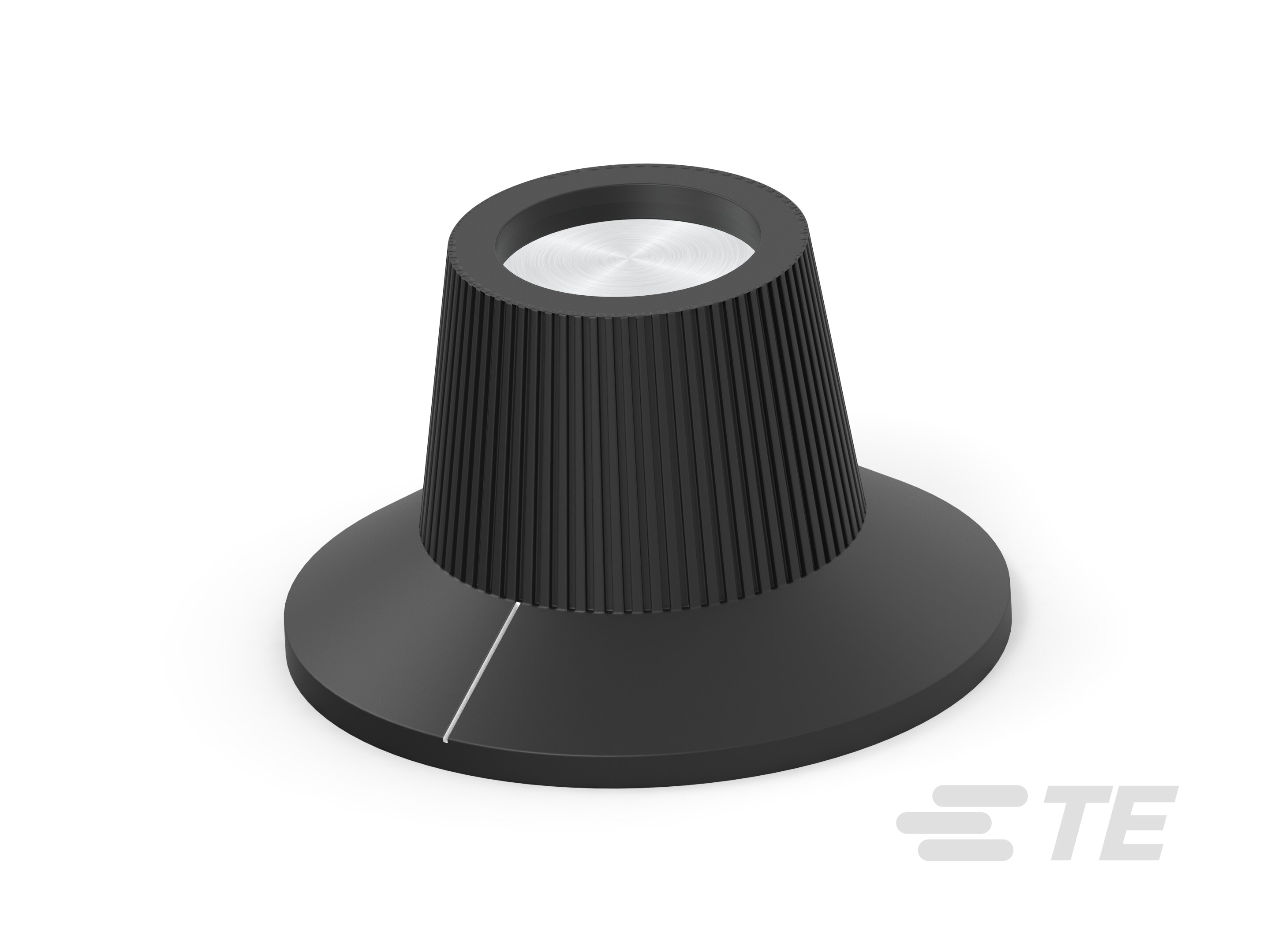

Phenolic, Straight Knurl Knob Design, 6.35 mm [.25 in] Shaft, 28.5 mm [1.122 in] Diameter, Black, Line Indicator, Alcoswitch PKS, Switch Knobs
PKS1104B1/4
Phenolic, Straight Knurl Knob Design, 6.35 mm [.25 in] Shaft, 28.5 mm [1.122 in] Diameter, Black, Line Indicator, Alcoswitch PKS, Switch Knobs
-
- Alcoswitch
- Alcoswitch PKS
- TE Internal #: 9-1437624-5
- TE Internal Description: PKS1104B1/4 KNOB
-
Primary Product Material : Phenolic
-
Knob Design : Straight Knurl
-
Shaft Size : 6.35 mm [ .25 in ]
-
Product Diameter : 28.5 mm [ 1.122 in ]
-
Primary Product Color : Black
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_9-1437624-5_A_c-9-1437624-5-a-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_9-1437624-5_A_c-9-1437624-5-a.2d_dxf.zip English
- ENG_CVM_CVM_9-1437624-5_A_c-9-1437624-5-a.3d_igs.zip English
- ENG_CVM_CVM_9-1437624-5_A_c-9-1437624-5-a.3d_stp.zip English
Datasheets & Catalog Pages
- SWITCHES_CORE_PROGRAM_CATALOG ENG_CS_1308111-1_SWITCHES_CORE_PROGRAM_CATALOG_0308.pdf English
