PKS1103B101/4

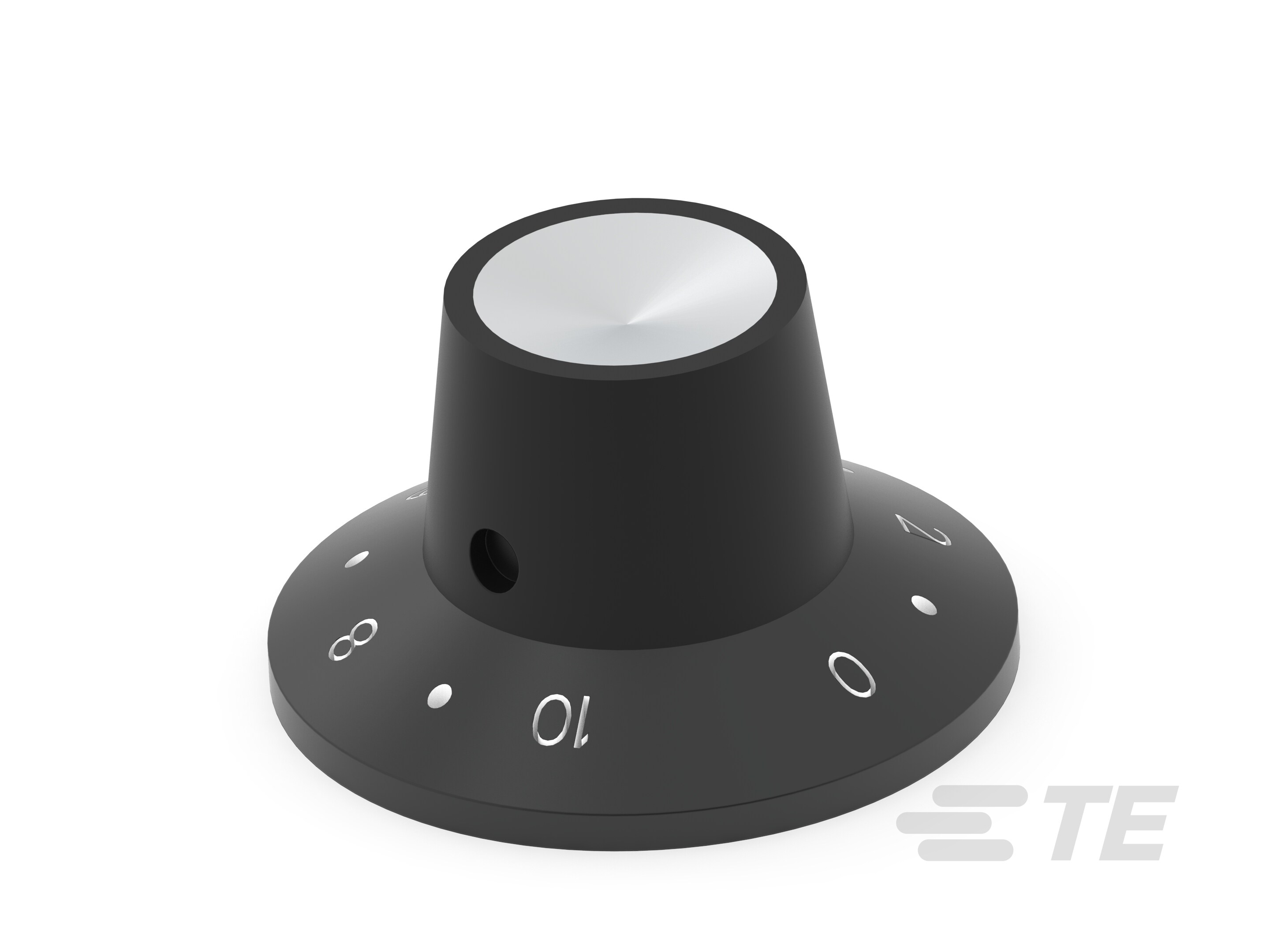

Phenolic, Straight Knurl Knob Design, 6.35 mm [.25 in] Shaft, 29.7 mm [1.17 in] Diameter, Black, 0-10 Numerals Indicator, Alcoswitch PKS, Switch Knobs
PKS1103B101/4
Phenolic, Straight Knurl Knob Design, 6.35 mm [.25 in] Shaft, 29.7 mm [1.17 in] Diameter, Black, 0-10 Numerals Indicator, Alcoswitch PKS, Switch Knobs
-
- Alcoswitch
- Alcoswitch PKS
- TE Internal #: 9-1437624-4
- TE Internal Description: PKS1103B101/4=KNOB PLSTC AL/SK
-
Primary Product Material : Phenolic
-
Knob Design : Straight Knurl
-
Shaft Size : 6.35 mm [ .25 in ]
-
Product Diameter : 29.7 mm [ 1.17 in ]
-
Primary Product Color : Black
Documents
Product Drawings
- KNOB, PLASTIC PKS1103B101/4 English
- KNOB, PLASTIC PKS1103B101/4 ENG_CD_9-1437624-4_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_9-1437624-4_A_c-9-1437624-4-a-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_9-1437624-4_A_c-9-1437624-4-a.2d_dxf.zip English
- ENG_CVM_CVM_9-1437624-4_A_c-9-1437624-4-a.3d_igs.zip English
- ENG_CVM_CVM_9-1437624-4_A_c-9-1437624-4-a.3d_stp.zip English
Datasheets & Catalog Pages
- SWITCHES_CORE_PROGRAM_CATALOG ENG_CS_1308111-1_SWITCHES_CORE_PROGRAM_CATALOG_0308.pdf English
