881623-9

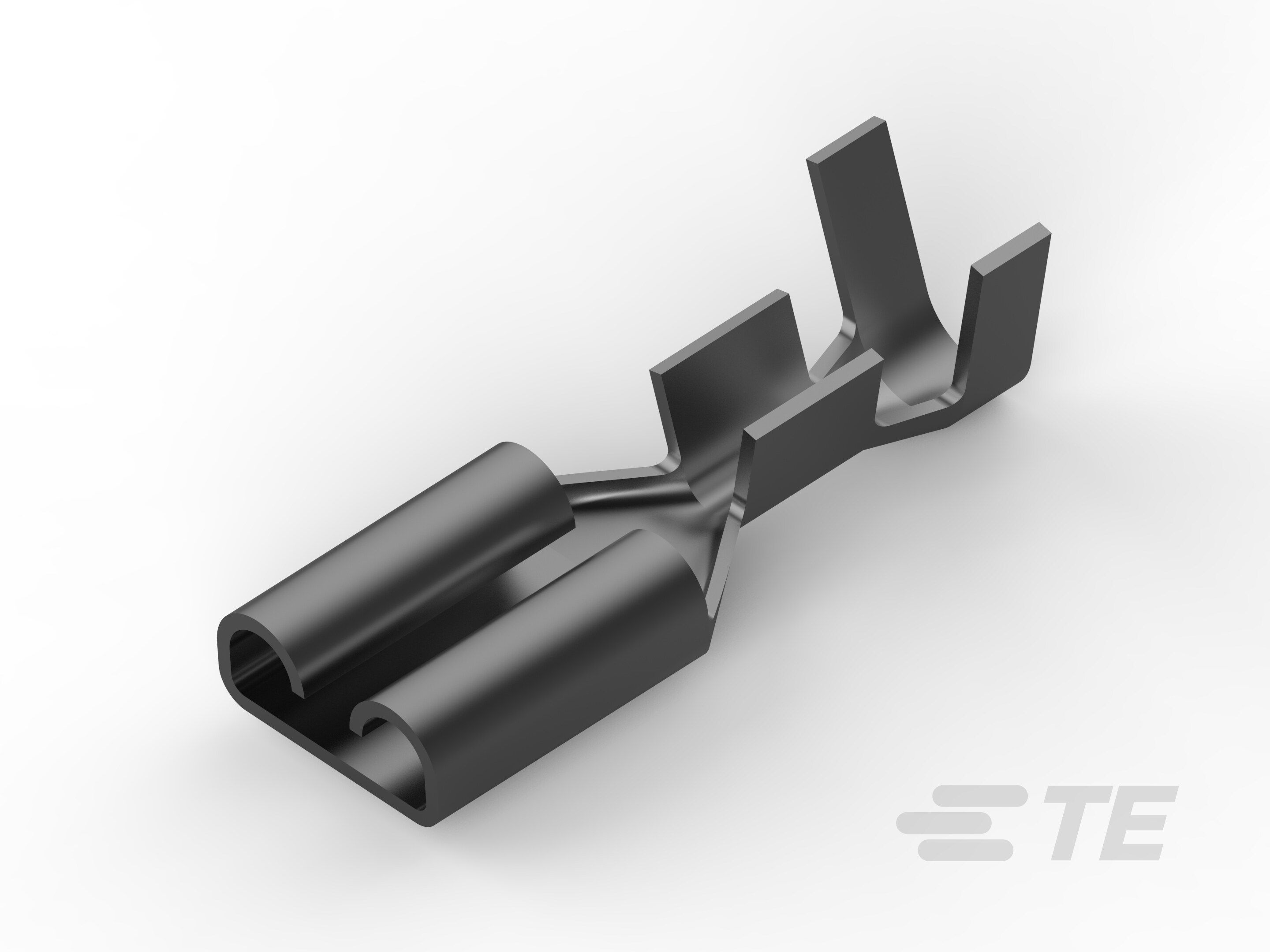

Quick Disconnect Receptacle, 20 – 17 AWG, .51 – 1.03 mm² Wire, 4.75 mm [.187 in] Tab Width, Straight, Brass, Tin Plating, Strip/Reel, FASTON 187
881623-9
Quick Disconnect Receptacle, 20 – 17 AWG, .51 – 1.03 mm² Wire, 4.75 mm [.187 in] Tab Width, Straight, Brass, Tin Plating, Strip/Reel, FASTON 187
-
- FASTON
- FASTON 187
- TE Internal #: 881623-9
- TE Internal Description: 187 FASTON REC 20-17 AWG TPBR
-
Quick Disconnect Terminal Type : Receptacle
-
Wire Size (AWG): 20 – 17
-
Wire Size (mm²): .51 – 1.03
-
Mating Tab Width : 4.75 mm [ .187 in ]
-
Mating Tab Thickness : .51 mm [ .02 in ]
Documents
Product Drawings
- .187 SERIES FASTON REC. ENG_CD_881623_J.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_881623-9_M3.pdf 3D
- Customer View Model ENG_CVM_CVM_881623-9_M3.2d_dxf.zip English
- ENG_CVM_CVM_881623-9_M3.3d_igs.zip English
- ENG_CVM_CVM_881623-9_M3.3d_stp.zip English
Product Specifications
- Application Specification S_114-3118_A.tif English
- S_114-3118_A.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_CERT_E66717_19820128_C1_A6.pdf English
Product And Material Test Reports
- .187 FASTON REC. POR_PMTR_RL120912_A.pdf Portuguese
