RT8122-6-10M0

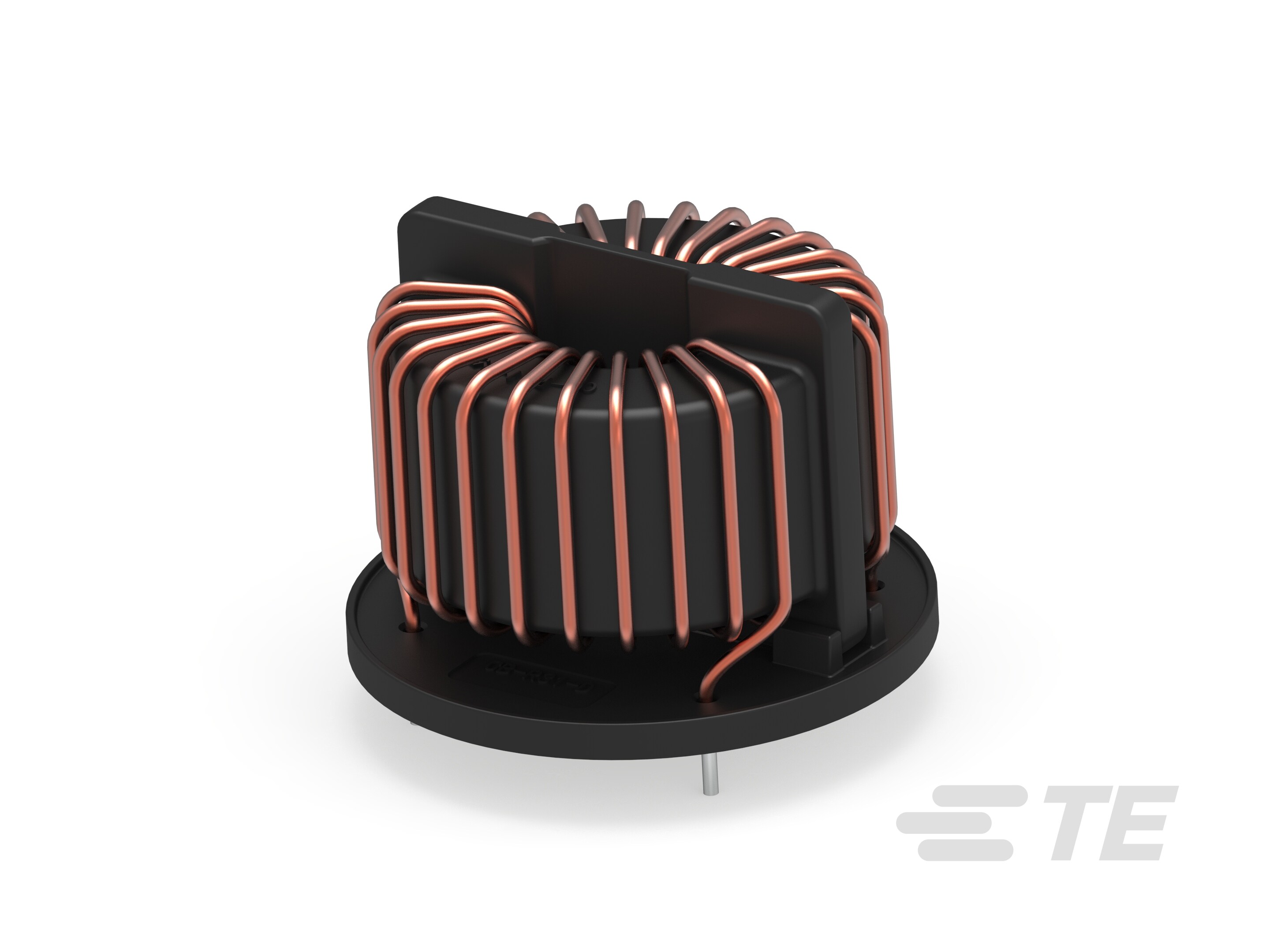

300 VDC, 6 A, PCB Terminal, PD2 Pollution Degree, IP00, Horizontal, UL 94V-0, Board Mount, Schaffner RT-Series, EMC Chokes
RT8122-6-10M0
300 VDC, 6 A, PCB Terminal, PD2 Pollution Degree, IP00, Horizontal, UL 94V-0, Board Mount, Schaffner RT-Series, EMC Chokes
-
- Schaffner
- Schaffner RT-Series
- TE Internal #: 816955-SF
- TE Internal Description: RT8122-6-10M0
- All RT (61)
-
Operating Voltage (Max) (VDC): 300
-
Current Rating (Max) (A): 6
-
Input Termination Type : PCB Terminal
-
Output Termination Type : PCB Terminal
-
Pollution Degree : PD2
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_816955-SF_B.pdf 3D
- Customer View Model ENG_CVM_CVM_816955-SF_B.3d_igs.zip English
- ENG_CVM_CVM_816955-SF_B.2d_dxf.zip English
- ENG_CVM_CVM_816955-SF_B.3d_stp.zip English
Datasheets & Catalog Pages
- Current Compensated Chokes - Ferrite Core ENG_DS_RT_Series_Ferrite_A.pdf English
Type of Software
- Software ENG_SW_LTSpice_Models_A.zip
