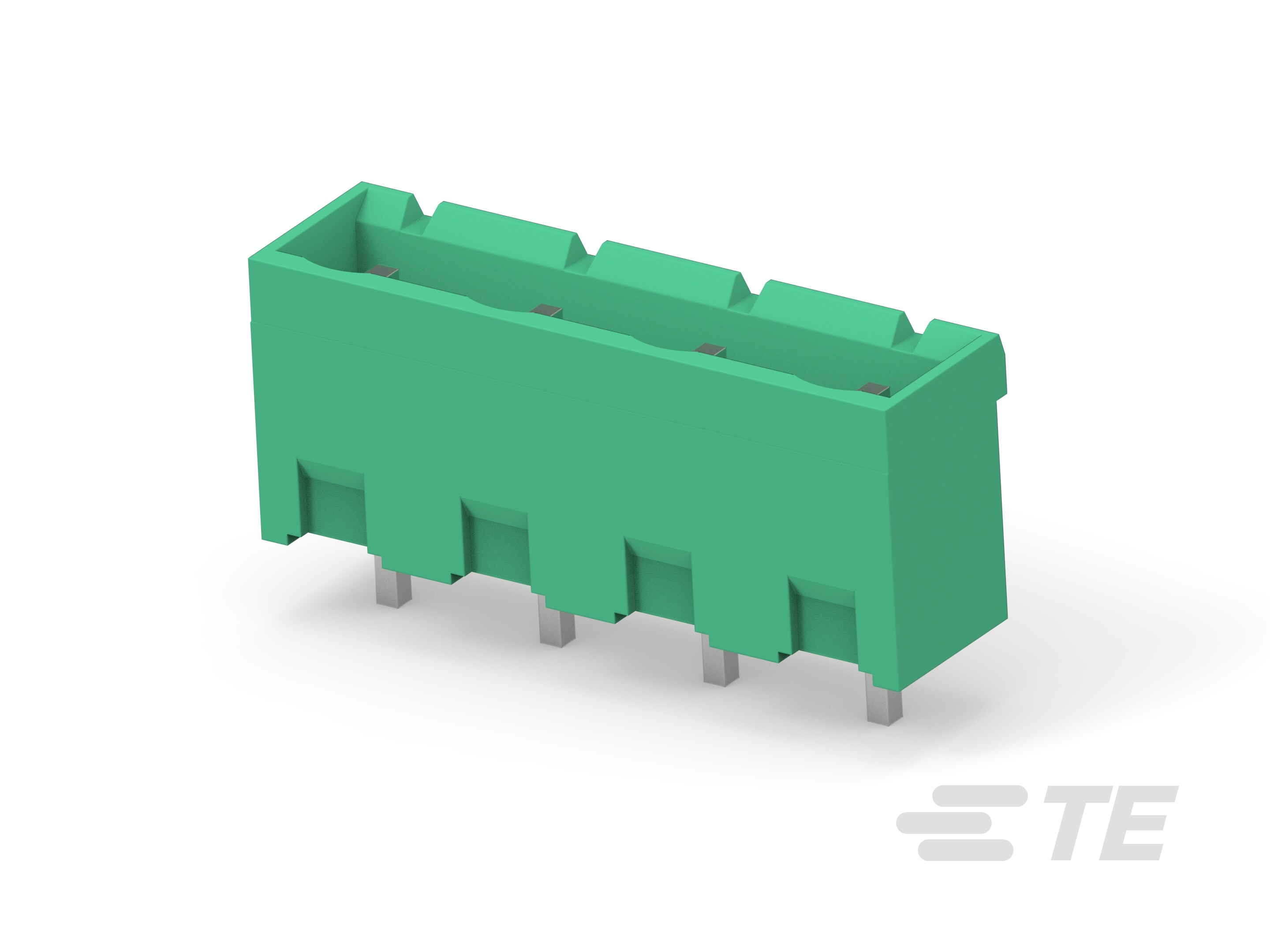

Header, Wire-to-Board, 4 Position, 7.62 mm [.3 in] Centerline, 1 Row, Operating Voltage 300 VAC, Printed Circuit Board, PCB Terminal Blocks
796980-4
Header, Wire-to-Board, 4 Position, 7.62 mm [.3 in] Centerline, 1 Row, Operating Voltage 300 VAC, Printed Circuit Board, PCB Terminal Blocks
-
- Buchanan
- TE Internal #: 796980-4
- TE Internal Description: 4 POS TERMI-BLOK VERT HDR 7.62
-
Terminal Block Connector Type : Header
-
Connector System : Wire-to-Board
-
Number of Positions : 4
-
Centerline (Pitch) : 7.62 mm [ .3 in ]
-
Number of Rows : 1
