Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

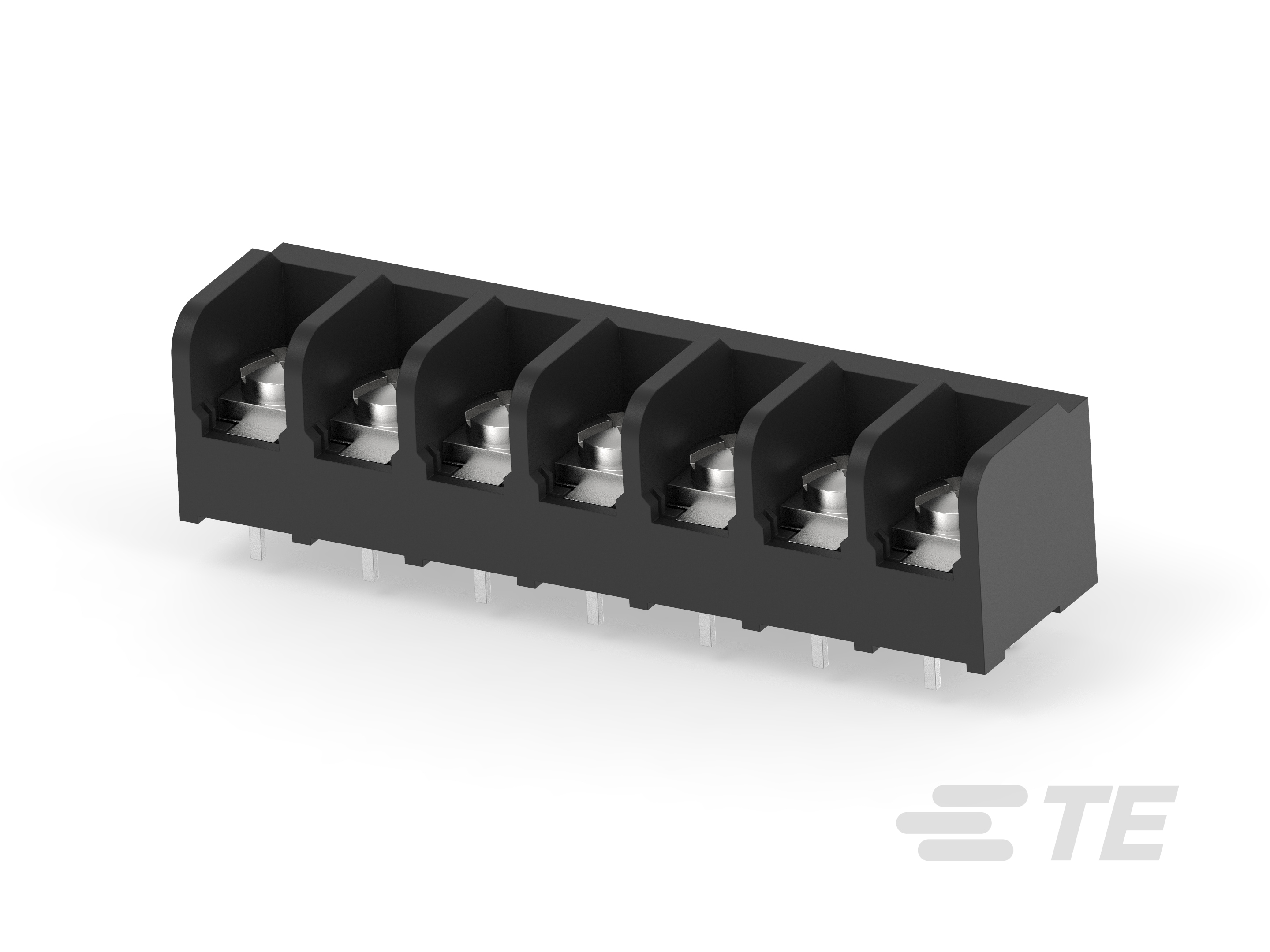

• Block Style : Flat Bottom with standoffs

• Connector System : Wire-to-Board

• Connector & Contact Terminates To : Printed Circuit Board

• Number of Levels : 1

• Number of Positions : 7

• Number of Rows : 1

• Operating Voltage (V): 600

• Product Orientation : Vertical

• Primary Product Color : Black

• Barrier Strip Style : Tri-Barrier

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Copper Alloy

• Contact Current Rating (Max) (A): 30

• Bottom Termination Type : Double Printed Circuit Pin

• Screw Head Type : Combo Phil-Slot

• Thread Size : 8-32

• Screw Material : Steel

• Screw Plating Material : Zinc Chromate

• Mounting Options : None

• Top Termination Type : Binding Combo Head

• Connector Mounting Type : Board Mount

• Housing Material : Thermoplastic

• Centerline (Pitch) : 11.1 mm [ .438 in ]

• Product Length : 79.63 mm [ 3.135 in ]

• Wire Size (AWG): 18 – 10, 22 – 10

• Wire Size (mm²): .326 – 5.26

• Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]

• Circuit Application : Power

• UL Flammability Rating : UL 94V-0
