794435-1

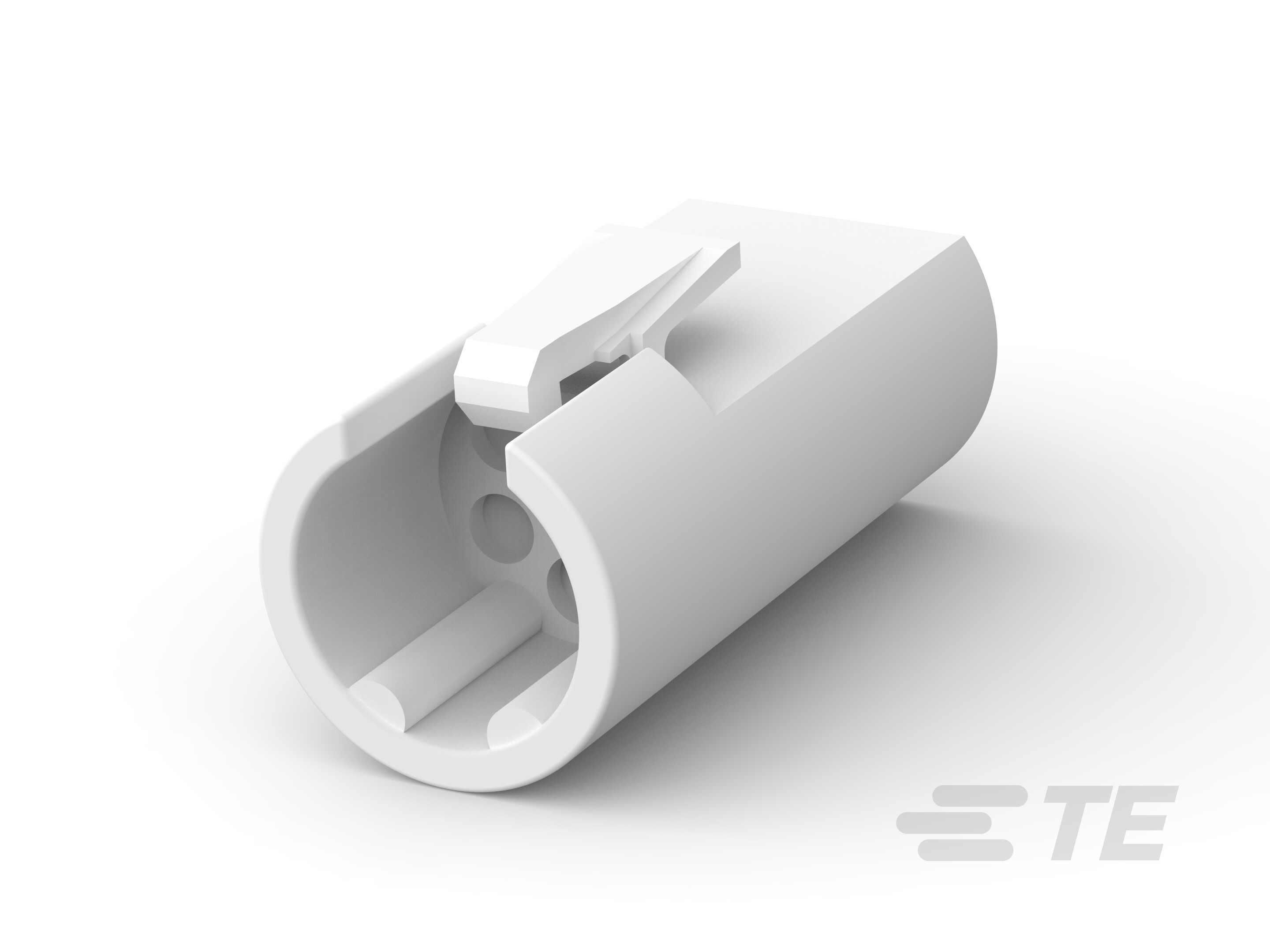

Housing, Plug, Crimp, Wire-to-Wire, UL 94V-2, 6 Position, 600 VAC, Mini-Universal MATE-N-LOK, Rectangular Wire & Cable Connectors & Housings
794435-1
Housing, Plug, Crimp, Wire-to-Wire, UL 94V-2, 6 Position, 600 VAC, Mini-Universal MATE-N-LOK, Rectangular Wire & Cable Connectors & Housings
-
- MATE-N-LOK
- Mini-Universal MATE-N-LOK
- TE Internal #: 794435-1
- TE Internal Description: 06P PLUG HSG HINGE CONN
-
Connector Product Type : Housing
-
Connector & Housing Type : Plug
-
Termination Method to Wire & Cable : Crimp
-
Connector System : Wire-to-Wire
-
Contact Retention Within Housing : Without
