788088-1

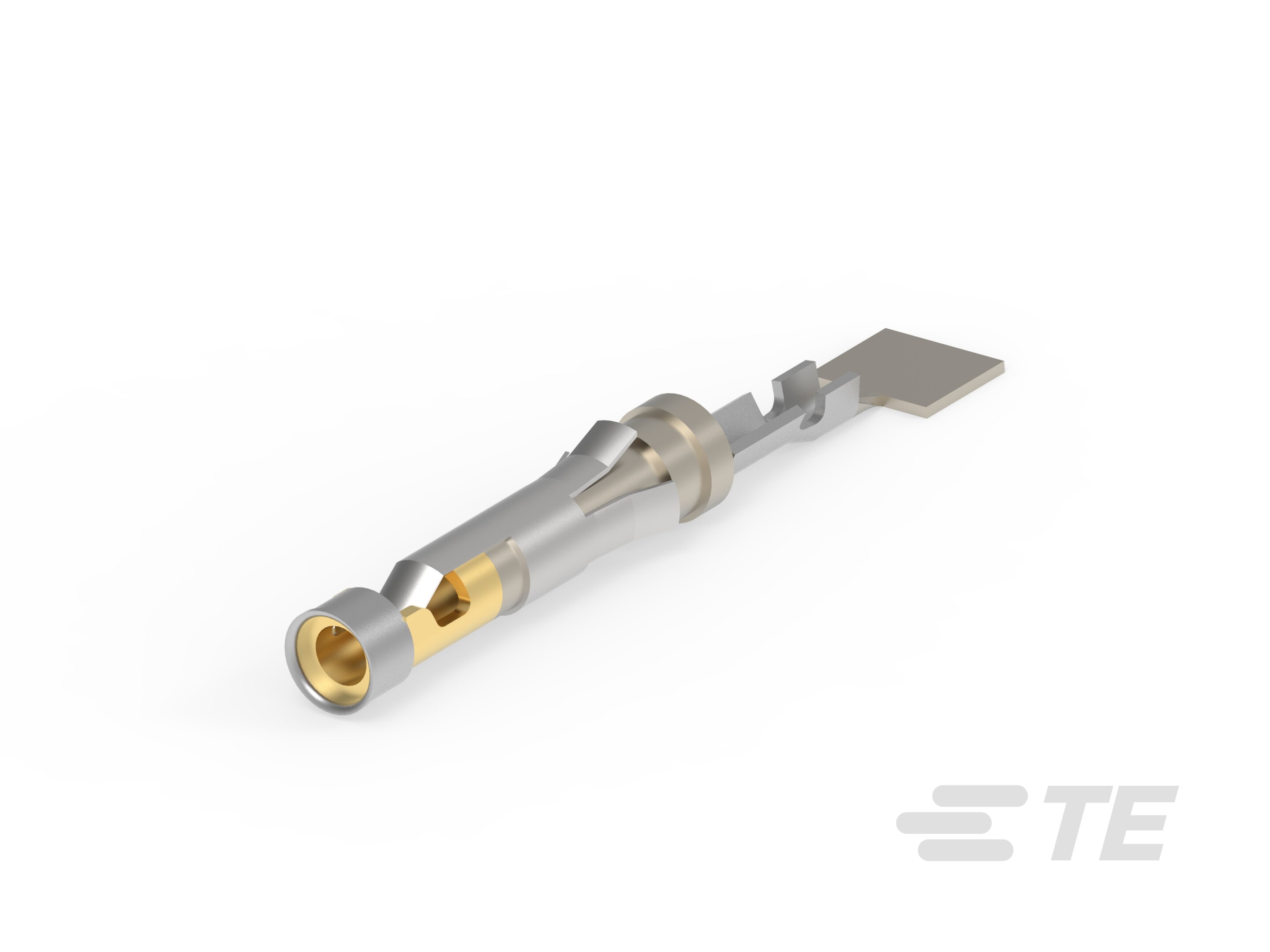

Socket Contact, Gold (Au), Locking Lance Contact Retention, Size 16 Contact Size, 30 – 28 AWG, .05 – .09 mm² Wire, Crimp, Brass, AMP Type III+
788088-1
Socket Contact, Gold (Au), Locking Lance Contact Retention, Size 16 Contact Size, 30 – 28 AWG, .05 – .09 mm² Wire, Crimp, Brass, AMP Type III+
-
- AMP
- AMP Type III+ ,
- Circular Plastic Connectors Series 1
- TE Internal #: 788088-1
- TE Internal Description: TYPE III+ SOCKET ASSEMBLY,.062
-
Contact Type : Socket
-
Contact Mating Area Plating Material : Gold (Au)
-
Wire Contact Termination Area Plating Material : Tin
-
Contact Retention Within Housing : With
-
Contact Retention Type Within Housing : Locking Lance
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_788088-1_E.pdf 3D
- Customer View Model ENG_CVM_CVM_788088-1_E.2d_dxf.zip English
- ENG_CVM_CVM_788088-1_E.3d_igs.zip English
- ENG_CVM_CVM_788088-1_E.3d_stp.zip English
Datasheets & Catalog Pages
- AMP Circular Connectors for Commercial Signal & Power Applications ENG_CS_82021_CPC_sections1-5_0807.pdf English
- ENG_CS_65910_Signal_Contacts_0707.pdf English
- ENG_CS_82003_M_SERIES_PIN_SOCKET_0608.pdf English
Product Specifications
- Application Specification ENG_SS_114-10004_M.pdf English
