Name: 50 50SR R/A RCPT ASSY,REDESIGN
Brand: AMPLIMITE
Price: 10.53 USD
Availability: InStock

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Shell Material Configuration : Full Metal Shell
Connector & Housing Type : Receptacle
Connector System : Cable-to-Board
Connector & Contact Terminates To : Printed Circuit Board

Configuration Features

Number of Rows : 2
PCB Mount Orientation : Right Angle
Number of Positions : 50

Body Features

Connector Profile : Standard
Primary Product Color : Black
Shell Plating Material : Nickel over Copper
Shell Plating Finish : Bright
Assembly Process Feature Material : Copper Alloy

Contact Features

Contact Mating Area Plating Material Thickness (µin): 30
PCB Contact Termination Area Plating Material : Tin-Lead over Nickel
Contact Base Material : Phosphor Bronze
Contact Mating Area Plating Material : Gold or Gold Flash
Contact Underplating Material : Palladium Nickel
Contact Current Rating (Max) (A): 1
Contact Options : Installed

Termination Features

Termination Post & Tail Length : 2.54 mm [ .1 in ]
Termination Method to PCB : Through Hole - Press-Fit, Through Hole - Solder
Rectangular Termination Post & Tail Thickness : .3 mm [ .011 in ]
Rectangular Termination Post & Tail Width : .41 mm [ .016 in ]

Mechanical Attachment

Mounting Hole Diameter (in): .109
Assembly Process Feature Plating Material : Tin-Lead over Nickel
PCB Mount Alignment : Without
Mating Alignment : With
PCB Mount Retention Type : Boardlock
Mating Alignment Type : Rails
Mating Retention : With
PCB Mount Retention : With
Mating Retention Type : Latch
Connector Mounting Type : Board Mount

Housing Features

Shell Material : Carbon Steel
Housing Material : Thermoplastic
Centerline (Pitch) : 1.27 mm [ .05 in ]

Dimensions

PCB Thickness (Recommended) : 1.57 mm [ .062 in ]
Row-to-Row Spacing : 2.54 mm [ .1 in ]

Usage Conditions

Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

Shielded : Yes
Circuit Application : Signal

Industry Standards

Compatible With Approved Standards Products : UL E28476
UL Flammability Rating : UL 94V-0

Packaging Features

Packaging Method : Tube
Packaging Quantity : 10

787171-5

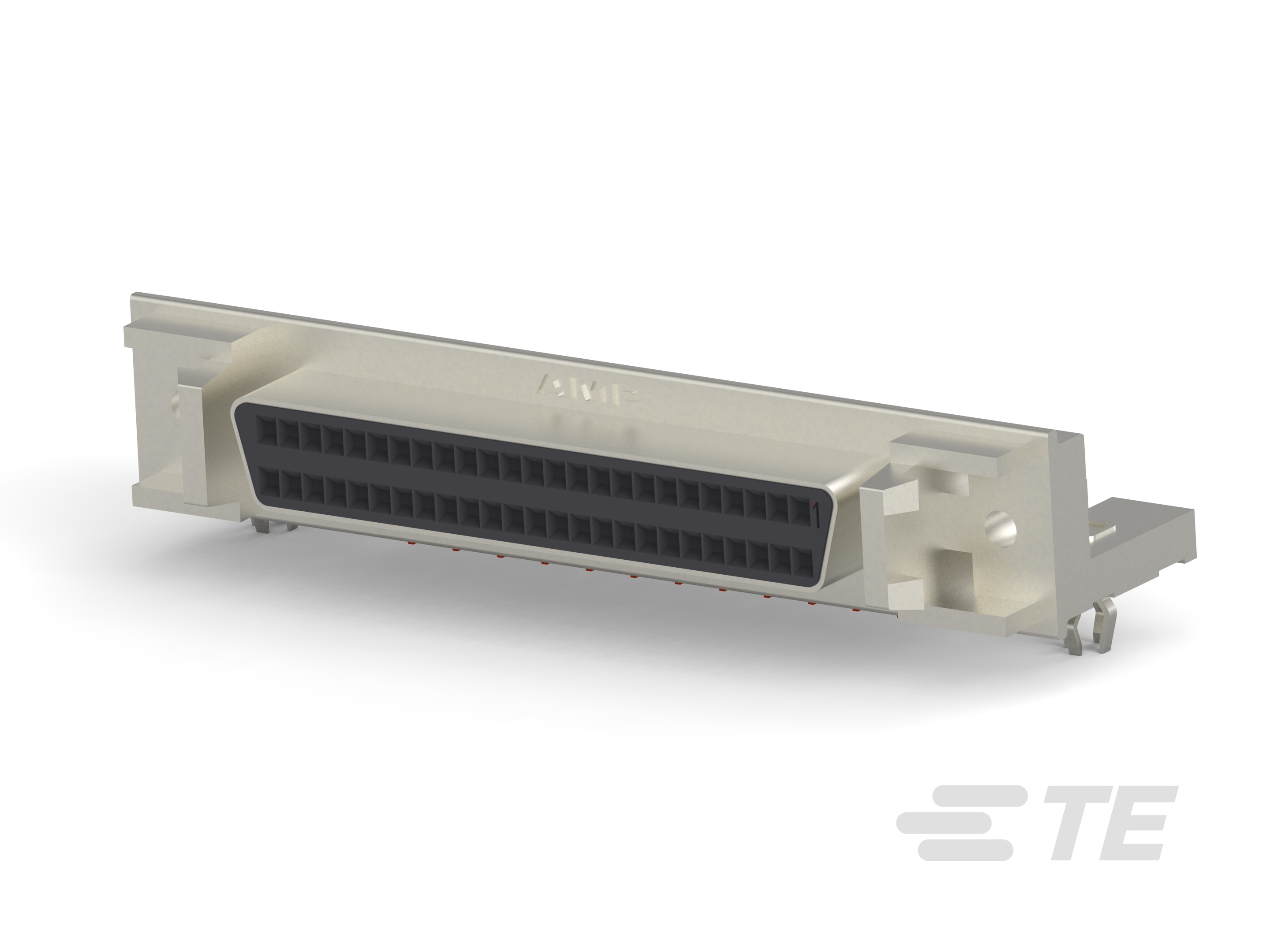

50 Position D-Shaped Connector, Receptacle, Cable-to-Board, Board Mount, 1.27 mm [.05 in] Centerline, Printed Circuit Board, AMPLIMITE 0.50 Series

787171-5

50 Position D-Shaped Connector, Receptacle, Cable-to-Board, Board Mount, 1.27 mm [.05 in] Centerline, Printed Circuit Board, AMPLIMITE 0.50 Series

Number of Positions : 50

Connector & Housing Type : Receptacle

Connector System : Cable-to-Board

Connector Mounting Type : Board Mount

Centerline (Pitch) : 1.27 mm [ .05 in ]

Documents

Product Drawings

CAD Files

Product Specifications

Agency Approvals

Product Change Notification

Features

Product Type Features

Shell Material Configuration : Full Metal Shell

Connector & Housing Type : Receptacle

Connector System : Cable-to-Board

Connector & Contact Terminates To : Printed Circuit Board

Configuration Features

Number of Rows : 2

PCB Mount Orientation : Right Angle

Number of Positions : 50

Body Features

Connector Profile : Standard

Primary Product Color : Black

Shell Plating Material : Nickel over Copper

Shell Plating Finish : Bright

Assembly Process Feature Material : Copper Alloy

Contact Features

Contact Mating Area Plating Material Thickness (µin): 30

PCB Contact Termination Area Plating Material : Tin-Lead over Nickel

Contact Base Material : Phosphor Bronze

Contact Mating Area Plating Material : Gold or Gold Flash

Contact Underplating Material : Palladium Nickel

Contact Current Rating (Max) (A): 1

Contact Options : Installed

Termination Features

Termination Post & Tail Length : 2.54 mm [ .1 in ]

Termination Method to PCB : Through Hole - Press-Fit, Through Hole - Solder

Rectangular Termination Post & Tail Thickness : .3 mm [ .011 in ]

Rectangular Termination Post & Tail Width : .41 mm [ .016 in ]

Mechanical Attachment

Mounting Hole Diameter (in): .109

Assembly Process Feature Plating Material : Tin-Lead over Nickel

PCB Mount Alignment : Without

Mating Alignment : With

PCB Mount Retention Type : Boardlock

Mating Alignment Type : Rails

Mating Retention : With

PCB Mount Retention : With

Mating Retention Type : Latch

Connector Mounting Type : Board Mount

Housing Features

Shell Material : Carbon Steel

Housing Material : Thermoplastic

Centerline (Pitch) : 1.27 mm [ .05 in ]

Dimensions

PCB Thickness (Recommended) : 1.57 mm [ .062 in ]

Row-to-Row Spacing : 2.54 mm [ .1 in ]

Usage Conditions

Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

Shielded : Yes

Circuit Application : Signal

Industry Standards

Compatible With Approved Standards Products : UL E28476

UL Flammability Rating : UL 94V-0

Packaging Features

Packaging Method : Tube

Packaging Quantity : 10
