Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

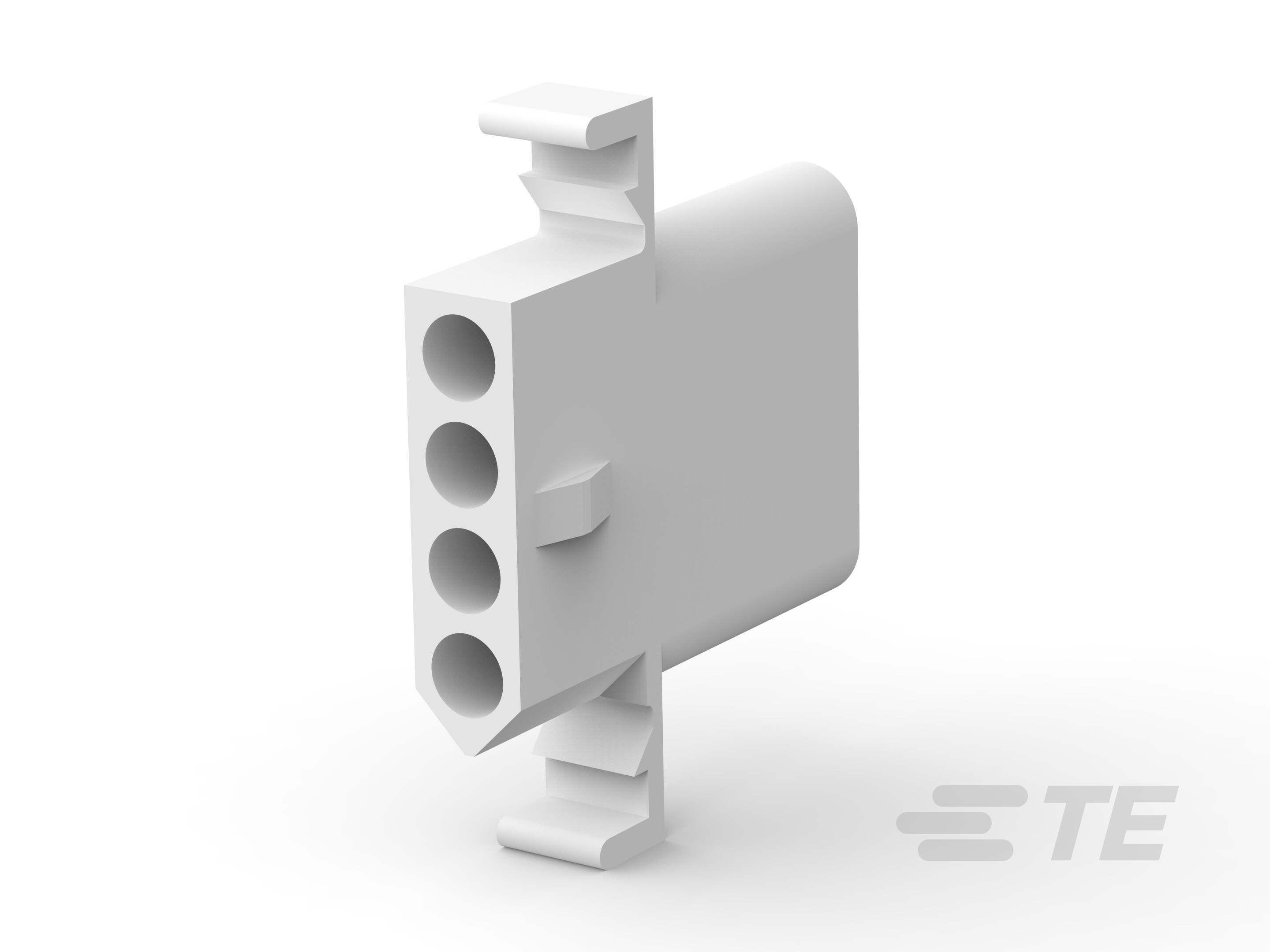

• Rectangular Power Connector Type : Housing

• Connector & Housing Type : Receptacle

• Connector System : Wire-to-Panel, Wire-to-Wire

• Sealable : No

• Connector & Contact Terminates To : Wire & Cable

• Number of Positions : 4

• Number of Signal Positions : 4

• Number of Rows : 1

• Operating Voltage (VAC): 250

• Contact Layout : Inline

• Contact Retention Within Housing : Without

• Contact Type : Socket

• Termination Method to Wire & Cable : Crimp

• Panel Mount Feature Type : Mounting Ears

• Panel Mount Feature : With

• Connector Mounting Type : Panel Mount

• Centerline (Pitch) : 5.03 mm [ .198 in ]

• Housing Color : Natural

• Housing Material : Nylon 6/6

• Product Length (mm): 28.58

• Product Width (mm): 6.1

• Connector Height (mm): 36.2

• Panel Thickness (Recommended) : 2.29 mm [ .09 in ]

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Circuit Application : Power & Signal

• Compatible With Approved Standards Products : UL E28476

• Compatible With Agency/Standards Products : CSA, UL

• UL Flammability Rating : UL 94V-2

• Glow Wire Rating : Standard Part - Not Glow Wire

• UL Rating : Recognized

• CSA Rating : Certified, LR 7189
