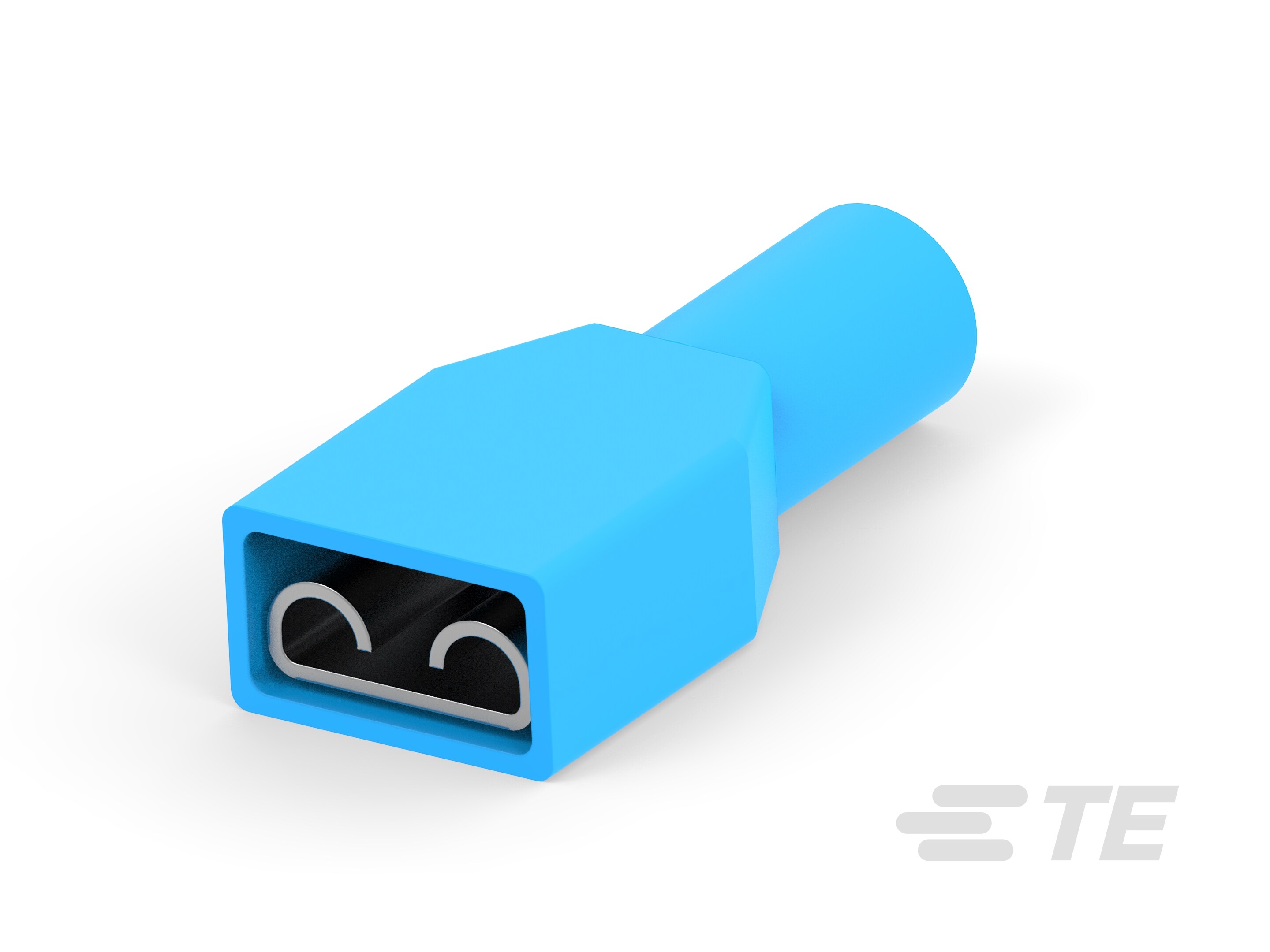

Quick Disconnect Receptacle, 17 – 14 AWG, 1 – 2 mm² Wire, 1980 – 4170 CMA, 6.35 mm [.25 in] Tab Width, Straight, Brass, Tin Plating, Bag, FASTON 250
735159
Quick Disconnect Receptacle, 17 – 14 AWG, 1 – 2 mm² Wire, 1980 – 4170 CMA, 6.35 mm [.25 in] Tab Width, Straight, Brass, Tin Plating, Bag, FASTON 250
-
- FASTON
- FASTON 250
- TE Internal #: 735159
- TE Internal Description: 250 PIDG FF
- Alias #: C46518-000 AMPS-0-0735159-0
-
Quick Disconnect Terminal Type : Receptacle
-
Wire Size (AWG): 17 – 14
-
Wire Size (mm²): 1 – 2
-
Wire Size (CMA): 1980 – 4170
-
Mating Tab Width : 6.35 mm [ .25 in ]
Documents
Product Drawings
- FULLY INSULATED FASTON RCPT 6.35 MM (BLUE) ENG_CD_735159_F3.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_735159_F.pdf English
- 3D_CVM_CVM_735159_M.pdf 3D
- Customer View Model ENG_CVM_CVM_735159_M.2d_dxf.zip English
- ENG_CVM_CVM_735159_M.3d_igs.zip English
- ENG_CVM_CVM_735159_M.3d_stp.zip English
- ENG_CVM_735159_F.3d_igs.zip English
- ENG_CVM_735159_F.3d_stp.zip English
- ENG_CVM_735159_F.2d_dxf.zip English
Product Specifications
- Product Specification ENG_SS_108-1033_A.pdf English
Instruction Sheets
- Instruction Sheet (non U.S.) ENG_SS_411-22017_C.pdf English
- S_411-22017_C.tif English
