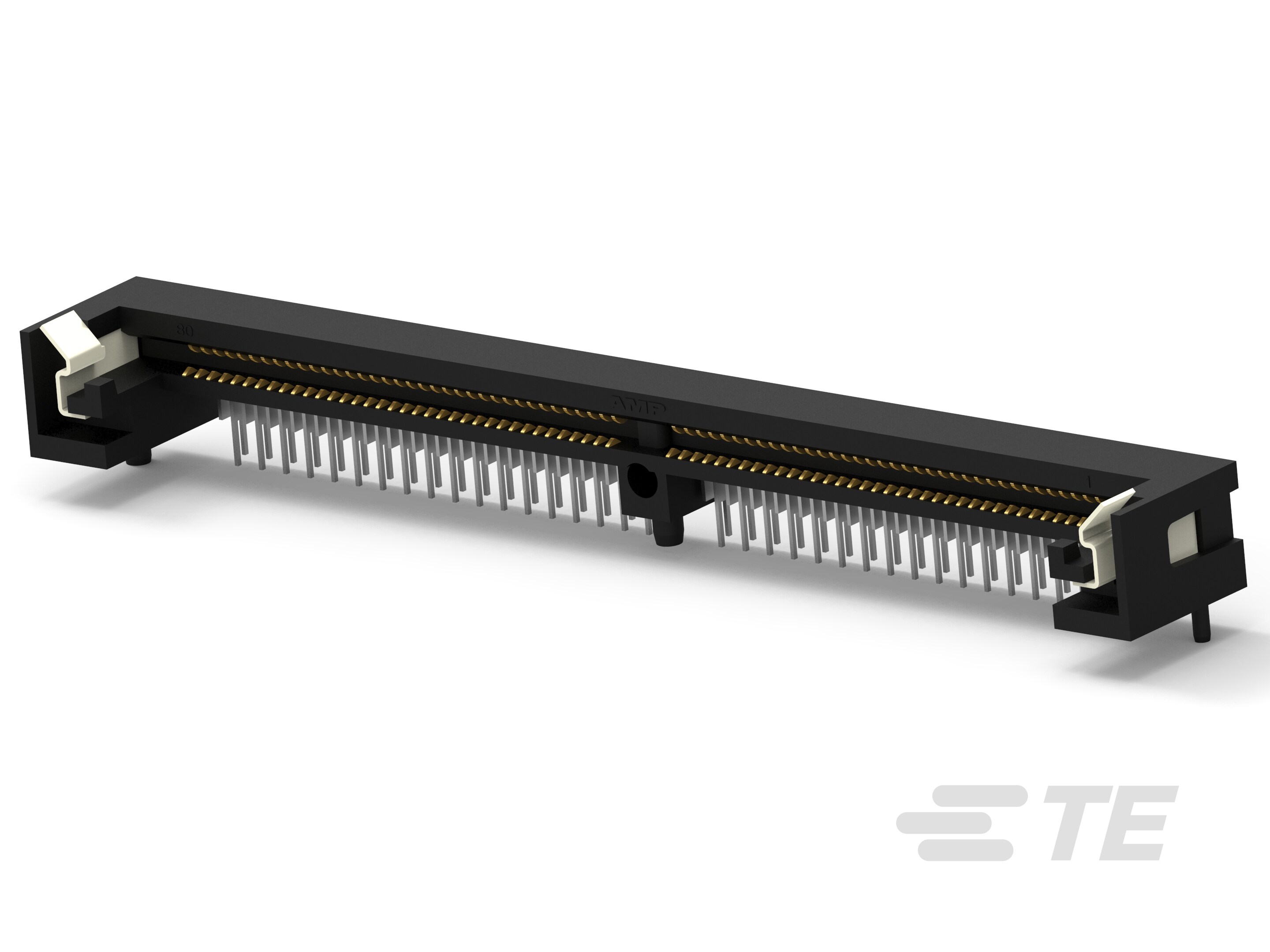

Right Angle Module Orientation, 72 Position, -55 – 85 °C [-67 – 185 °F], MICRO-EDGE SIMM, SIMM Sockets
7-5382487-2
Right Angle Module Orientation, 72 Position, -55 – 85 °C [-67 – 185 °F], MICRO-EDGE SIMM, SIMM Sockets
-
- MICRO-EDGE
- MICRO-EDGE SIMM
- TE Internal #: 7-5382487-2
- TE Internal Description: SIMM II,.250"H,.050CL,72P,30AU
-
Module Orientation : Right Angle
-
Number of Positions : 72
-
Operating Temperature Range : -55 – 85 °C [ -67 – 185 °F ]
Documents
Product Drawings
- SIMM II, RTANG, 1.27 [.050] ASSY, 6.35 [.250] HGT ENG_CD_5382487_B2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_7-5382487-2_C1.pdf 3D
- Customer View Model ENG_CVM_CVM_7-5382487-2_C1.2d_dxf.zip English
- ENG_CVM_CVM_7-5382487-2_C1.3d_igs.zip English
- ENG_CVM_CVM_7-5382487-2_C1.3d_stp.zip English
