Please review product documents or contact us for the latest agency approval information.

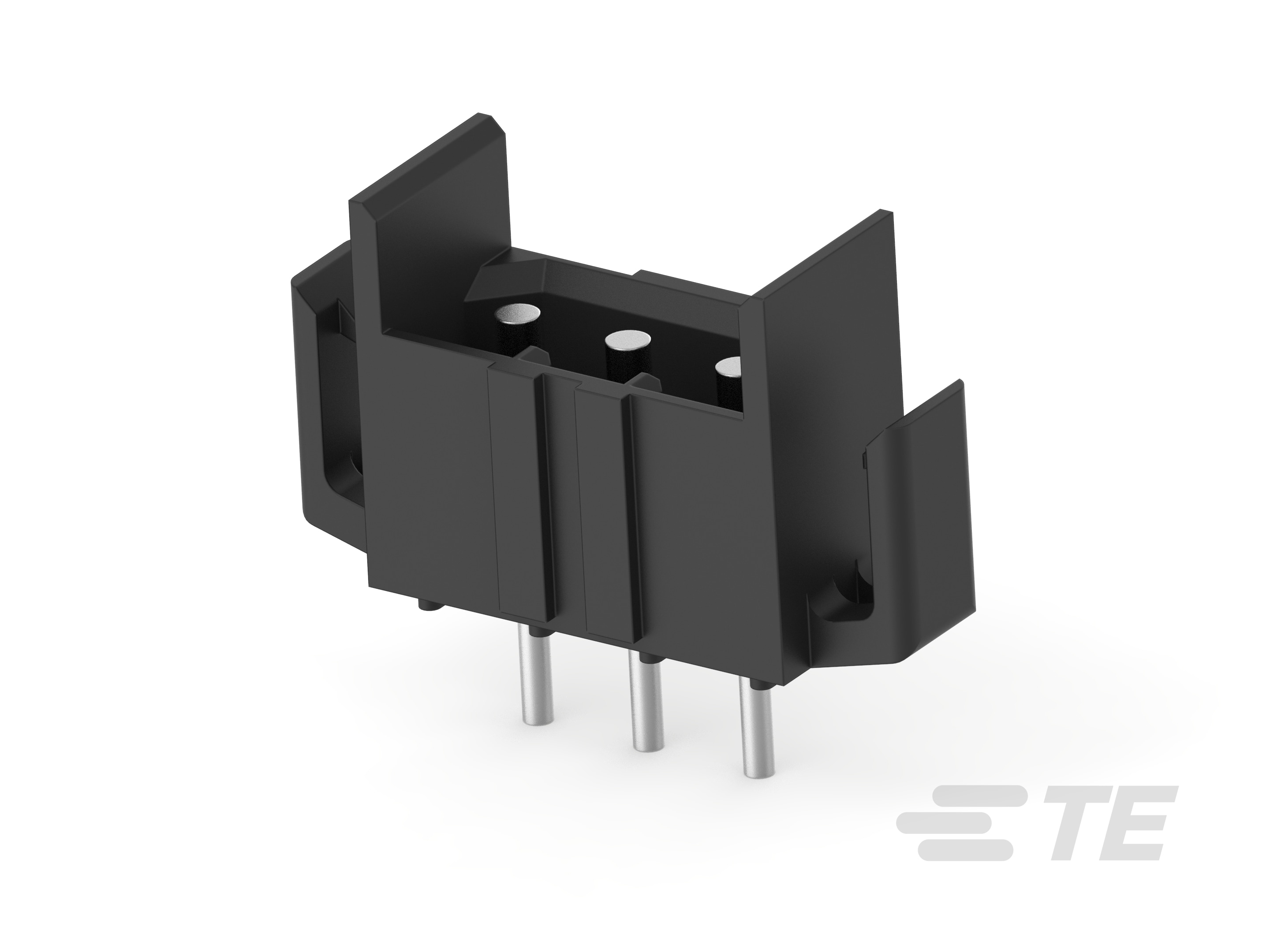

• Connector Shape : Rectangular

• PCB Connector Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Product Type : Connector Assembly

• Number of Signal Positions : 3

• Number of Loaded Positions : 3

• Number of Columns : 3

• PCB Mount Orientation : Vertical

• Number of Positions : 3

• Number of Rows : 1

• Operating Voltage (VAC): 250

• Primary Product Color : Black

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Phosphor Bronze

• Contact Layout : Inline

• PCB Contact Termination Area Plating Material Thickness : 3.81 µm [ 150 µin ]

• Contact Mating Area Plating Material Thickness : 3.81 µm [ 150 µin ]

• Contact Underplating Material Thickness : 1.27 µm [ 50 µin ]

• Contact Underplating Material : Nickel

• Contact Mating Area Plating Material : Tin (Sn)

• Contact Type : Pin

• Contact Current Rating (Max) (A): 6

• Termination Post & Tail Length : 5.33 mm [ .21 in ]

• Termination Method to PCB : Through Hole - Solder

• Mating Alignment Type : Polarization

• Mating Retention : With

• Mating Retention Type : Positive Lock

• PCB Mount Retention : Without

• PCB Mount Alignment : Without

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Housing Material : PA 66

• Centerline (Pitch) : 4.2 mm [ .165 in ]

• Connector Length : 7.36 mm [ .29 in ]

• Connector Height : 13.46 mm [ .53 in ]

• PCB Thickness (Recommended) : 3.05 mm [ .12 in ]

• Connector Width : 15.75 mm [ .62 in ]

• Operating Temperature (Max) : 105 °C [ 221 °F ]

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Circuit Application : Power & Signal

• Glow Wire Rating : Standard Part - Not Glow Wire

• Compatible With Approved Standards Products : UL E28476

• UL Rating : Recognized

• Compatible With Agency/Standards Products : CSA, UL

• UL Flammability Rating : UL 94V-0
