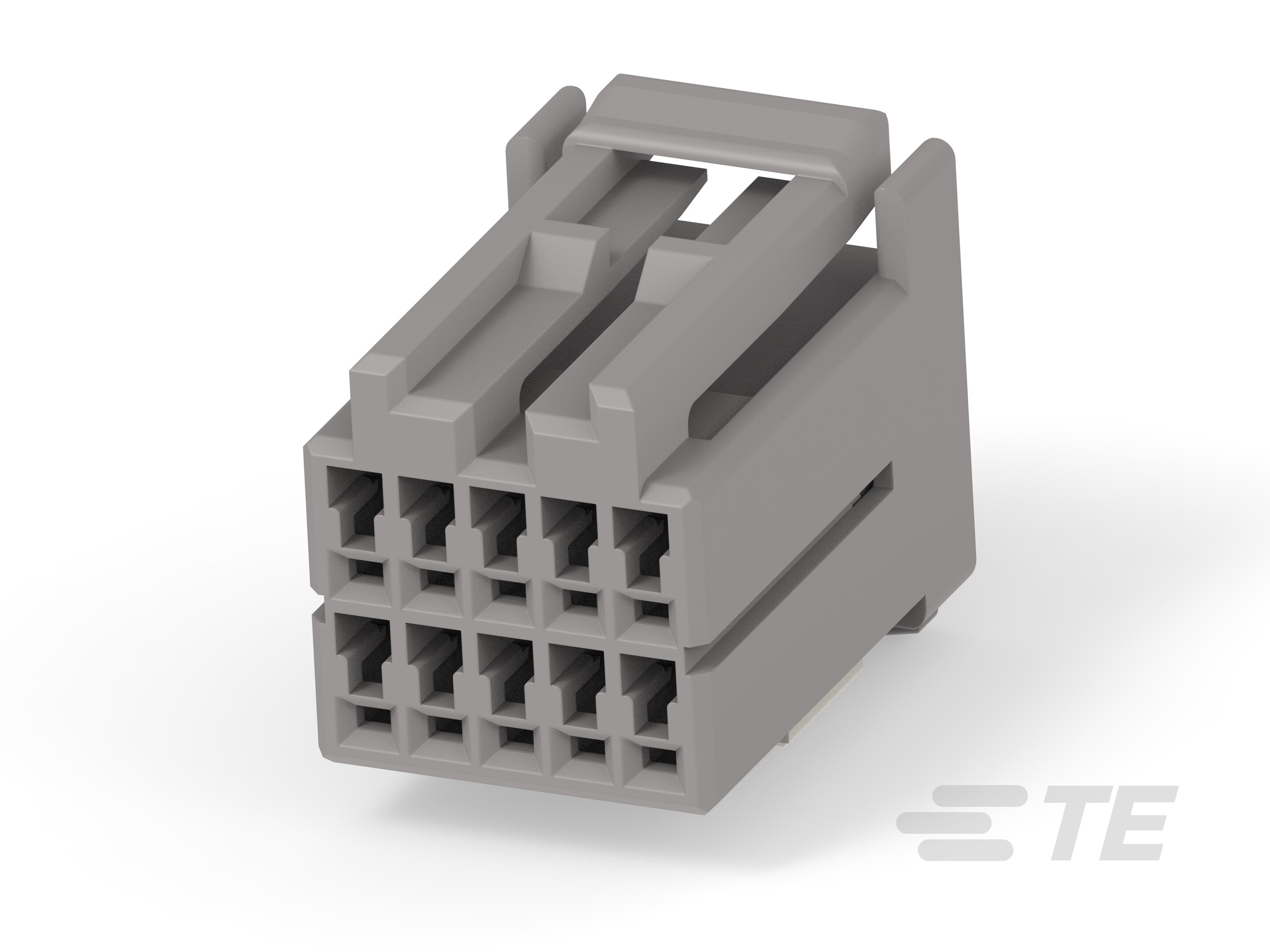

Wire-to-Wire, 10 Position, 2.5 mm [.098 in] Centerline, Gray, Signal, Cable Mount (Free-Hanging), Multilock Connector System
638207-6
Wire-to-Wire, 10 Position, 2.5 mm [.098 in] Centerline, Gray, Signal, Cable Mount (Free-Hanging), Multilock Connector System
-
- Multilock Connector System
- TE Internal #: 638207-6
- TE Internal Description: 040 10P PLUG ASSY III GY
- All MULTILOCK, CONNECTOR HOUSING (393)
-
Connector System : Wire-to-Wire
-
Number of Positions : 10
-
Centerline (Pitch) : 2.5 mm [ .098 in ]
-
Sealable : No
-
Mating Tab Width : 1 mm [ .039 in ]
