63711-2

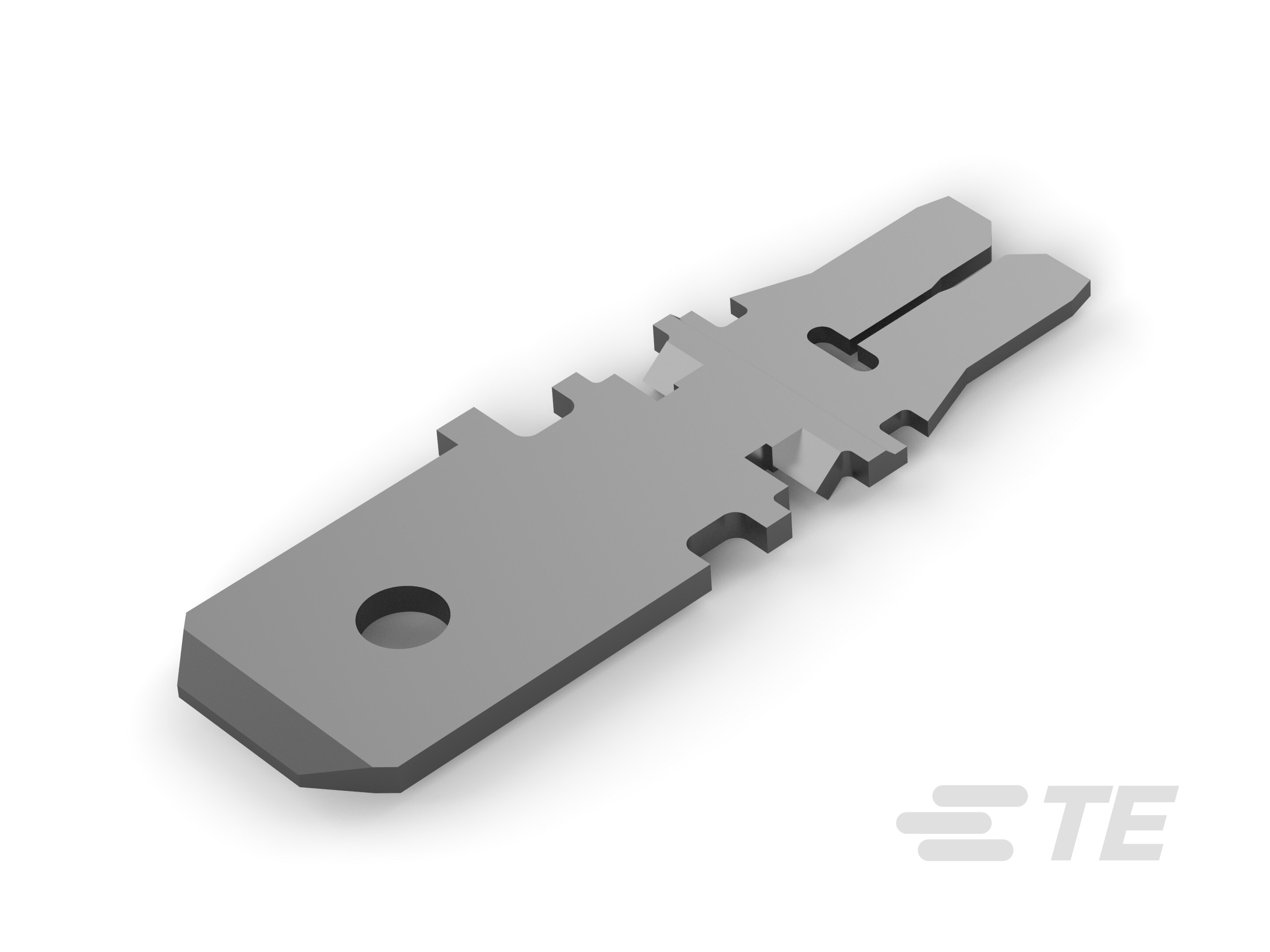

Tab, 4.78 mm [.188 in] Tab Width, .25 – .32 mm Magnet Wire, 30 – 28 AWG Magnet Wire, Insulation Displacement (IDC), MAG-MATE, Magnet Wire Terminals
63711-2
Tab, 4.78 mm [.188 in] Tab Width, .25 – .32 mm Magnet Wire, 30 – 28 AWG Magnet Wire, Insulation Displacement (IDC), MAG-MATE, Magnet Wire Terminals
-
- MAG-MATE
- TE Internal #: 63711-2
- TE Internal Description: TAB 187 MAG-MATE SLIM LN.
-
Magnet Wire Terminal Type : Tab
-
Mating Tab Width : 4.78 mm [ .188 in ]
-
Mating Tab Thickness : .51 mm [ .02 in ]
-
Compatible With Cavity Size : Special
-
Magnet Wire Size (mm): .25 – .32
Documents
Product Drawings
- TAB, 4.75 [.187] FASTON, MAG-MATE Slim Line ENG_CD_63711_F2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_63711-2_H_c-63711-2-h-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_63711-2_H_c-63711-2-h.2d_dxf.zip English
- ENG_CVM_CVM_63711-2_H_c-63711-2-h.3d_igs.zip English
- ENG_CVM_CVM_63711-2_H_c-63711-2-h.3d_stp.zip English
Datasheets & Catalog Pages
- Magnet Wire Terminals & Splices ENG_DS_82221_MagnetWire_0616.pdf English
Product Specifications
- Application Specification ENG_SS_114-2140_C.pdf English
- Product Specification ENG_SS_108-1484_E.pdf English
