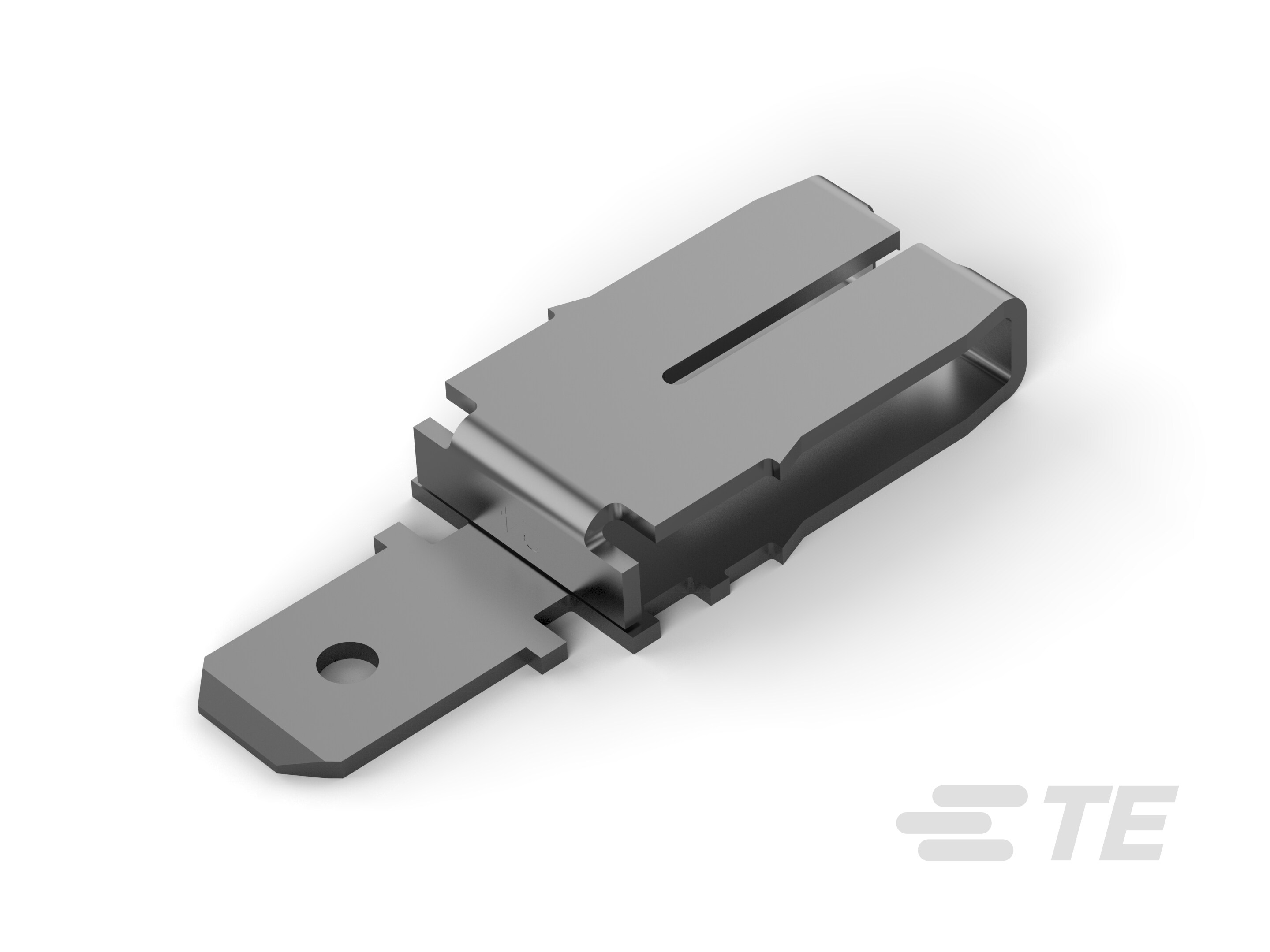

63643-1
Tab, 4.78 mm [.188 in] Tab Width, 18.5 – 16.5 AWG Aluminum Wire, .97 – 1.22 mm Aluminum Wire, MAG-MATE, Magnet Wire Terminals
63643-1
Tab, 4.78 mm [.188 in] Tab Width, 18.5 – 16.5 AWG Aluminum Wire, .97 – 1.22 mm Aluminum Wire, MAG-MATE, Magnet Wire Terminals
-
- MAG-MATE
- TE Internal #: 63643-1
- TE Internal Description: MAG-MATE 187 FAST TAB 0198TPBR
-
Magnet Wire Terminal Type : Tab
-
Mating Tab Width : 4.78 mm [ .188 in ]
-
Mating Tab Thickness : .51 mm [ .02 in ]
-
Compatible With Cavity Size : Size 4
-
Aluminum Wire Size (AWG): 18.5 – 16.5
Documents
Product Drawings
- TAB, 4.75 [.187] FASTON, MAG-MATE ENG_CD_63643_A4.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_63643-1_G.pdf 3D
- Customer View Model ENG_CVM_CVM_63643-1_G.2d_dxf.zip English
- ENG_CVM_CVM_63643-1_G.3d_igs.zip English
- ENG_CVM_CVM_63643-1_G.3d_stp.zip English
Datasheets & Catalog Pages
- Magnet Wire Terminals & Splices ENG_DS_82221_MagnetWire_0616.pdf English
Product Specifications
- Application Specification ENG_SS_114-2066_R.pdf English
- Product Specification ENG_SS_108-2053_G.pdf English
- Qualification Test Report ENG_SS_501-89_B.pdf English
