63301-1

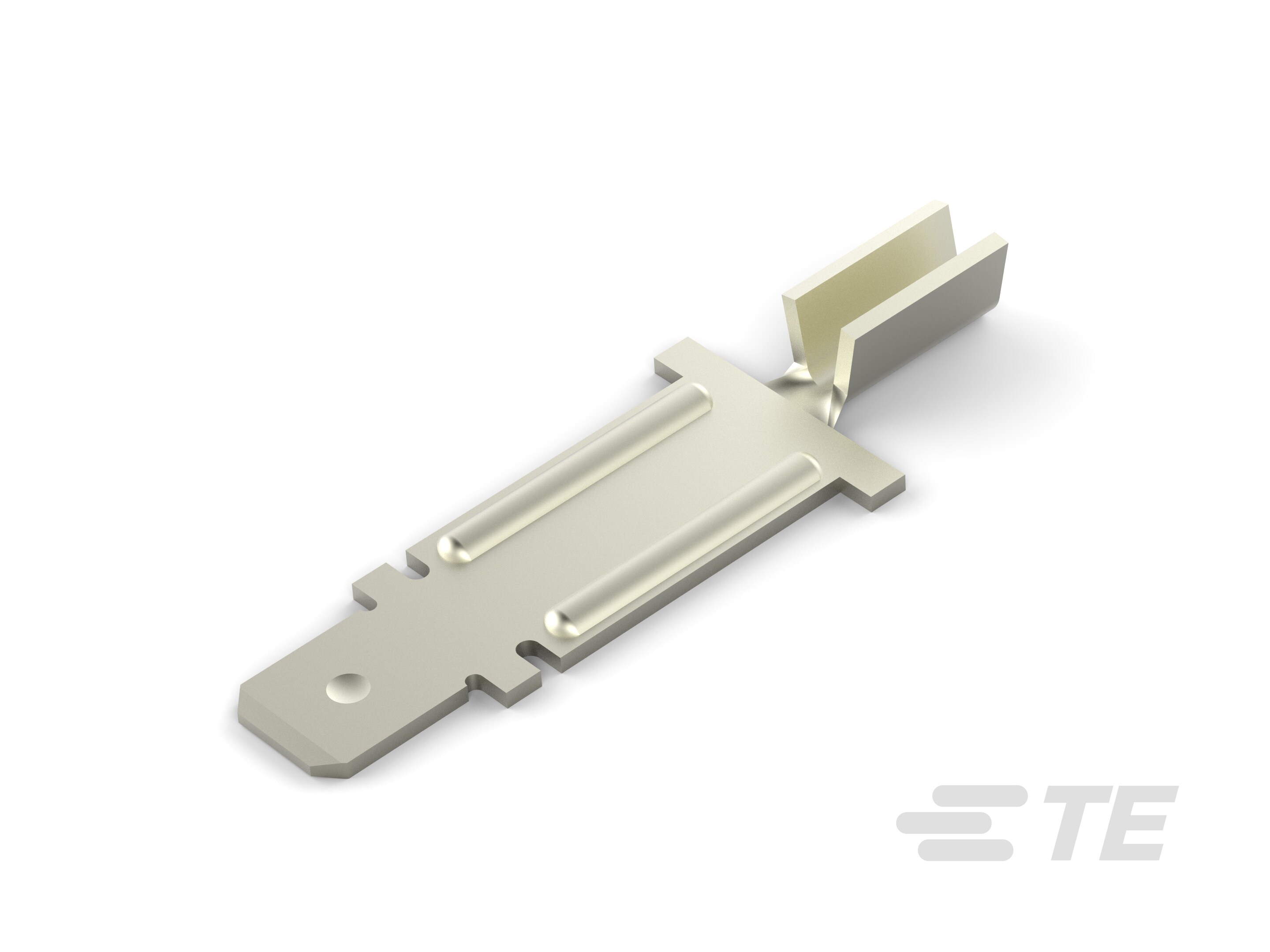

Quick Disconnect Tab, 22 – 15 AWG, .32 – 1.65 mm² Wire, 6.35 mm [.25 in] Tab Width, Straight, Steel, Nickel Plating, Strip/Reel, F-Crimp, FASTON 250
63301-1
Quick Disconnect Tab, 22 – 15 AWG, .32 – 1.65 mm² Wire, 6.35 mm [.25 in] Tab Width, Straight, Steel, Nickel Plating, Strip/Reel, F-Crimp, FASTON 250
-
- FASTON
- FASTON 250
- TE Internal #: 63301-1
- TE Internal Description: 250 FASTON TAB 22-15 AWG NPST
-
Quick Disconnect Terminal Type : Tab
-
Wire Size (AWG): 22 – 15
-
Wire Size (mm²): .32 – 1.65
-
Mating Tab Width : 6.35 mm [ .25 in ]
-
Mating Tab Thickness : .81 mm [ .032 in ]
Documents
Product Drawings
- .250 TAB FOR NI-CHROME WIRE ENG_CD_63301_E3.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_63301-1_G.pdf 3D
- Customer View Model ENG_CVM_CVM_63301-1_G.2d_dxf.zip English
- ENG_CVM_CVM_63301-1_G.3d_igs.zip English
- ENG_CVM_CVM_63301-1_G.3d_stp.zip English
Datasheets & Catalog Pages
- FASTON Tabs ENG_CS_82004_FASTON_Tabs_0311.pdf English
Product Specifications
- Application Specification ENG_SS_114-2097_H2.pdf English
