Please review product documents or contact us for the latest agency approval information.

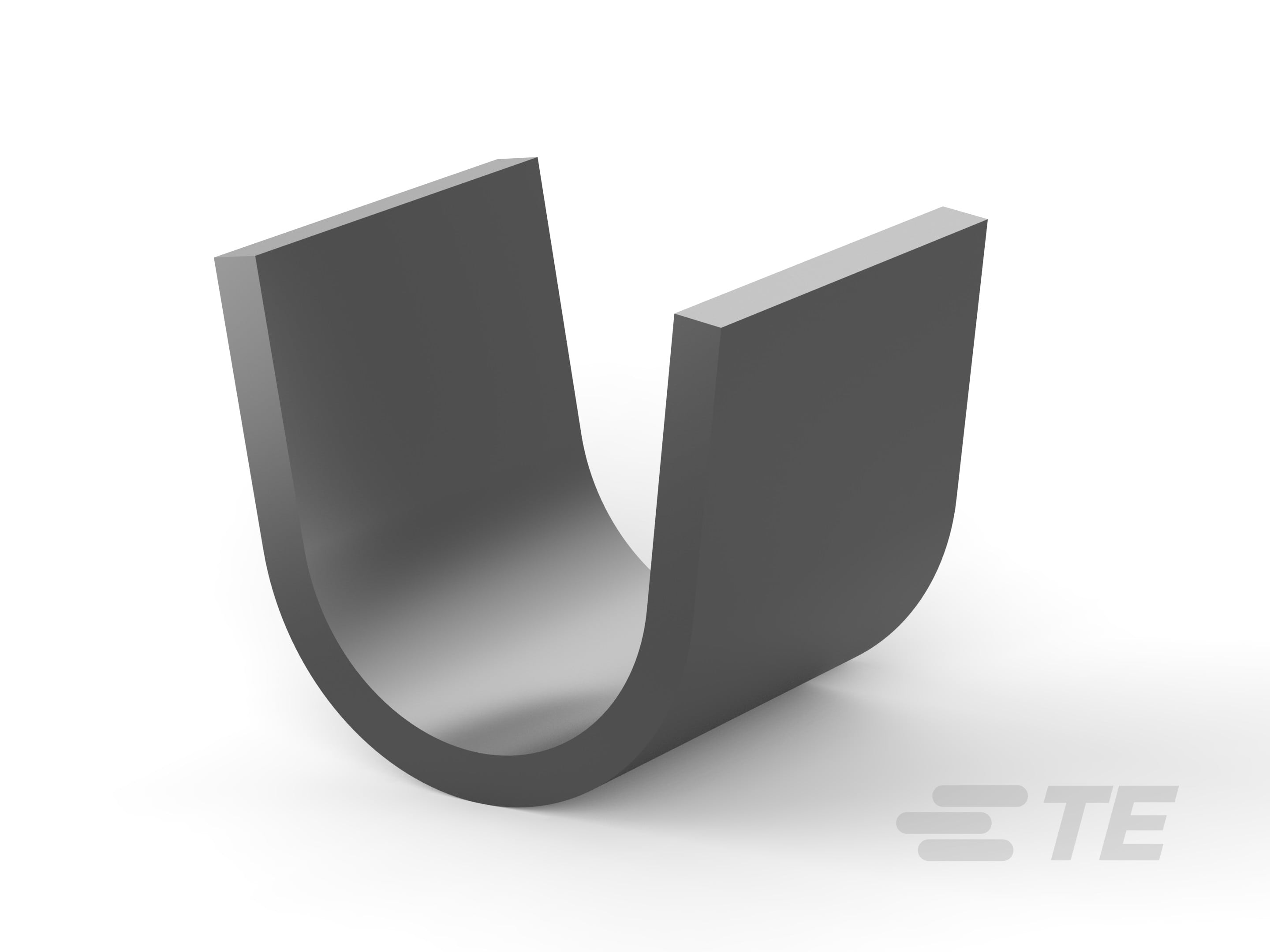

• Splice Type : Thru Splice

• Sealable : No

• Strip Orientation : End Feed

• Splice Capacity : 3

• Number of Serrations : 5

• Operating Voltage (V): 250

• Product Weight (g): .414

• Splice Features : Serrated

• Terminal Plating Material : Tin

• Contact Base Material : Brass

• Barrel Type : Open

• Crimp Width : 6.35 mm [ .25 in ]

• Wire Insulation Support : Without

• Wire Size (AWG): 12 – 10

• Wire Size (mm²): 3.46 – 6

• Wire Size (CMA): 7000 – 12000

• Terminal Material Thickness : .64 mm [ .025 in ]

• Product Length : 5.72 mm [ .225 in ]

• Insulation Option : Uninsulated

• Government Qualified Splice : No
