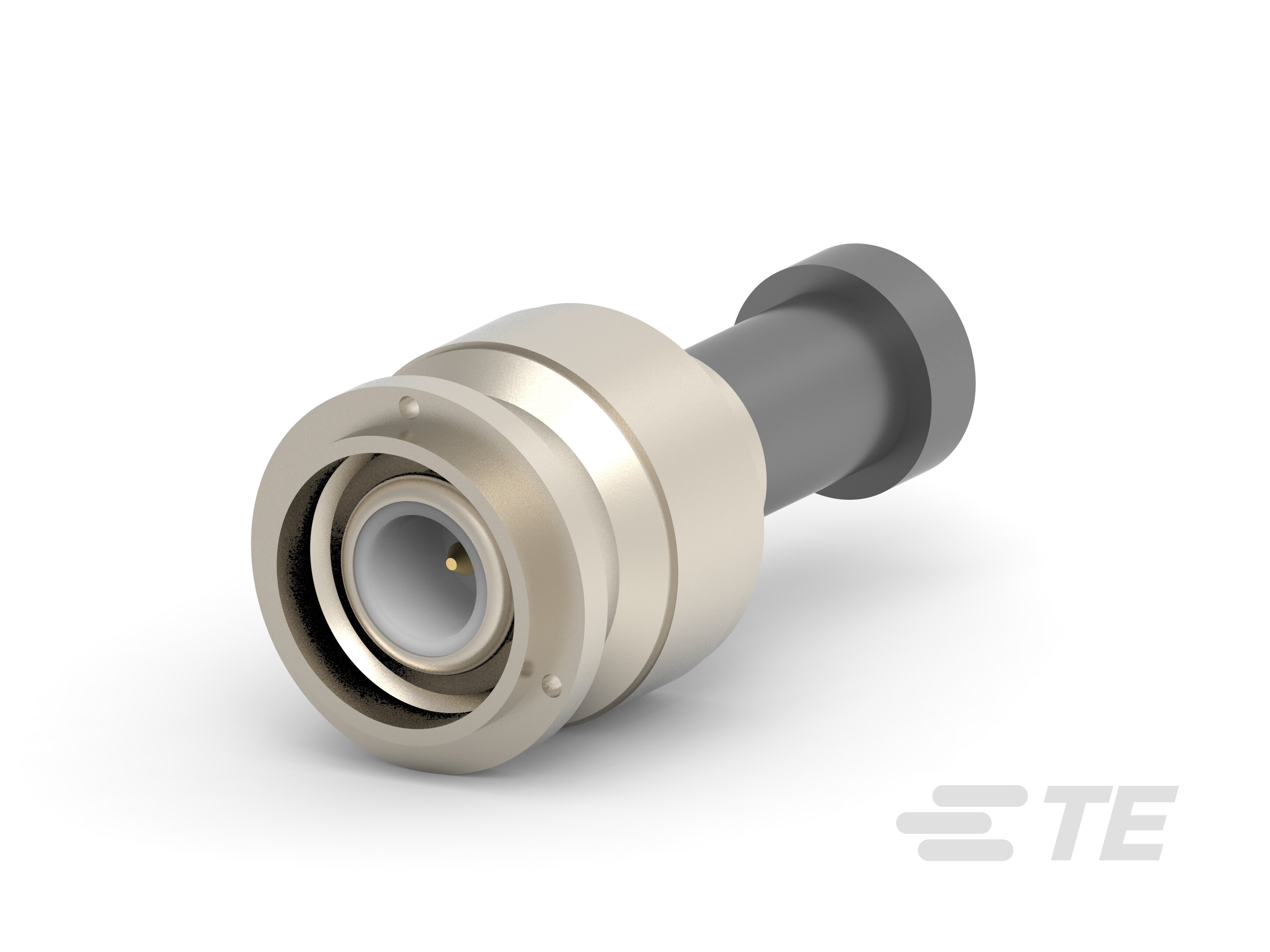

TNC Connector, Plug, 50 ohm, Threaded, 11 GHz, Cable-to-Cable, 1 Position, Sealable, Wire & Cable, Cable Mount (Free-Hanging)
5225555-6
TNC Connector, Plug, 50 ohm, Threaded, 11 GHz, Cable-to-Cable, 1 Position, Sealable, Wire & Cable, Cable Mount (Free-Hanging)
- TE Internal #: 5225555-6
- TE Internal Description: TNC PLUG DUAL W/P TR
-
RF Interface : TNC
-
RF Connector Style : Plug
-
RF Connector Mated Outer Diameter (Approximate) : 16.26 mm [ .64 in ]
-
Impedance (Ω): 50
-
Compatible With RF Cable Type : RG 142, RG 142A, RG 142B
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_5225555-6_O.pdf 3D
- Customer View Model ENG_CVM_CVM_5225555-6_O.2d_dxf.zip English
- ENG_CVM_CVM_5225555-6_O.3d_igs.zip English
- ENG_CVM_CVM_5225555-6_O.3d_stp.zip English
Datasheets & Catalog Pages
- TNC Connectors ENG_CS_1307191_TNC_Connectors_0218.pdf English
