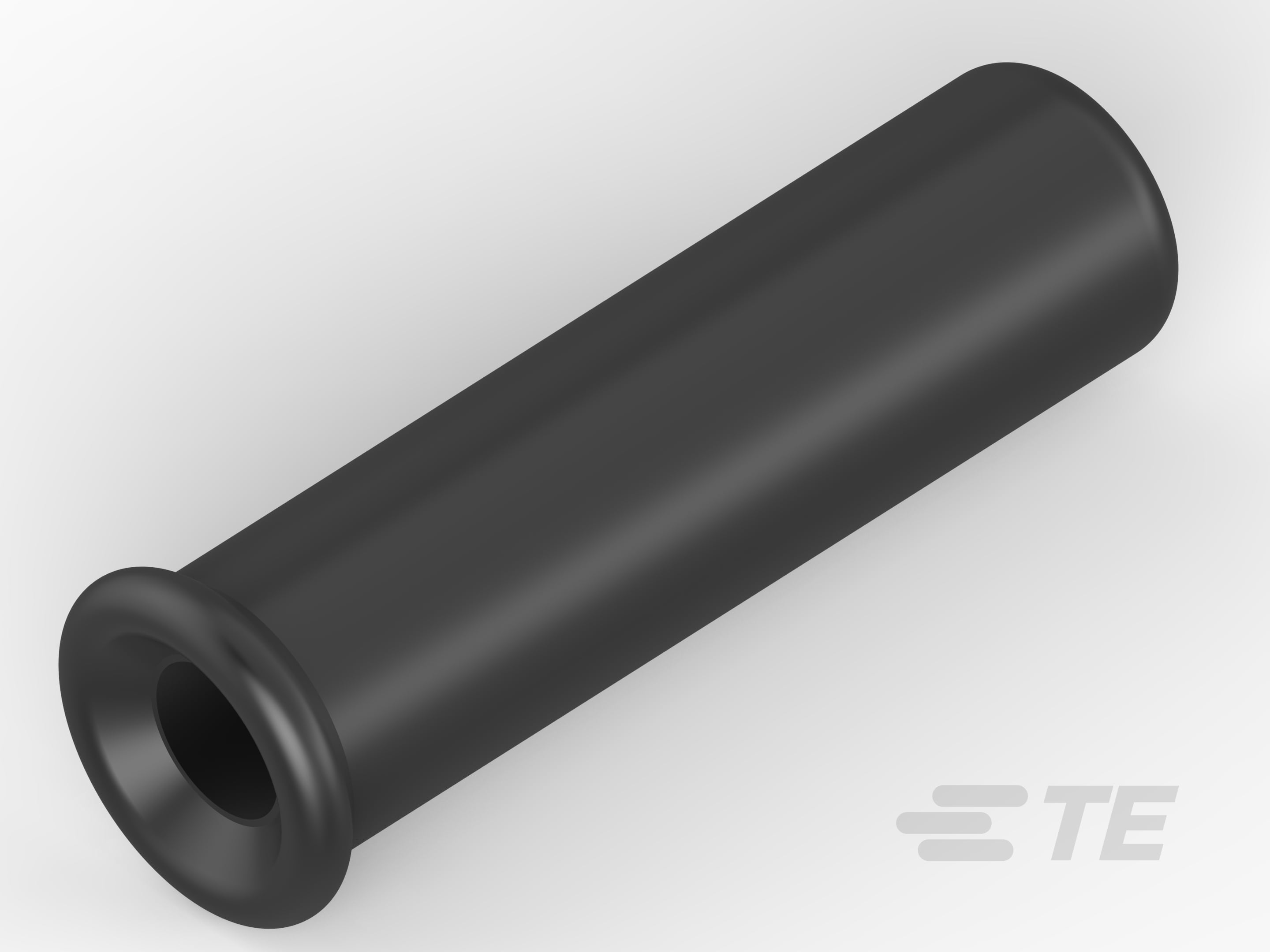

Name: SOCKET,MIN-SPR SN-AU SER-4
Brand: TE Connectivity (TE)
Price: 0.69 USD
Availability: InStock

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Connector & Contact Terminates To : Printed Circuit Board
Socket Sleeve Style : Open Bottom
Connector System : Cable-to-Board
Sealable : No

Configuration Features

Compatible With Wire & Cable Type : Discrete Wire

Body Features

Sleeve Material : Copper
Sleeve Plating Material : Tin

Contact Features

Contact Spring Plating Thickness : .762 µm [ 30 µin ]
Contact Mating Area Plating Material Thickness : 30 µm [ 30 µin ]
Contact Base Material : Beryllium Copper
Contact Spring Plating Material : Gold
Contact Current Rating (Max) (A): 6.5

Termination Features

Insertion Method : Hand/Semi-Automatic
Termination Method to Wire & Cable : Solder
Termination Method to PCB : Through Hole - Press-Fit

Dimensions

PCB Thickness (Recommended) : .79 – 3.18 mm [ .031 – .125 in ]
Socket Length : 6.6 mm [ .26 in ]
PCB Hole Diameter : 1.83 mm [ .072 in ]
Wire Size (AWG): 20 – 18
Wire Size (mm²): .518 – .823
Mating Pin Diameter Range : .86 – 1.04 mm [ .034 – .041 in ]

Usage Conditions

Operating Temperature Range : -65 – 125 °C [ -85 – 257 °F ]

Operation/Application

Circuit Application : Power & Signal

Packaging Features

Packaging Quantity : 2000
Packaging Method : Bag | Loose Piece

Other

Spring Material : Beryllium Copper

5050865-3

6.6 mm [.26 in] Socket Length, 1.83 mm [.072 in] PCB Hole, Open Bottom, .518 – .823 mm² Wire, 20 – 18 AWG, Cable-to-Board, Power & Signal, Pin Sockets

5050865-3

6.6 mm [.26 in] Socket Length, 1.83 mm [.072 in] PCB Hole, Open Bottom, .518 – .823 mm² Wire, 20 – 18 AWG, Cable-to-Board, Power & Signal, Pin Sockets

Socket Length : 6.6 mm [ .26 in ]

PCB Hole Diameter : 1.83 mm [ .072 in ]

Socket Sleeve Style : Open Bottom

Wire Size (AWG): 20 – 18

Wire Size (mm²): .518 – .823

Documents

Product Drawings

CAD Files

Product Specifications

Product Change Notification

Features

Product Type Features

Connector & Contact Terminates To : Printed Circuit Board

Socket Sleeve Style : Open Bottom

Connector System : Cable-to-Board

Sealable : No

Configuration Features

Compatible With Wire & Cable Type : Discrete Wire

Body Features

Sleeve Material : Copper

Sleeve Plating Material : Tin

Contact Features

Contact Spring Plating Thickness : .762 µm [ 30 µin ]

Contact Mating Area Plating Material Thickness : 30 µm [ 30 µin ]

Contact Base Material : Beryllium Copper

Contact Spring Plating Material : Gold

Contact Current Rating (Max) (A): 6.5

Termination Features

Insertion Method : Hand/Semi-Automatic

Termination Method to Wire & Cable : Solder

Termination Method to PCB : Through Hole - Press-Fit

Dimensions

PCB Thickness (Recommended) : .79 – 3.18 mm [ .031 – .125 in ]

Socket Length : 6.6 mm [ .26 in ]

PCB Hole Diameter : 1.83 mm [ .072 in ]

Wire Size (AWG): 20 – 18

Wire Size (mm²): .518 – .823

Mating Pin Diameter Range : .86 – 1.04 mm [ .034 – .041 in ]

Usage Conditions

Operating Temperature Range : -65 – 125 °C [ -85 – 257 °F ]

Operation/Application

Circuit Application : Power & Signal

Packaging Features

Packaging Quantity : 2000

Packaging Method : Bag | Loose Piece

Other

Spring Material : Beryllium Copper
