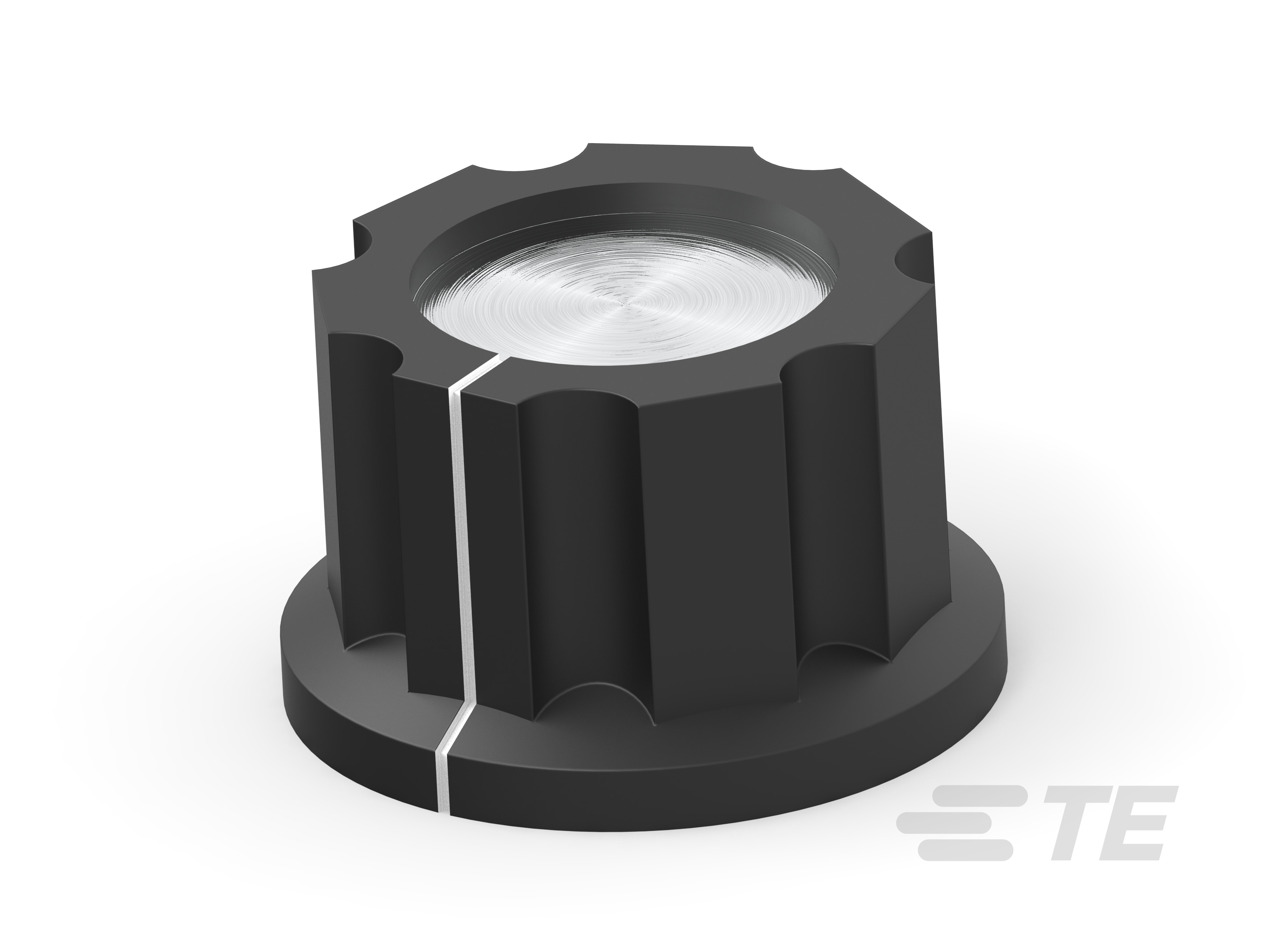

PKES70B1/4
Phenolic, Fluted Knob Design, 6.35 mm [.25 in] Shaft, 21.7 mm [.855 in] Diameter, Black, Line Indicator, Switch Knobs
PKES70B1/4
Phenolic, Fluted Knob Design, 6.35 mm [.25 in] Shaft, 21.7 mm [.855 in] Diameter, Black, Line Indicator, Switch Knobs
-
- Alcoswitch
- TE Internal #: 5-1437624-2
- TE Internal Description: PKES70B1/4=KNOB FLUTED W/SKIRT
-
Primary Product Material : Phenolic
-
Knob Design : Fluted
-
Shaft Size : 6.35 mm [ .25 in ]
-
Product Diameter : 21.7 mm [ .855 in ]
-
Primary Product Color : Black
Documents
Product Drawings
- KNOB, FLUTED WITH SKIRT (PKES60, PKES70, PKES90, PKES120, PKES140 & PKES150) ENG_CD_4-1437624-6_A2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_5-1437624-2_A.pdf English
- Customer View Model ENG_CVM_5-1437624-2_A.3d_igs.zip English
- ENG_CVM_5-1437624-2_A.3d_stp.zip English
- ENG_CVM_5-1437624-2_A.2d_dxf.zip English
