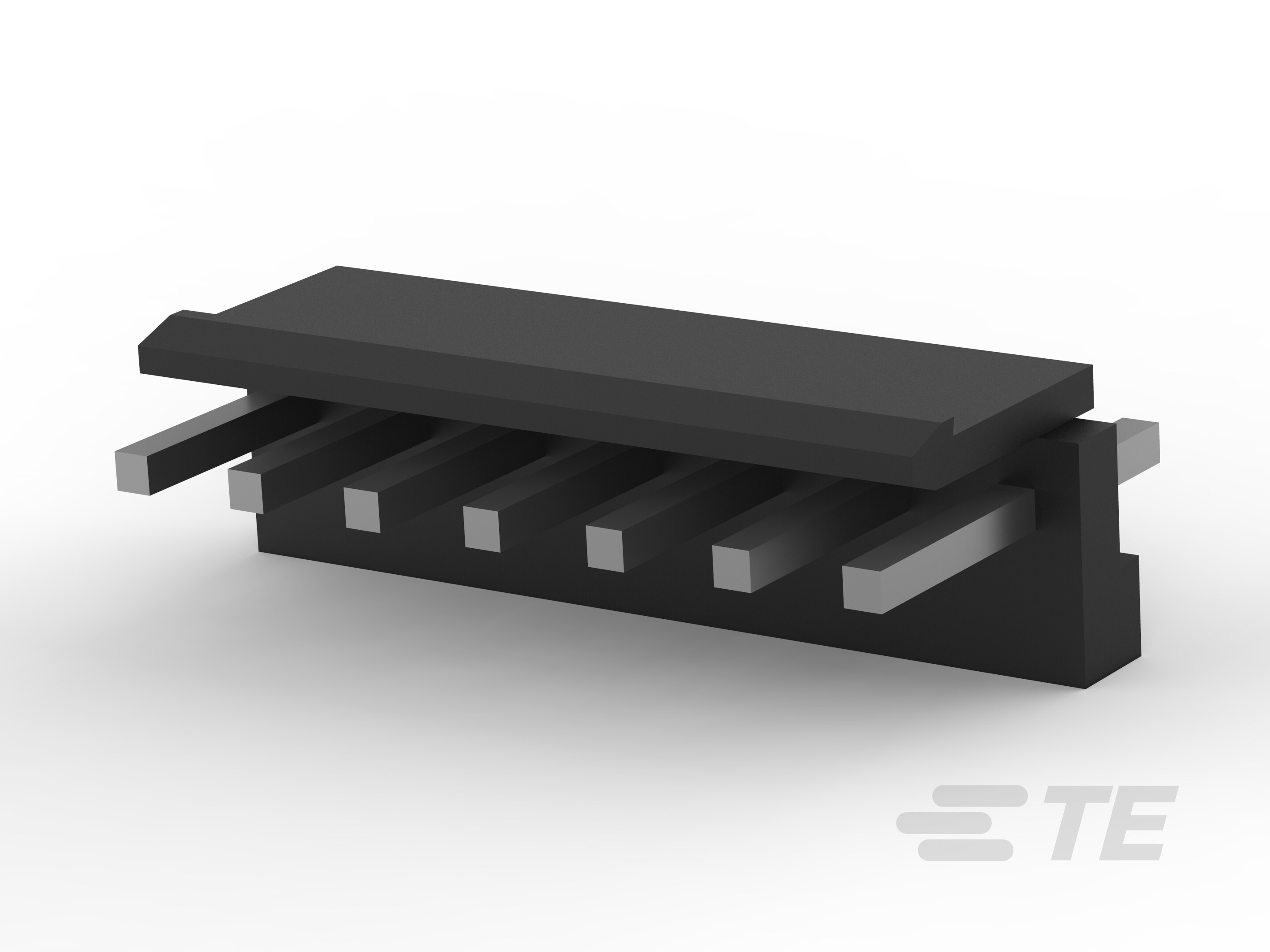

PCB Mount Header, Vertical, Wire-to-Board, 7 Position, 3.96 mm [.156 in] Centerline, Partially Shrouded, Tin (Sn), Economy Power
5-1123723-7
PCB Mount Header, Vertical, Wire-to-Board, 7 Position, 3.96 mm [.156 in] Centerline, Partially Shrouded, Tin (Sn), Economy Power
-
- Economy Power
- TE Internal #: 5-1123723-7
- TE Internal Description: 3.96 EP HDR ASSY 7P(BLACK)
-
PCB Connector Type : PCB Mount Header
-
PCB Mount Orientation : Vertical
-
Connector System : Wire-to-Board
-
Number of Positions : 7
-
Number of Rows : 1
