4-2188220-2

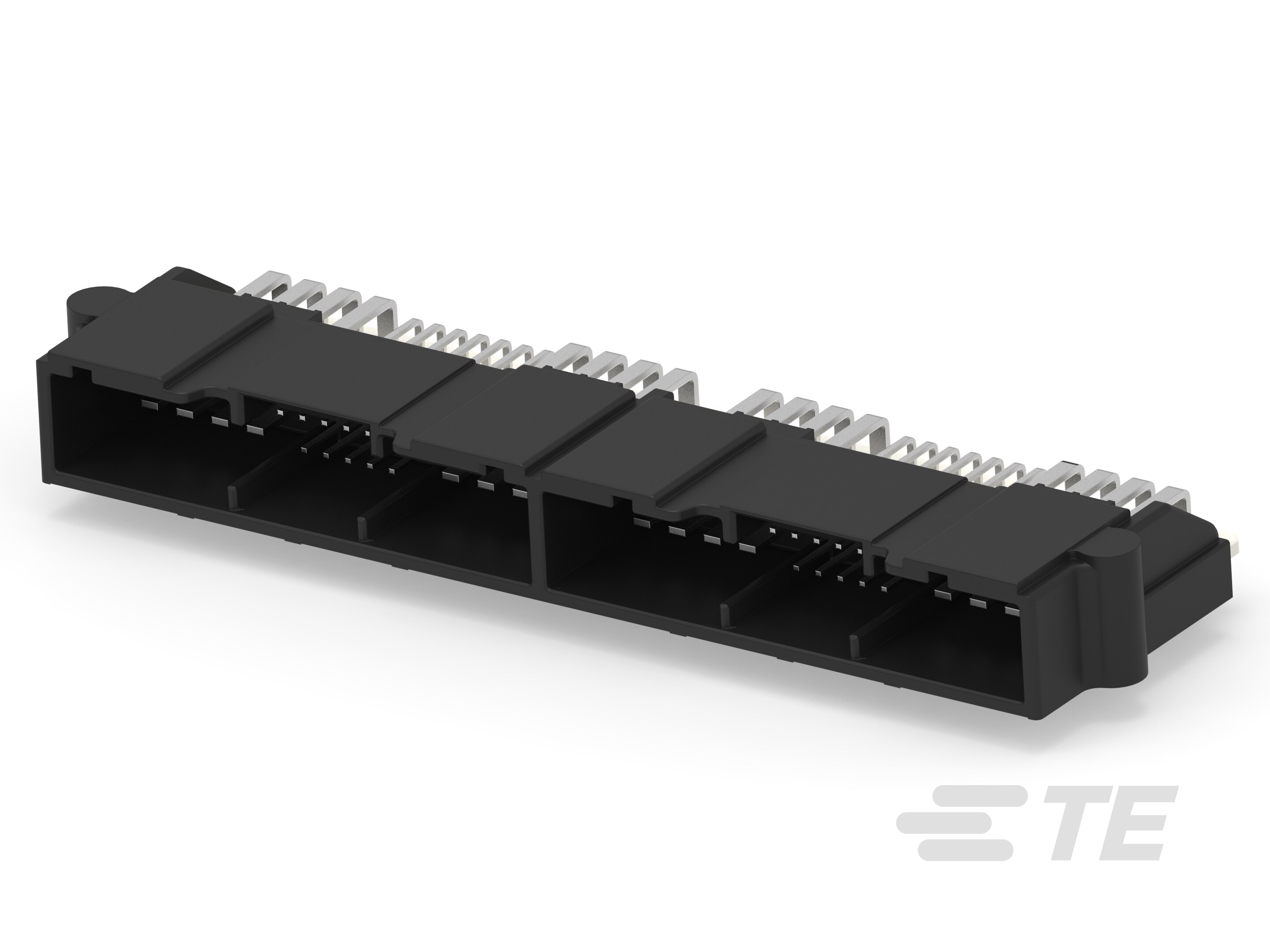

Horizontal, Wire-to-Board, 56 Position, 2 Rows, 2mm / 3.2mm [.078in / .126in] Centerline, Tin (Sn), Printed Circuit Board, Black, Board Mount
4-2188220-2
Horizontal, Wire-to-Board, 56 Position, 2 Rows, 2mm / 3.2mm [.078in / .126in] Centerline, Tin (Sn), Printed Circuit Board, Black, Board Mount
- TE Internal #: 4-2188220-2
- TE Internal Description: 020/060 56P HDR ASSY(CODE C)
-
PCB Mount Orientation : Horizontal
-
Termination Method to PCB : Through Hole - Solder
-
Sealable : No
-
Connector & Contact Terminates To : Printed Circuit Board
-
Primary Product Color : Black
Documents
Product Drawings
- 020/060 56P HEADER ASSY ENG_CD_2188220_B2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_4-2188220-2_A.pdf 3D
- Customer View Model ENG_CVM_CVM_4-2188220-2_A.2d_dxf.zip English
- ENG_CVM_CVM_4-2188220-2_A.3d_igs.zip English
- ENG_CVM_CVM_4-2188220-2_A.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-61215_A1.pdf English
