60KEVD10BFPW

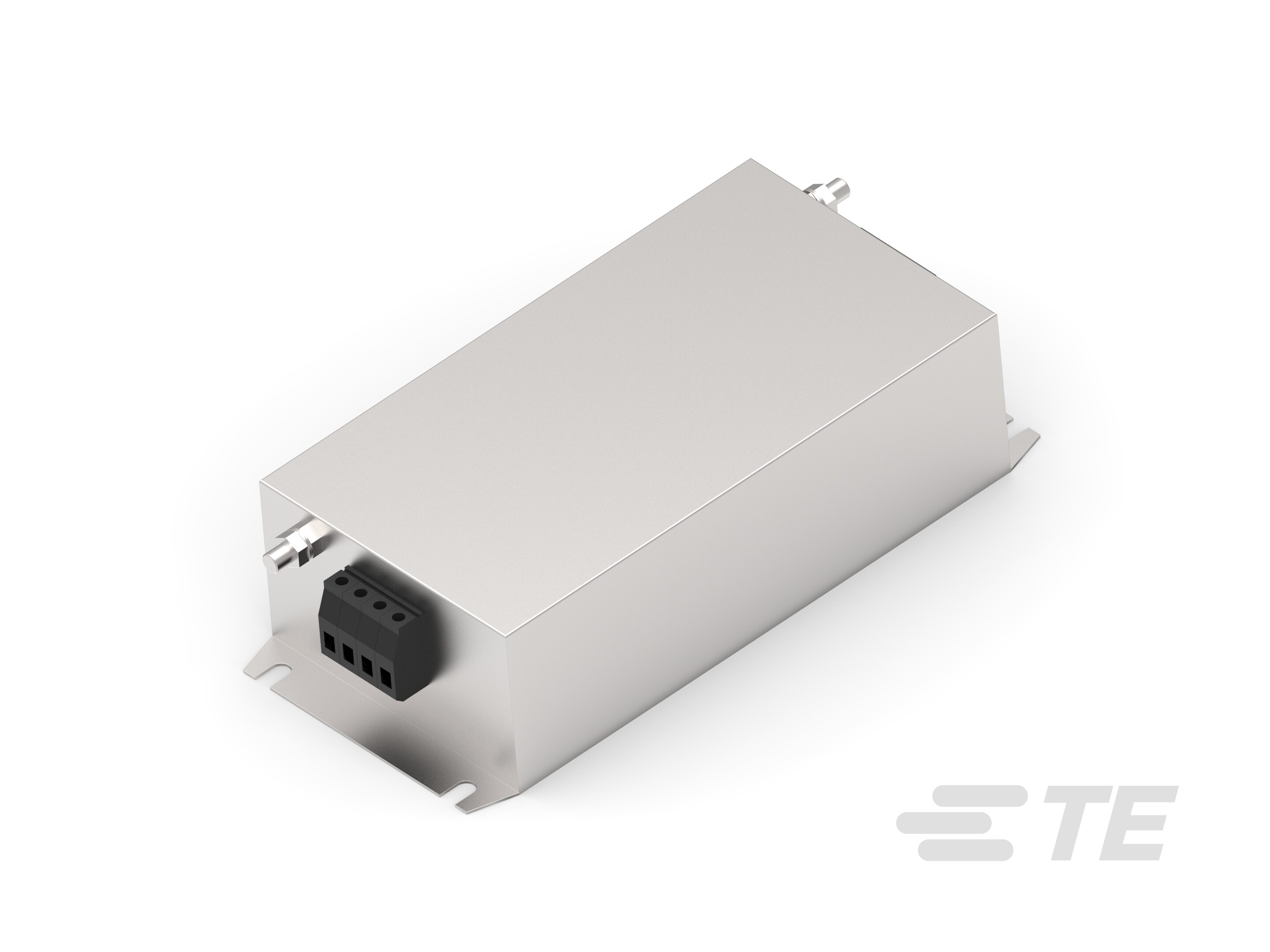

60 A 3-Phase Filter, Terminal Block Input, Terminal Block Output, WYE (4 wire + ground), 520 VAC, Chassis Mount, Corcom KEV
60KEVD10BFPW
60 A 3-Phase Filter, Terminal Block Input, Terminal Block Output, WYE (4 wire + ground), 520 VAC, Chassis Mount, Corcom KEV
-
- Corcom KEV
- TE Internal #: 4-1609998-4
- TE Internal Description: KEV 60A 2S SP WYE 520VAC
-
Current Rating (A): 60
-
Input Termination Type : Terminal Block
-
Output Termination Type : Terminal Block
-
Wiring Configuration : WYE (4 wire + ground)
-
Operating Voltage (VAC): 520
Documents
Product Drawings
- POWER LINE FILTER 60KEVD10BFPW ENG_CD_4-1609998-4_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_4-1609998-4_B.pdf 3D
- Customer View Model ENG_CVM_CVM_4-1609998-4_B.3d_igs.zip English
- ENG_CVM_CVM_4-1609998-4_B.3d_stp.zip English
- ENG_CVM_CVM_4-1609998-4_B.2d_dxf.zip English
Datasheets & Catalog Pages
- KEV SERIES ENG_DS_2376472-1_A3.pdf English
