MTA406NPC

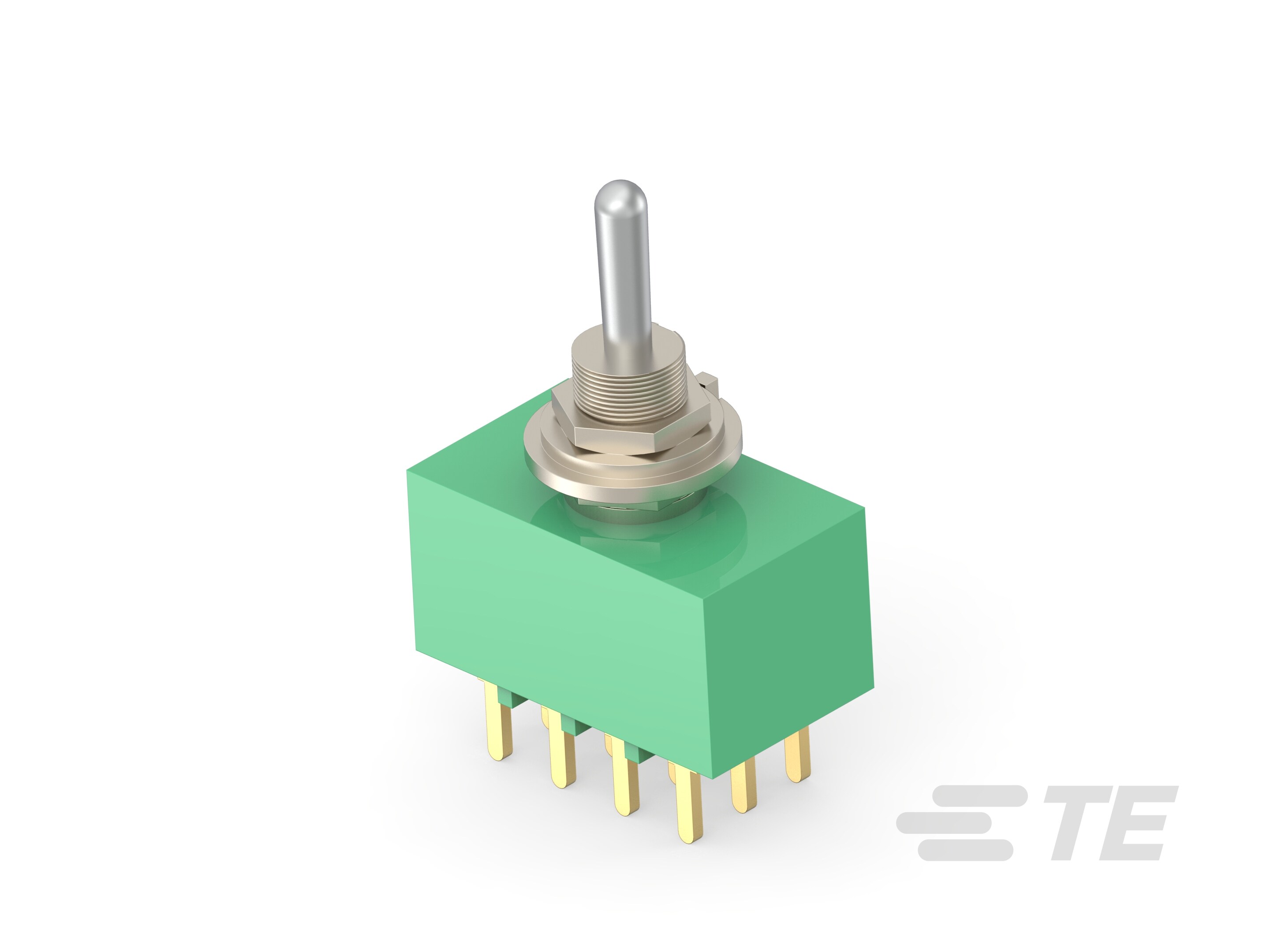

6 A Toggle Switch, Four Pole - Double Throw Configuration (Pole-Throw), On None On, 2 Position, 28 VDC, 125 VAC, Panel & Printed Circuit Board
MTA406NPC
6 A Toggle Switch, Four Pole - Double Throw Configuration (Pole-Throw), On None On, 2 Position, 28 VDC, 125 VAC, Panel & Printed Circuit Board
-
- Alcoswitch
- TE Internal #: 4-1437558-4
- TE Internal Description: MTA406NPC=(MSTA) SW TOG P/C TE
-
Contact Current Rating (A): 6
-
Configuration (Pole-Throw) : Four Pole - Double Throw
-
Operating Function : On None On
-
Number of Positions : 2
-
Operating Voltage (VDC): 28
Documents
Product Drawings
- TOGGLE SWITCH, MTA SERIES VERTICAL MOUNT ENG_CD_1-1437558-0_E5.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_4-1437558-4_F1.pdf 3D
- Customer View Model ENG_CVM_CVM_4-1437558-4_F1.3d_igs.zip English
- ENG_CVM_CVM_4-1437558-4_F1.3d_stp.zip English
- ENG_CVM_CVM_4-1437558-4_F1.2d_dxf.zip English
Datasheets & Catalog Pages
- 2-1773458-6_GREEN_SERIES_SWITCHES ENG_DS_2-1773458-6_GREEN_SERIES_SWITCHES_0512.pdf English
