350073-1

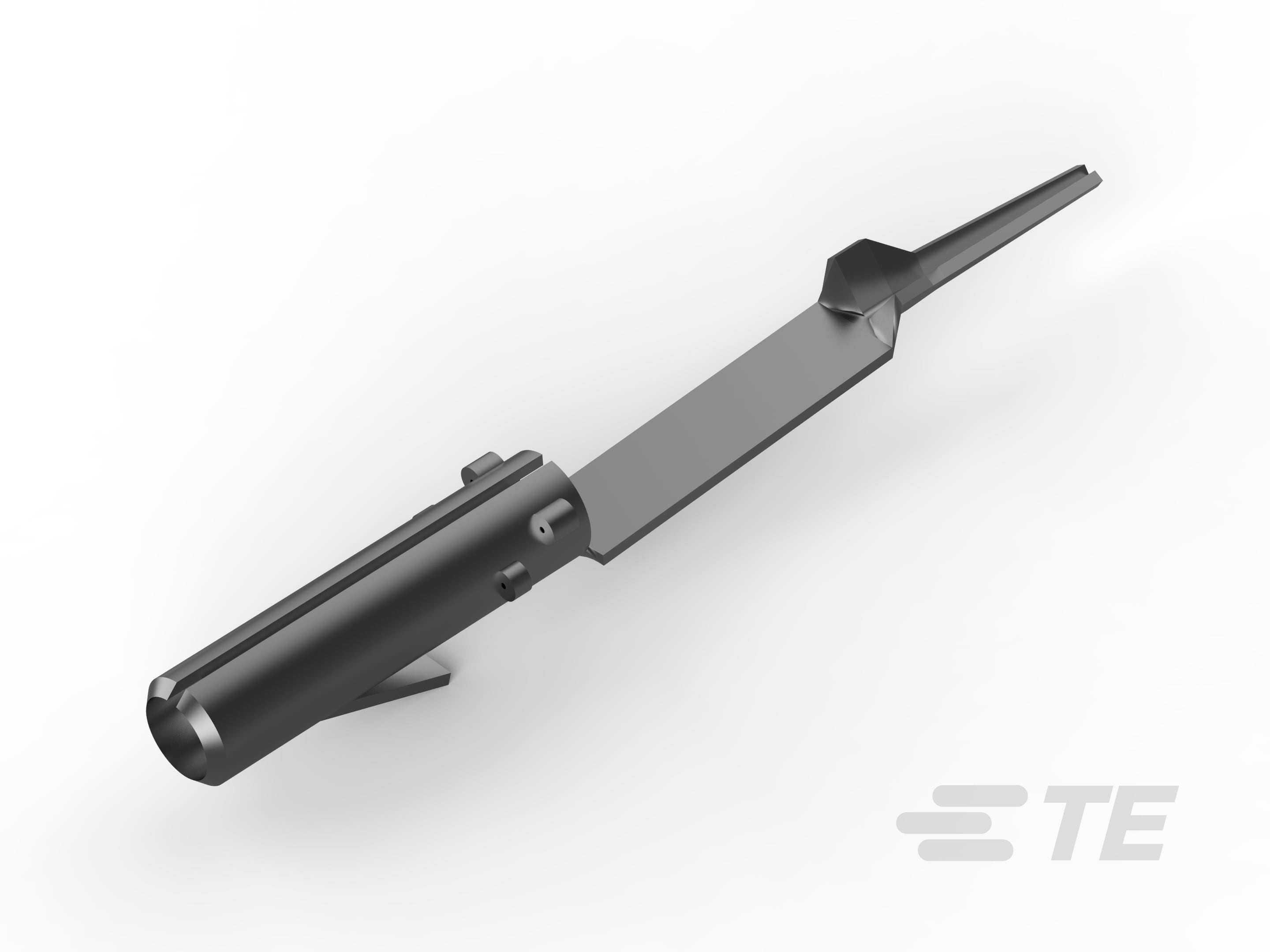

Socket Contact, Tin (Sn), 250 VAC, 250 VDC, Locking Lance Contact Retention, Phosphor Bronze, Power, Commercial MATE-N-LOK
350073-1
Socket Contact, Tin (Sn), 250 VAC, 250 VDC, Locking Lance Contact Retention, Phosphor Bronze, Power, Commercial MATE-N-LOK
-
- MATE-N-LOK
- Commercial MATE-N-LOK
- TE Internal #: 350073-1
- TE Internal Description: CMNL PCB SOK PTPPHBZ
-
Contact Type : Socket
-
Contact Mating Area Plating Material : Tin (Sn)
-
Operating Voltage (VAC): 250
-
Operating Voltage (VDC): 250
-
Contact Retention Within Housing : With
Documents
Product Drawings
- socket, mate-n-lok, with prited circuit board tab ENG_CD_350073_H1.pdf English
- socket, mate-n-lok, with prited circuit board tab English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_350073-1_H1.pdf English
- 3D_CVM_CVM_350073-1_P.pdf 3D
- Customer View Model ENG_CVM_350073-1_H1.3d_igs.zip English
- ENG_CVM_350073-1_H1.3d_stp.zip English
- ENG_CVM_350073-1_H1.2d_dxf.zip English
- ENG_CVM_CVM_350073-1_P.2d_dxf.zip English
- ENG_CVM_CVM_350073-1_P.3d_igs.zip English
- ENG_CVM_CVM_350073-1_P.3d_stp.zip English
Datasheets & Catalog Pages
- SOFT_SHELL_PIN_SOCKET_CONNECTORS_STANDARD_DENSITY ENG_CS_82181_SOFTSHELL_STANDARD_DENSITY_0508.pdf English
Product Specifications
- Application Specification ENG_SS_114-1012_H.pdf English
- Product Specification ENG_SS_108-1000_G.pdf English
