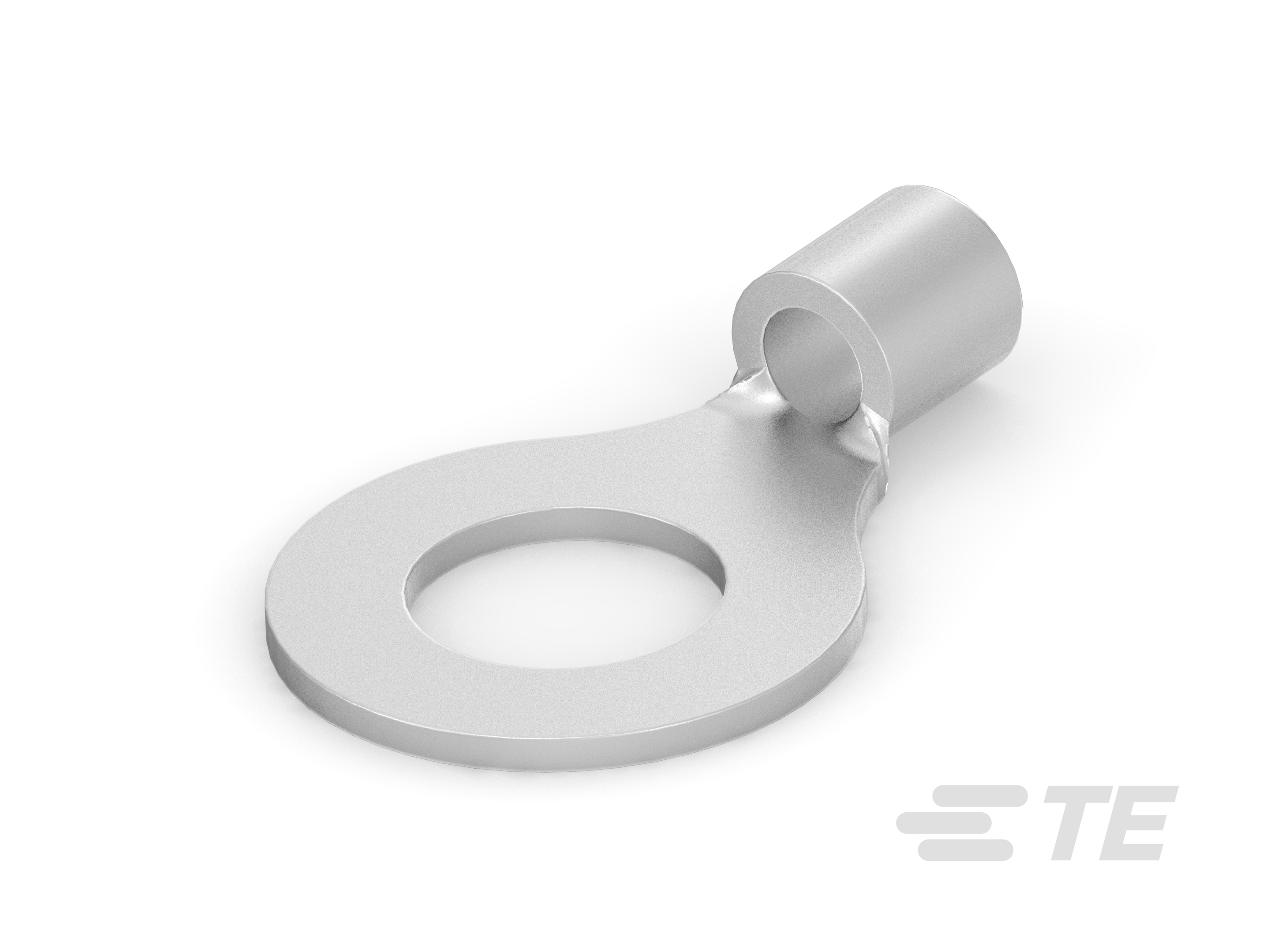

Closed Ring Tongue Terminal, 16 – 14 AWG, #14 Stud, 6.35 mm [.25 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, SOLISTRAND Budget
34896
Closed Ring Tongue Terminal, 16 – 14 AWG, #14 Stud, 6.35 mm [.25 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, SOLISTRAND Budget
-
- SOLISTRAND
- SOLISTRAND Budget
- TE Internal #: 34896
- TE Internal Description: RING TONGUE-BODY BUDGET
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 16 – 14
-
Wire Size (mm²): 1.04 – 2.62
-
Wire Size (CMA): 2050 – 5180
-
Stud Size : 14
Documents
Product Drawings
- TERMINAL, RING TONGUE, BUDGET ENG_CD_34896_B.pdf English
- TERMINAL, RING TONGUE, BUDGET English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_34896_H.pdf 3D
- Customer View Model ENG_CVM_CVM_34896_H.2d_dxf.zip English
- ENG_CVM_CVM_34896_H.3d_igs.zip English
- ENG_CVM_CVM_34896_H.3d_stp.zip English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-2049-28_D.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_E13288_19791001_C.pdf English
