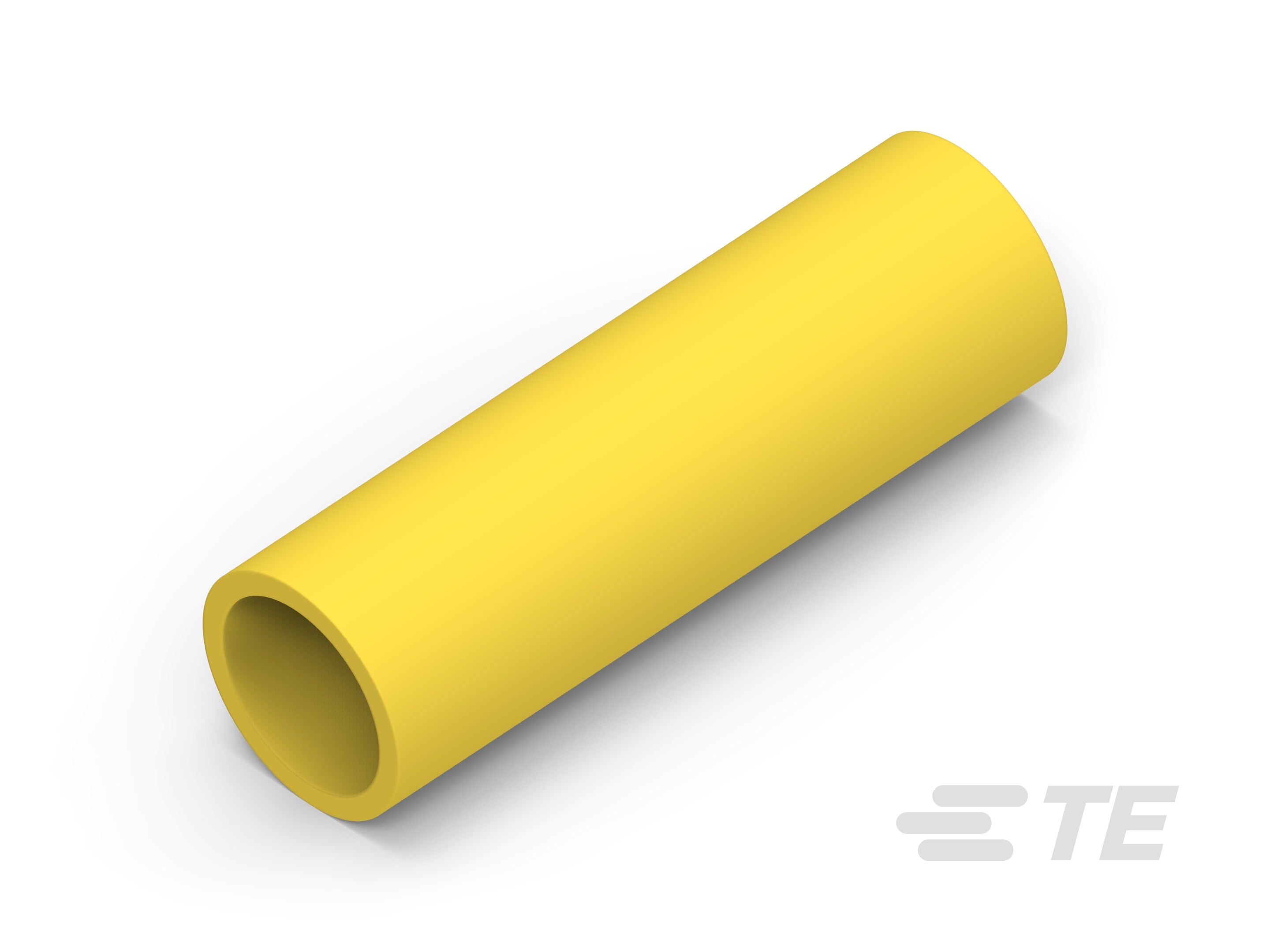

Parallel Splice, 12 – 10 AWG, 3 – 6 mm² Wire, Serrated, 5180 – 13100 CMA, Copper, Yellow, 22.1 mm [.87 in] Length, Loose Piece, PLASTI-GRIP
34136
Parallel Splice, 12 – 10 AWG, 3 – 6 mm² Wire, Serrated, 5180 – 13100 CMA, Copper, Yellow, 22.1 mm [.87 in] Length, Loose Piece, PLASTI-GRIP
-
- PLASTI-GRIP
- TE Internal #: 34136
- TE Internal Description: SPLICE,PG PARA 12-10
- Alias #: E82621-000 AMPS-0-0034136-0
-
Splice Type : Parallel Splice
-
Wire Size (AWG): 12 – 10
-
Wire Size (mm²): 3 – 6
-
Sealable : No
-
Splice Features : Serrated
