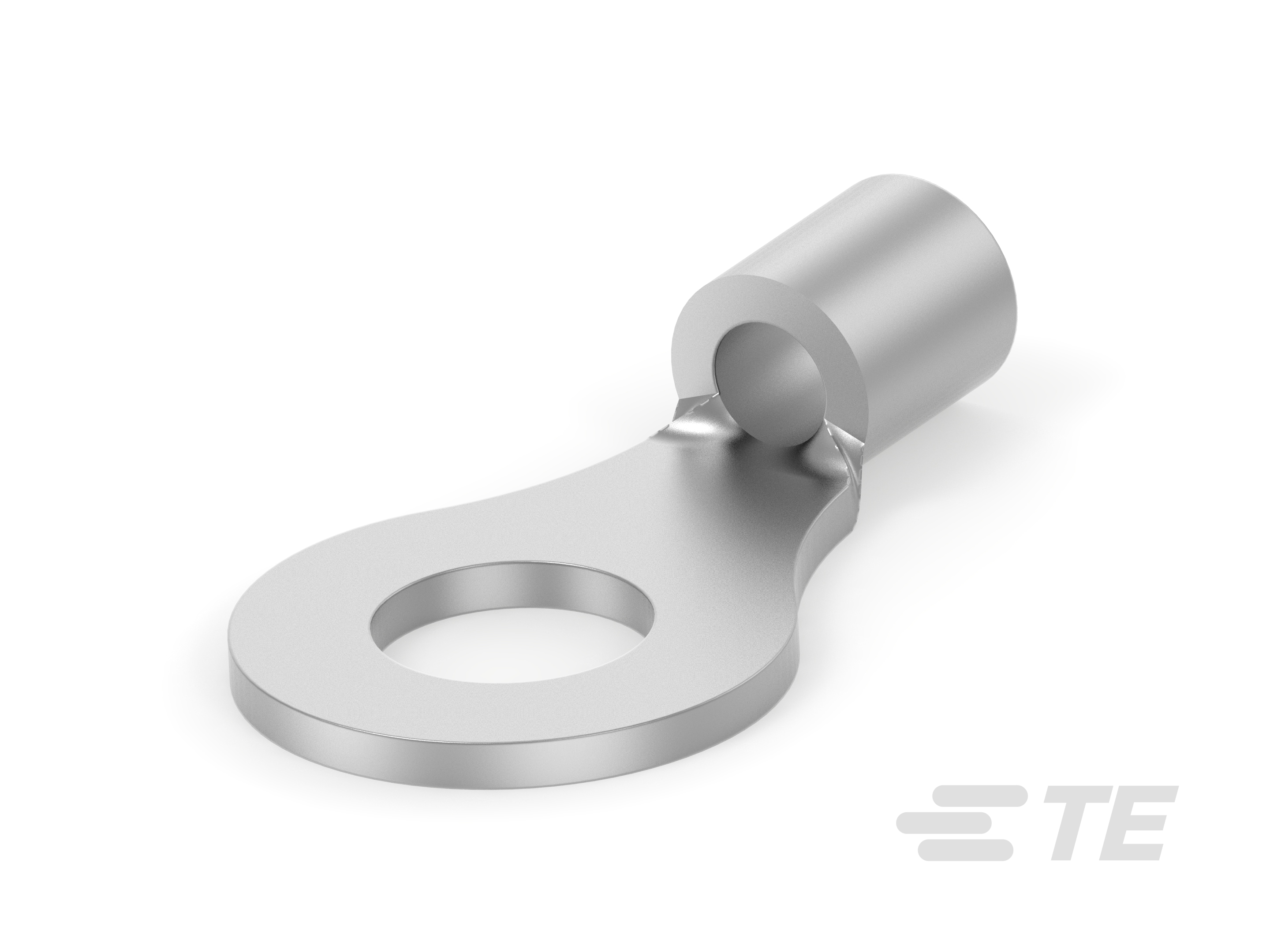

Closed Ring Tongue Terminal, 16 AWG, M6 Stud, 6.35 mm [.25 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated, SOLISTRAND Budget
33195
Closed Ring Tongue Terminal, 16 AWG, M6 Stud, 6.35 mm [.25 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated, SOLISTRAND Budget
-
- SOLISTRAND
- SOLISTRAND Budget
- TE Internal #: 33195
- TE Internal Description: TERMINAL,BUDG R 16-14 1/4
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 16
-
Wire Size (mm²): 1.25 – 2
-
Wire Size (CMA): 2050 – 5180
-
Stud Size : M6
Documents
Product Drawings
- terminal ring tongue heavy duty budget ENG_CD_33195_A.pdf English
- terminal ring tongue heavy duty budget English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_33195_N.pdf 3D
- Customer View Model ENG_CVM_CVM_33195_N.2d_dxf.zip English
- ENG_CVM_CVM_33195_N.3d_igs.zip English
- ENG_CVM_CVM_33195_N.3d_stp.zip English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-2049-28_D.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_E13288_19791001_C.pdf English
