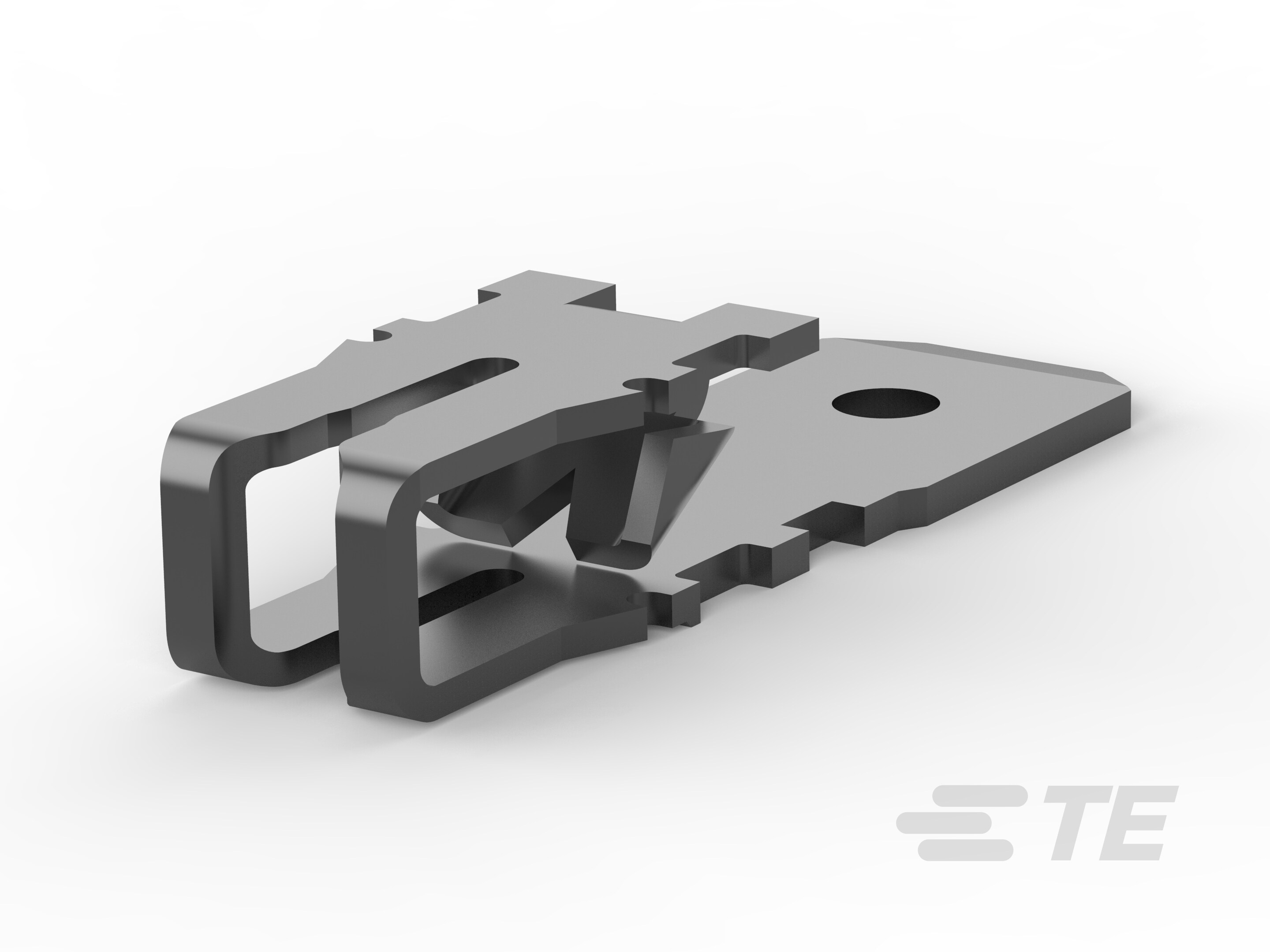

316300-6
Poke-In, 4.75 mm [.187 in] Tab Width, 20 – 18 AWG Lead Wire, .5 – .8 mm² Lead Wire, .9 – 1.15 mm Magnet Wire, MAG-MATE, Magnet Wire Terminals
316300-6
Poke-In, 4.75 mm [.187 in] Tab Width, 20 – 18 AWG Lead Wire, .5 – .8 mm² Lead Wire, .9 – 1.15 mm Magnet Wire, MAG-MATE, Magnet Wire Terminals
-
- MAG-MATE
- TE Internal #: 316300-6
- TE Internal Description: STD MAG-MATE .187 POKE-IN TAB
-
Magnet Wire Terminal Type : Poke-In
-
Mating Tab Width : 4.75 mm [ .187 in ]
-
Mating Tab Thickness : .5 mm [ .02 in ]
-
Compatible With Cavity Size : Size 1
-
Lead Wire Size (AWG): 20 – 18
Documents
Product Drawings
- STD MAG-MATE POKE-IN WITH .187 TAB English
- STD MAG-MATE POKE-IN WITH .187 TAB ENG_CD_316300_F2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_316300-6_N_c-316300-6-n-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_316300-6_N_c-316300-6-n.2d_dxf.zip English
- ENG_CVM_CVM_316300-6_N_c-316300-6-n.3d_igs.zip English
- ENG_CVM_CVM_316300-6_N_c-316300-6-n.3d_stp.zip English
Datasheets & Catalog Pages
- Magnet Wire Terminals & Splices ENG_DS_82221_MagnetWire_0616.pdf English
Product Specifications
- Application Specification S_114-5218_A.pdf English
- S_114-5218_A.tif English
- Product Specification JPN_SS_108-5500_G.tif Japanese
- JPN_SS_108-5500_G.pdf Japanese
Agency Approvals
- UL Report ENG_AAD_UL_E66717_20131108_A-1.pdf English
