This product is not currently available. For more information, including distributor inventory, please contact us.

3-535598-9

Active

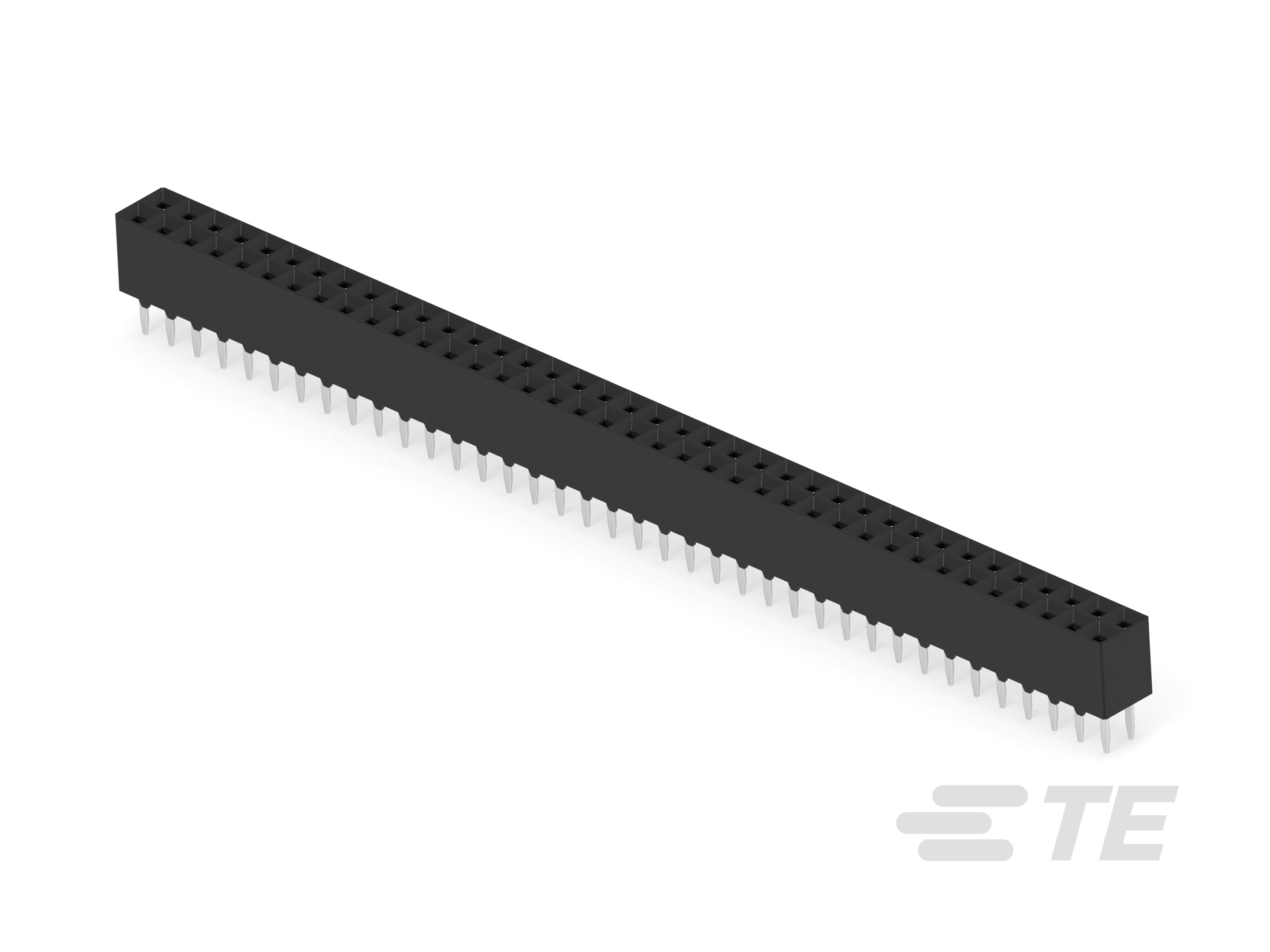

PCB Mount Receptacle, Vertical, Board-to-Board, 76 Position, 2.54 mm [.1 in] Centerline, Gold (Au), Through Hole - Solder, Modu Connector System

3-535598-9

Active

PCB Mount Receptacle, Vertical, Board-to-Board, 76 Position, 2.54 mm [.1 in] Centerline, Gold (Au), Through Hole - Solder, Modu Connector System

- AMPMODU
- Modu Connector System

TE Internal #: 3-535598-9
TE Internal Description: 76 MODIV VRT DR CE RCPT ASSY

PCB Connector Type : PCB Mount Receptacle
PCB Mount Orientation : Vertical
Connector System : Board-to-Board
Number of Positions : 76
Number of Rows : 2

See All Features

More Less

Compatible Parts & Tooling

Documents

Product Drawings

RECEPTACLE ASSEMBLY, MOD IV, DOUBLE ROW, DUAL ENTRY, .100X.100CL, ENG_CD_535598_R.pdf English

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF ENG_CVM_3-535598-9_P.pdf English
PCB Design Download symbol & footprint (SnapEDA)
Customer View Model ENG_CVM_3-535598-9_P.3d_igs.zip English
ENG_CVM_3-535598-9_P.3d_stp.zip English
ENG_CVM_3-535598-9_P.2d_dxf.zip English

Product Specifications

Application Specification ENG_SS_114-25018_E.pdf English
Product Specification ENG_SS_108-25022_D.pdf English
Qualification Test Report ENG_SS_501-68_C.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Applied Pressure : Standard
PCB Connector Type : PCB Mount Receptacle
Connector System : Board-to-Board
Sealable : No
Connector & Contact Terminates To : Printed Circuit Board
Connector Product Type : Connector Assembly

Configuration Features

Stackable : Yes
Board-to-Board Configuration : Parallel
PCB Mount Orientation : Vertical
Number of Positions : 76
Number of Rows : 2

Electrical Characteristics

Dielectric Withstanding Voltage (Max) (VAC): 750
Insulation Resistance (MΩ): 5000
Operating Voltage (VAC): 333

Body Features

Connector Profile : Low
Primary Product Color : Black

Contact Features

PCB Contact Termination Area Plating Material : Tin-Lead
Contact Base Material : Phosphor Bronze
Contact Protection Type : Closed Entry Housing
Contact Shape & Form : Short Point
PCB Contact Termination Area Plating Material Thickness (µm): 3.81
Mating Square Post Dimension : .64 mm [ .025 in ]
Contact Mating Area Plating Material Thickness : .25 µm [ 10 µin ]
Contact Mating Area Plating Material : Gold (Au)
Contact Type : Socket
Contact Current Rating (Max) (A): 2

Termination Features

Termination Post & Tail Length : 3.18 mm [ .125 in ]
Rectangular Termination Post & Tail Thickness : .2 mm [ .008 in ]
Rectangular Termination Post & Tail Width : .7 mm [ .027 in ]
Termination Method to PCB : Through Hole - Solder

Mechanical Attachment

PCB Mount Retention : Without
PCB Mount Alignment : Without
Connector Mounting Type : Board Mount
Mating Alignment : Without

Housing Features

Housing Material : Polyester GF
Mating Entry Location : Top
Centerline (Pitch) : 2.54 mm [ .1 in ]

Dimensions

Connector Height : 5.03 mm [ .198 in ]
PCB Thickness (Recommended) : 1.6 mm [ .062 in ]
Row-to-Row Spacing : 2.54 mm [ .1 in ]

Usage Conditions

Operating Temperature Range : -65 – 125 °C [ -85 – 257 °F ]

Operation/Application

Solder Process Feature : Board Standoff
Circuit Application : Signal

Industry Standards

Compatible With Approved Standards Products : CSA LR7189, UL E28476
UL Flammability Rating : UL 94V-0

Packaging Features

Packaging Method : Box, Tube
