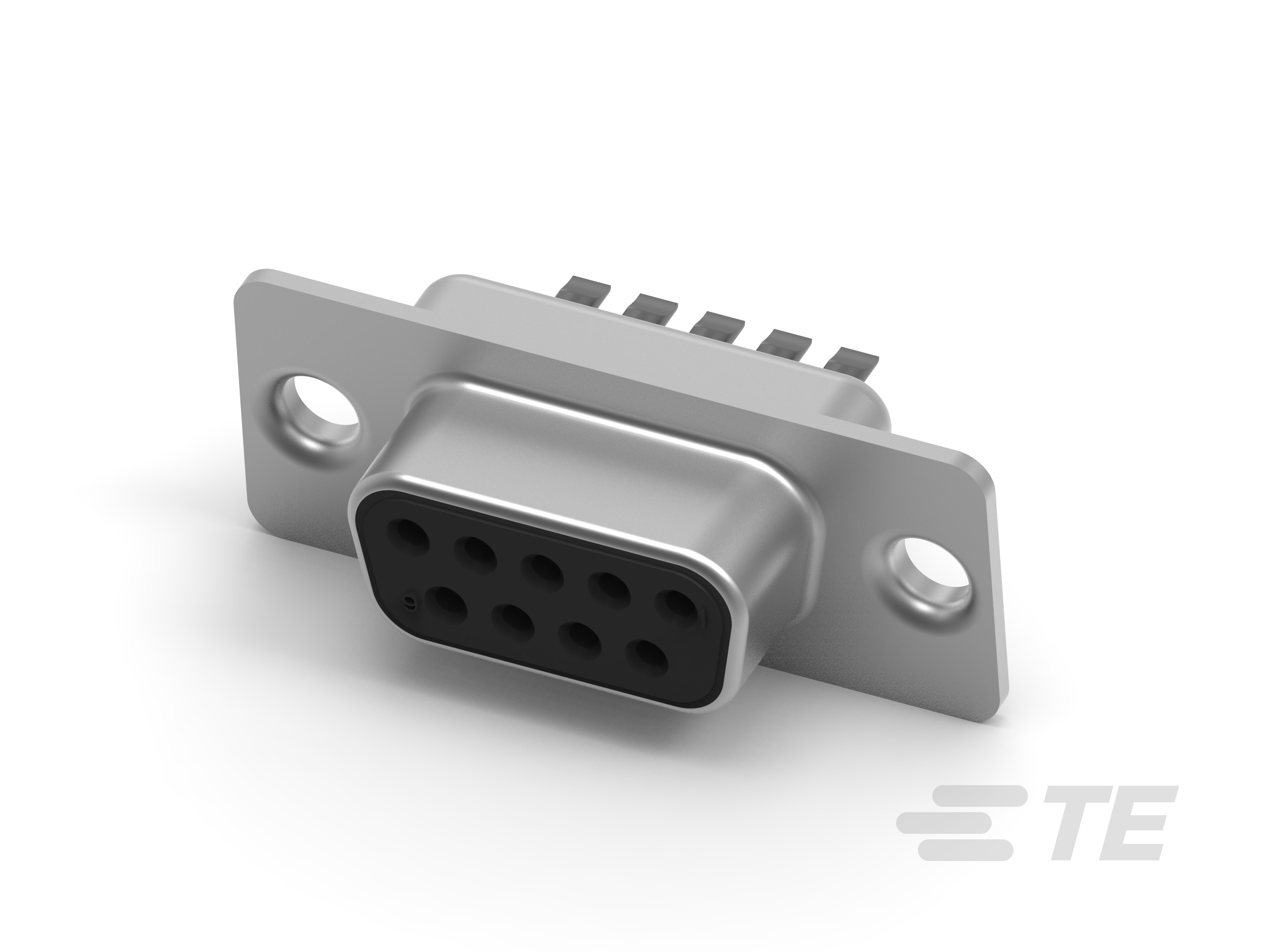

• Shell Material Configuration : Front Metal Shell

• Connector & Housing Type : Receptacle

• Connector System : Cable-to-Board

• Connector Shell Size : 1

• Sealable : No

• Connector & Contact Terminates To : Wire & Cable

• Number of Positions : 9

• Primary Product Color : Gray

• Cable Exit Angle : 180°

• Shell Plating Material : Tin over Nickel

• Contact Options : Order Separately

• Contact Mating Area Plating Material Thickness (µm): .08

• Contact Type : Socket

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Phosphor Bronze

• Contact Mating Area Plating Material : Gold (Au)

• Contact Size : Size 20

• Contact Current Rating (Max) (A): 3

• Termination Method to Wire & Cable : Solder Cup

• PCB Mount Retention Type : None

• Mating Retention : With

• Mating Retention Type : Mounting Holes

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Shell Material : Steel

• Housing Material : Thermoplastic

• Centerline (Pitch) : 12.93 mm [ .51 in ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Shielded : Yes

• Circuit Application : Signal

• UL Flammability Rating : UL 94V-0
