3-1123722-6

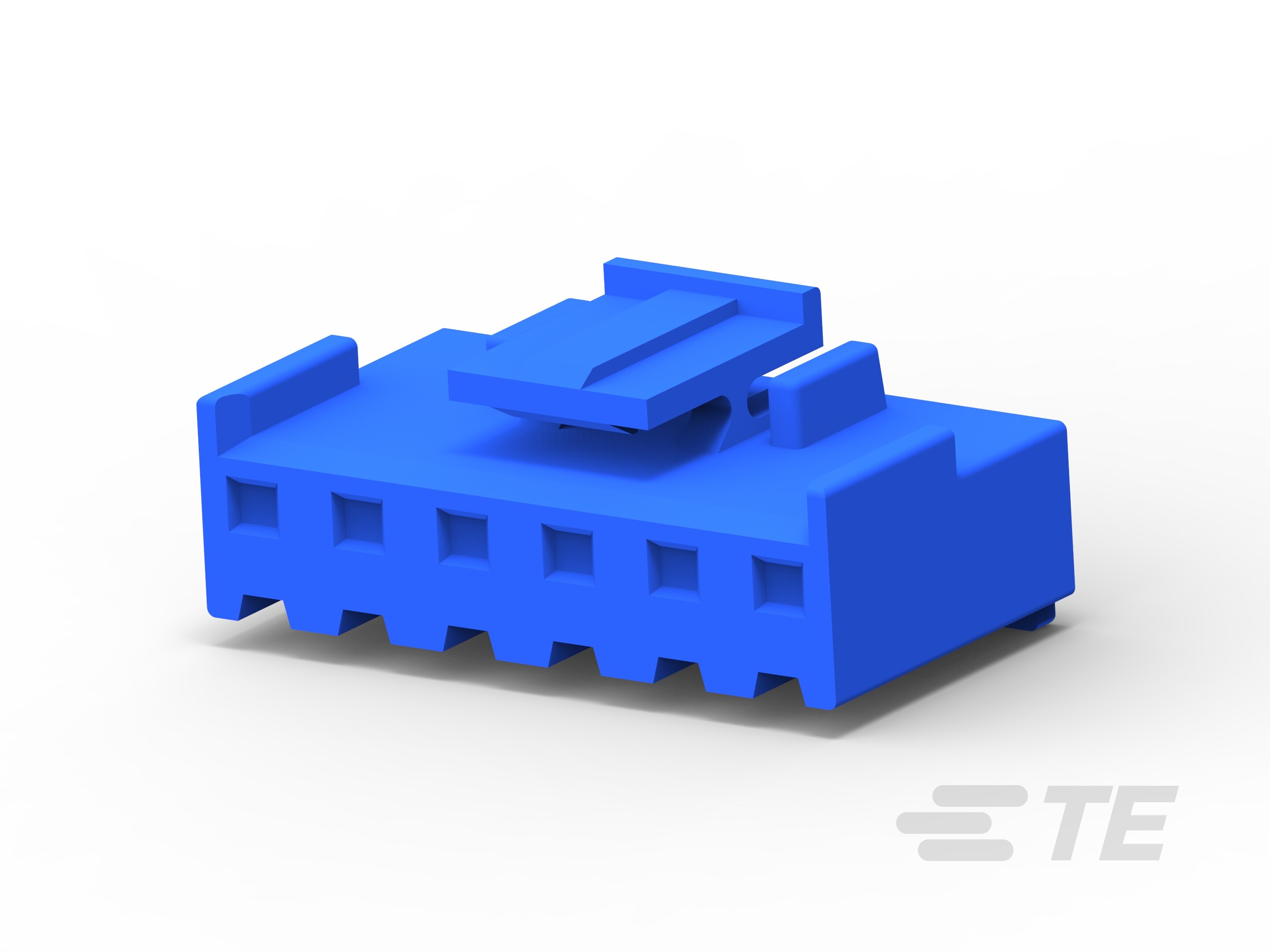

Housing, Plug, Crimp, Wire-to-Board, 6 Position, 3.96 mm [.156 in] Centerline, 1 Row, Economy Power, Rectangular Wire & Cable Connectors & Housings
3-1123722-6
Housing, Plug, Crimp, Wire-to-Board, 6 Position, 3.96 mm [.156 in] Centerline, 1 Row, Economy Power, Rectangular Wire & Cable Connectors & Housings
-
- Economy Power
- TE Internal #: 3-1123722-6
- TE Internal Description: 3.96 EP PLUG HSG 6P(BLUE)
-
Connector Product Type : Housing
-
Connector & Housing Type : Plug
-
Mating Alignment : Without
-
Mating Retention : With
-
Mating Retention Type : Latch, Locking Latch
