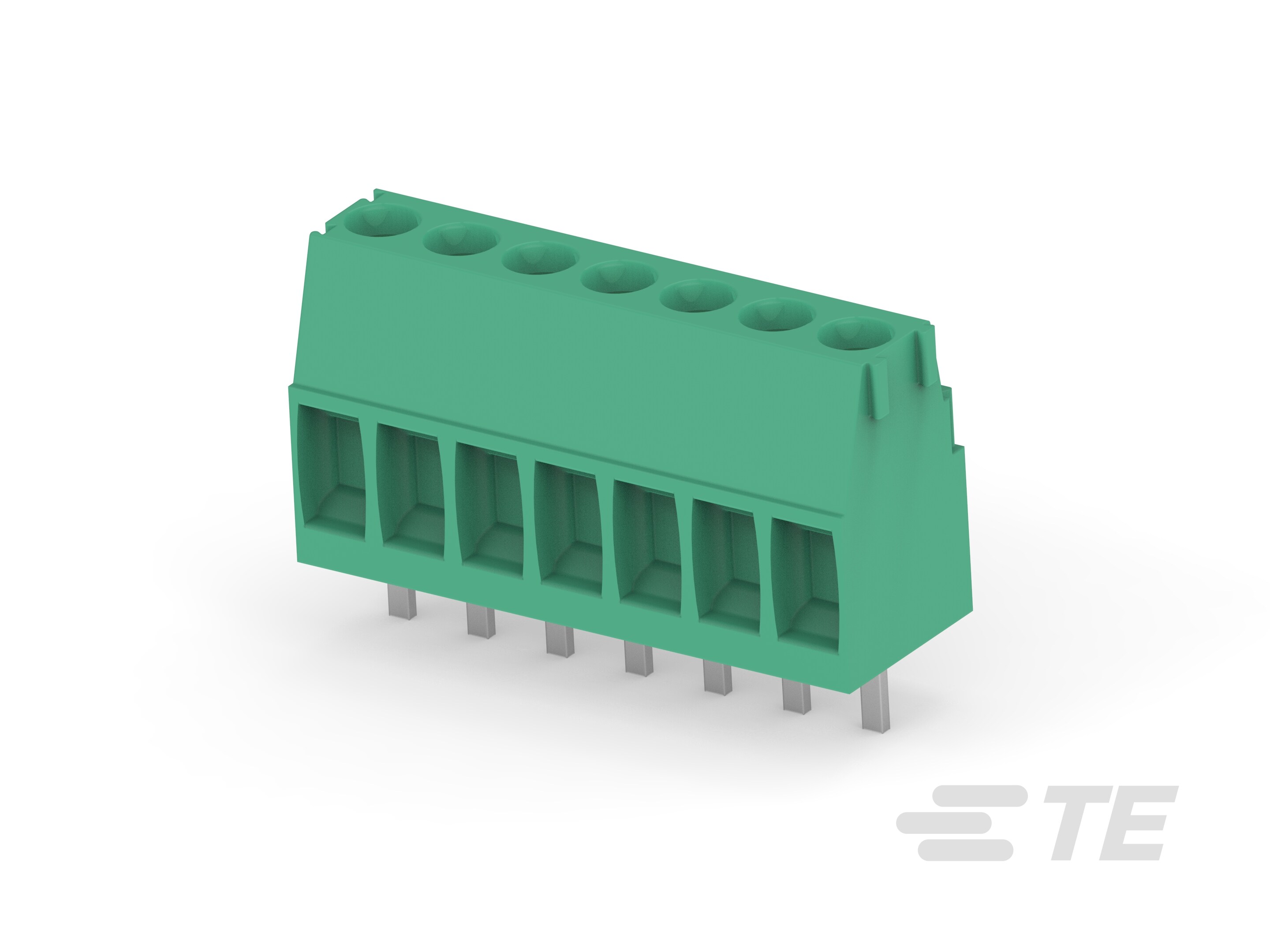

Header, Wire-to-Board, 7 Position, 3.5 mm [.138 in] Centerline, 1 Row, 90° Wire Entry Angle, 30 – 14 AWG Wire Size, PCB Terminal Blocks
284391-7
Header, Wire-to-Board, 7 Position, 3.5 mm [.138 in] Centerline, 1 Row, 90° Wire Entry Angle, 30 – 14 AWG Wire Size, PCB Terminal Blocks
-
- Buchanan
- TE Internal #: 284391-7
- TE Internal Description: TERMI-BLOK PCB SIDE ENTRY STAC
-
Terminal Block Connector Type : Header
-
Connector System : Wire-to-Board
-
Number of Positions : 7
-
Centerline (Pitch) : 3.5 mm [ .138 in ]
-
Number of Rows : 1
