282816-8

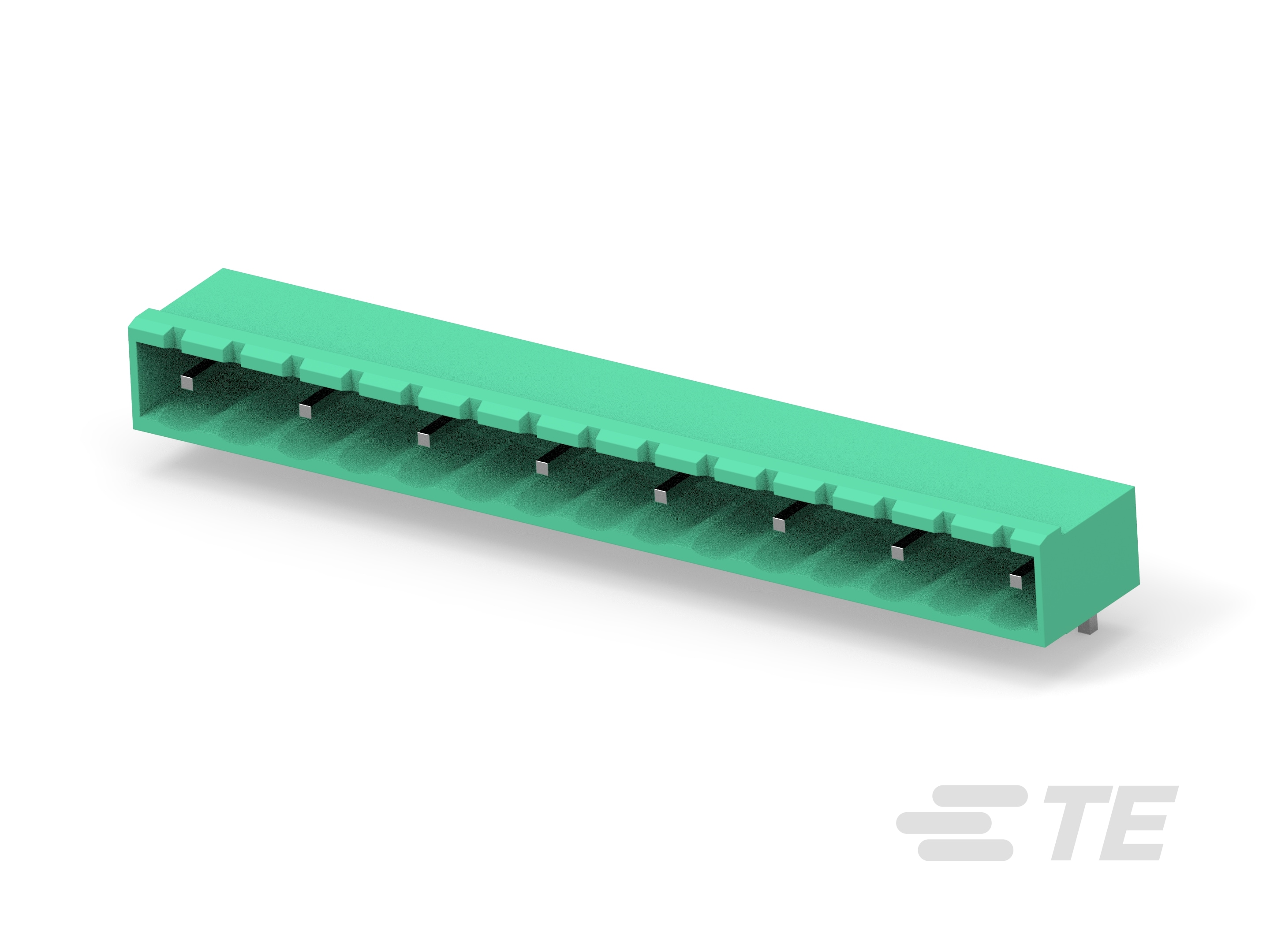

Header, Wire-to-Board, 8 Position, 10 mm [.394 in] Centerline, 1 Row, 30 – 12 AWG Wire Size, .05 – 3 mm² Wire Size, PCB Terminal Blocks
282816-8
Header, Wire-to-Board, 8 Position, 10 mm [.394 in] Centerline, 1 Row, 30 – 12 AWG Wire Size, .05 – 3 mm² Wire Size, PCB Terminal Blocks
-
- Buchanan
- TE Internal #: 282816-8
- TE Internal Description: TERMI-BLOK HEADER,ASSY90 8P.
-
Terminal Block Connector Type : Header
-
Connector System : Wire-to-Board
-
Number of Positions : 8
-
Centerline (Pitch) : 10 mm [ .394 in ]
-
Number of Rows : 1
Documents
Product Drawings
- TERMINAL BLOCK HEADER ASSEMBLY 90 DEGREE CLOSED ENDS 10mm PITCH ENG_CD_282816_C1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_282816-8_C.pdf 3D
- Customer View Model ENG_CVM_CVM_282816-8_C.2d_dxf.zip English
- ENG_CVM_CVM_282816-8_C.3d_igs.zip English
- ENG_CVM_CVM_282816-8_C.3d_stp.zip English
Datasheets & Catalog Pages
- BUCHANAN TERMINAL BLOCKS CATALOG - EUROSTYLE TERMINAL BLOCKS ENG_CS_1308389_EUROSTYLE_TERMINAL_BLOCKS_0607.pdf English
- BUCHANAN PCB TERMINAL BLOCKS ENG_DS_1-773958-1_2008.pdf English
- 1-1773458-1_EURO_STYLE_TERMINAL_BLOCKS_QRG ENG_DS_1-1773458-1_EURO_STYLE_QRG_0311.pdf English
Product Specifications
- Application Specification ENG_SS_114-20079_F.pdf English
- Product Specification S_108-20166_B.tif English
- ENG_SS_108-20166_B.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERTB_E60677_19960809_C1_7.pdf English
