This product is not currently available. For more information, including distributor inventory, please contact us.

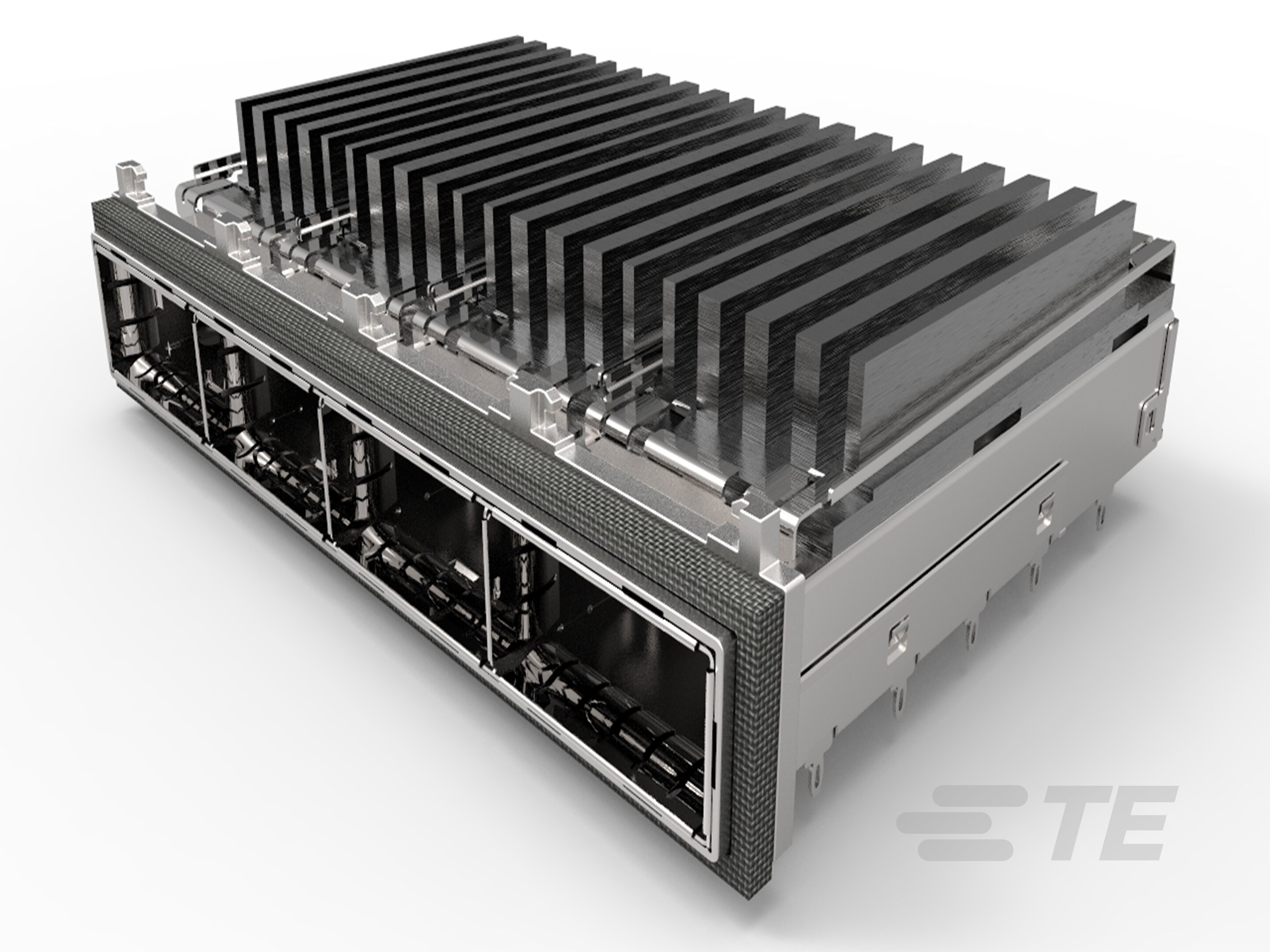

2227359-2
QSFP28/56, Cage Assembly, Signal, Operating Temperature Range -40 – 85 °C [-40 – 185 °F], Data Rate (Max) 25 Gb/s, 4 Ports
2227359-2
QSFP28/56, Cage Assembly, Signal, Operating Temperature Range -40 – 85 °C [-40 – 185 °F], Data Rate (Max) 25 Gb/s, 4 Ports
-
- zQSFP+/QSFP28
- TE Internal #: 2227359-2
- TE Internal Description: QSFP28 1X4 ASSEMBLY
-
Pluggable I/O Product Type : Cage Assembly
-
Sealable : No
-
Circuit Application : Signal
-
Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]
-
Data Rate (Max) (Gb/s): 25
Documents
Product Drawings
- RECEPTACLE ASSEMBLY, THRU BEZEL, 1X4, QSFP28 ENG_CD_2227359_A.pdf English
CAD Files
- 3D PDF 3D_CVM_CVM_2227359-2_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2227359-2_A.2d_dxf.zip English
- ENG_CVM_CVM_2227359-2_A.3d_igs.zip English
- ENG_CVM_CVM_2227359-2_A.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-19428_B.pdf English
- Qualification Test Report ENG_SS_501-60067_1.pdf English
Product Change Notification
- View Product Change Notification Login required to access product change notifications
Features
Select Features & Characteristics to Find Similar Products
You can find similar products by using the checkboxes to select the attributes you would like to keep the same. When you click on 'View Similar Products' you can further narrow your search using filters to find products with differing attributes.
Please review product documents or contact us for the latest agency approval information.
Please Note: Use the Product Drawing for all design activity.
The only matching product is this current one. Please revise your search to continue.
0 similar products are available. Please choose different features or characteristics.
Something went wrong. Please try again
Product Features & Characteristics
Select All
Product Type Features
-
Thermal Accessory Type Included : Heat Sink
-
Cage Type : Ganged
-
Pluggable I/O Product Type : Cage Assembly
-
Sealable : No
-
Form Factor : QSFP28/56
Configuration Features
-
Number of Rear EONs per Port Column : 1
-
Number of Ports : 4
-
Port Matrix Configuration : 1 x 4
Electrical Characteristics
-
Data Rate (Max) (Gb/s): 25
Body Features
-
Heat Sink Height (in): .732
-
Heat Sink Height Class : Custom
-
Heat Sink Finish : Anodized Black
-
Heat Sink Style : Fin
Contact Features
-
PCB Contact Termination Area Plating Material : Tin
Termination Features
-
Termination Post & Tail Length : 2.2 mm [ .086 in ]
-
Termination Method to PCB : Through Hole - Press-Fit
Housing Features
-
Cage Material : Nickel Silver
Dimensions
-
PCB Thickness (Recommended) : 1.45 mm [ .057 in ]
Usage Conditions
-
Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]
Operation/Application
-
Pluggable I/O Applications : Thermally Enhanced
-
Circuit Application : Signal
Industry Standards
-
UL Flammability Rating : UL 94V-0
Packaging Features
-
Packaging Method : Box & Tray
Other
-
Included Lightpipe : No
-
EMI Containment Feature Type : Elastomeric Gasket
Select attributes you would like to keep to see similar products.
The only matching product is this current one. Please revise your search to continue.
0 similar products are available. Please choose different features or characteristics.
Product Compliance
