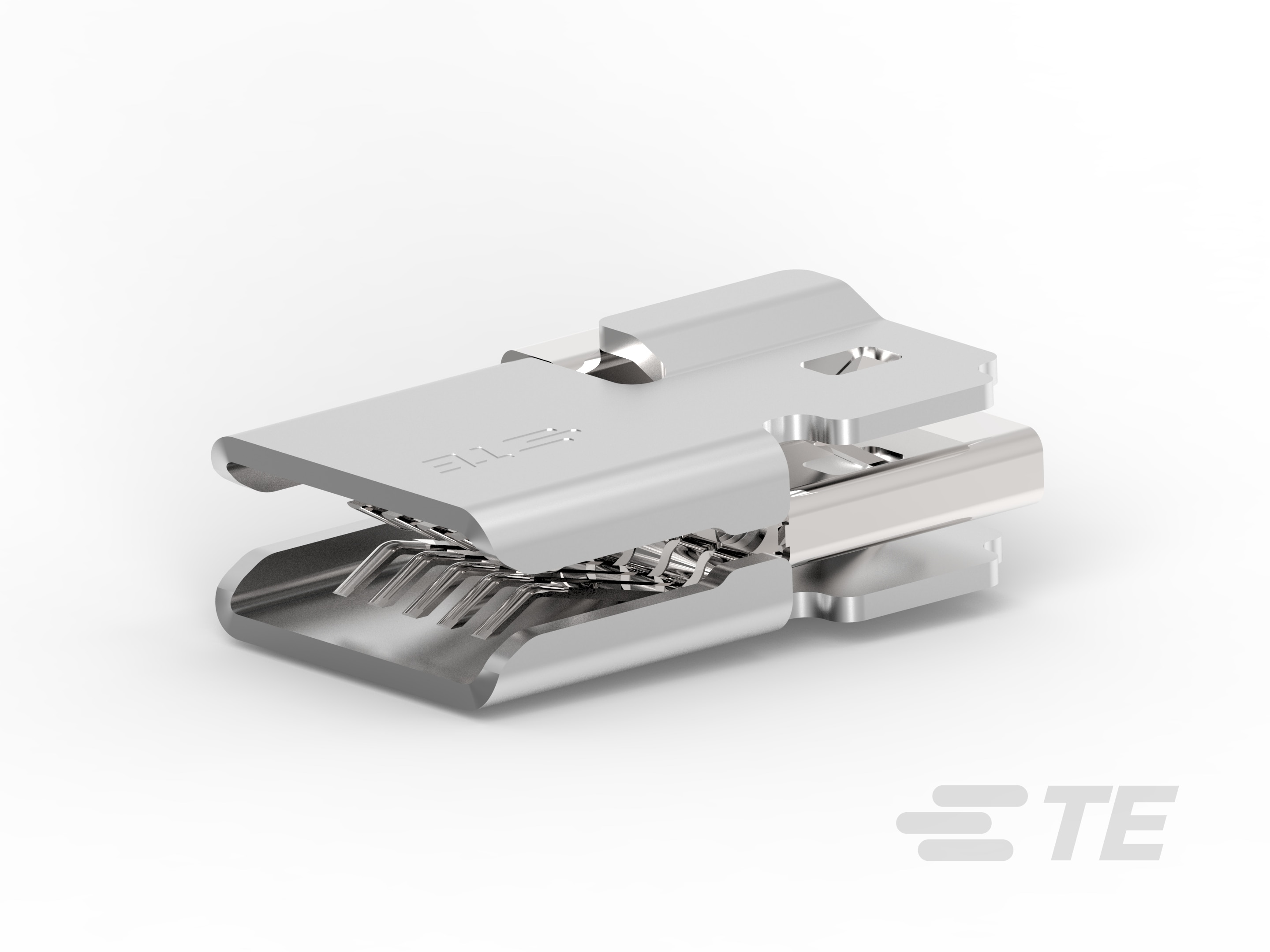

Name: 200A R/A Pluggable Busbar Connector
Brand: TE Connectivity (TE)
Price: 10.48 USD
Availability: InStock

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Connector & Housing Type : Receptacle
Connector System : Bus Bar-to-Bus Bar
Connector & Contact Terminates To : Bus Bar

Configuration Features

Number of Positions : 1
PCB Mount Orientation : Right Angle
Mating & Unmating Configuration : Normal

Electrical Characteristics

Operating Voltage (VDC): 15
Operating Voltage (VAC): 600

Body Features

Bus Bar Contact Plating Material : Silver

Contact Features

Contact Mating Area Plating Material Thickness : 3 µm [ 118 µin ]
Contact Underplating Material Thickness : 1.27 µm [ 50 µin ]
Contact Underplating Material : Nickel
Contact Shape & Form : Multiple Contact Point
Contact Base Material : Copper Alloy
Contact Current Rating (Max) (A): 200
Contact Length : 41.23 mm [ 1.62 in ]
Bus Bar Contact Style : Socket

Mechanical Attachment

Mating Alignment Type : Blindmate
Mating Alignment : With
Bus Bar Connector Mounting Retention : With
PCB Mount Retention Type : Mounting Hole
Connector Mounting Type : Board Mount

Housing Features

Housing Material : Stainless Steel

Dimensions

Wire Size (AWG): 2
Wire Size (mm²): 34 – 35
Connector Height : 28.45 mm [ 1.12 in ]
Product Length : 83.67 mm [ 3.29 in ]
Product Width : 58.17 mm [ 2.29 in ]
Wire Size (CMA): 67099 – 69073

Usage Conditions

Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

Circuit Application : Power

Industry Standards

Compatible With Agency/Standards Products : UL

Packaging Features

Packaging Method : Bag & Box

Other

Mating Conductor Thickness : 3.18 mm [ .125 in ]

2204080-1

Bus Bar-to-Bus Bar, 1 Position, Bus Bar, Stainless Steel, Bag & Box, Right Angle, Copper Alloy, Normal, Power, Board Mount, Busbar Connectors

2204080-1

Bus Bar-to-Bus Bar, 1 Position, Bus Bar, Stainless Steel, Bag & Box, Right Angle, Copper Alloy, Normal, Power, Board Mount, Busbar Connectors

Connector System : Bus Bar-to-Bus Bar

Number of Positions : 1

Connector & Contact Terminates To : Bus Bar

Mating Conductor Thickness : 3.18 mm [ .125 in ]

Housing Material : Stainless Steel

Documents

Product Drawings

CAD Files

Product Specifications

Agency Approvals

Product Change Notification

Features

Product Type Features

Connector & Housing Type : Receptacle

Connector System : Bus Bar-to-Bus Bar

Connector & Contact Terminates To : Bus Bar

Configuration Features

Number of Positions : 1

PCB Mount Orientation : Right Angle

Mating & Unmating Configuration : Normal

Electrical Characteristics

Operating Voltage (VDC): 15

Operating Voltage (VAC): 600

Body Features

Bus Bar Contact Plating Material : Silver

Contact Features

Contact Mating Area Plating Material Thickness : 3 µm [ 118 µin ]

Contact Underplating Material Thickness : 1.27 µm [ 50 µin ]

Contact Underplating Material : Nickel

Contact Shape & Form : Multiple Contact Point

Contact Base Material : Copper Alloy

Contact Current Rating (Max) (A): 200

Contact Length : 41.23 mm [ 1.62 in ]

Bus Bar Contact Style : Socket

Mechanical Attachment

Mating Alignment Type : Blindmate

Mating Alignment : With

Bus Bar Connector Mounting Retention : With

PCB Mount Retention Type : Mounting Hole

Connector Mounting Type : Board Mount

Housing Features

Housing Material : Stainless Steel

Dimensions

Wire Size (AWG): 2

Wire Size (mm²): 34 – 35

Connector Height : 28.45 mm [ 1.12 in ]

Product Length : 83.67 mm [ 3.29 in ]

Product Width : 58.17 mm [ 2.29 in ]

Wire Size (CMA): 67099 – 69073

Usage Conditions

Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

Circuit Application : Power

Industry Standards

Compatible With Agency/Standards Products : UL

Packaging Features

Packaging Method : Bag & Box

Other

Mating Conductor Thickness : 3.18 mm [ .125 in ]
