216005-4

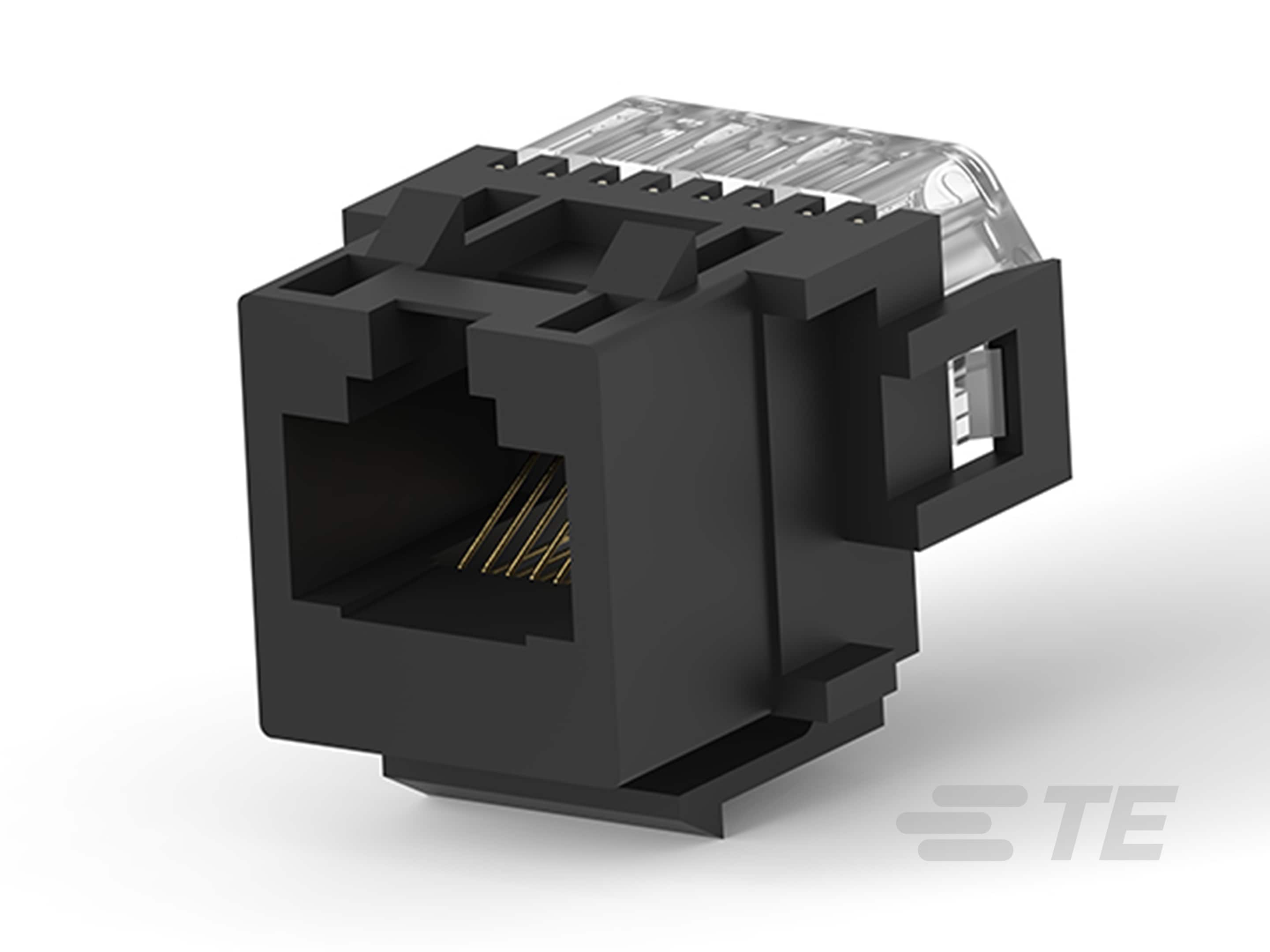

RJ45 Connector, Single Port, 1 x 1, Jack, Cat 3, Standard - Latch Down, 8 Position, Standard Profile, Surface Mount, Right Angle, Side Entry, None
216005-4
RJ45 Connector, Single Port, 1 x 1, Jack, Cat 3, Standard - Latch Down, 8 Position, Standard Profile, Surface Mount, Right Angle, Side Entry, None
- TE Internal #: 216005-4
- TE Internal Description: WITH STUFFER CAP
- Alias #: A17555-000 AMP-0-0216005-4
-
Modular Jack & Plug Interface Type : RJ45
-
Port Configuration : Single Port
-
Port Matrix Configuration : 1 x 1
-
Modular Jacks & Plugs Products : RJ Type Jacks & Plugs
-
Connector Contact Density : Standard
Documents
Product Drawings
- Toolless Modular Jack kit, 8 pos., for discrete wires English
- Toolless Modular Jack kit, 8 pos., for discrete wires ENG_CD_216005_P1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_216005-4_F.pdf 3D
- Customer View Model ENG_CVM_CVM_216005-4_F.2d_dxf.zip English
- ENG_CVM_CVM_216005-4_F.3d_igs.zip English
- ENG_CVM_CVM_216005-4_F.3d_stp.zip English
Product Specifications
- Application Specification S_114-19020_D.tif English
- S_114-19020_D.pdf English
- Inspection Specification ENG_SS_101-160122_A.pdf English
- Product Specification ENG_SS_108-19064_B.tif English
- ENG_SS_108-19064_B.pdf English
- ENG_SS_108-2351_H1.pdf English
