Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

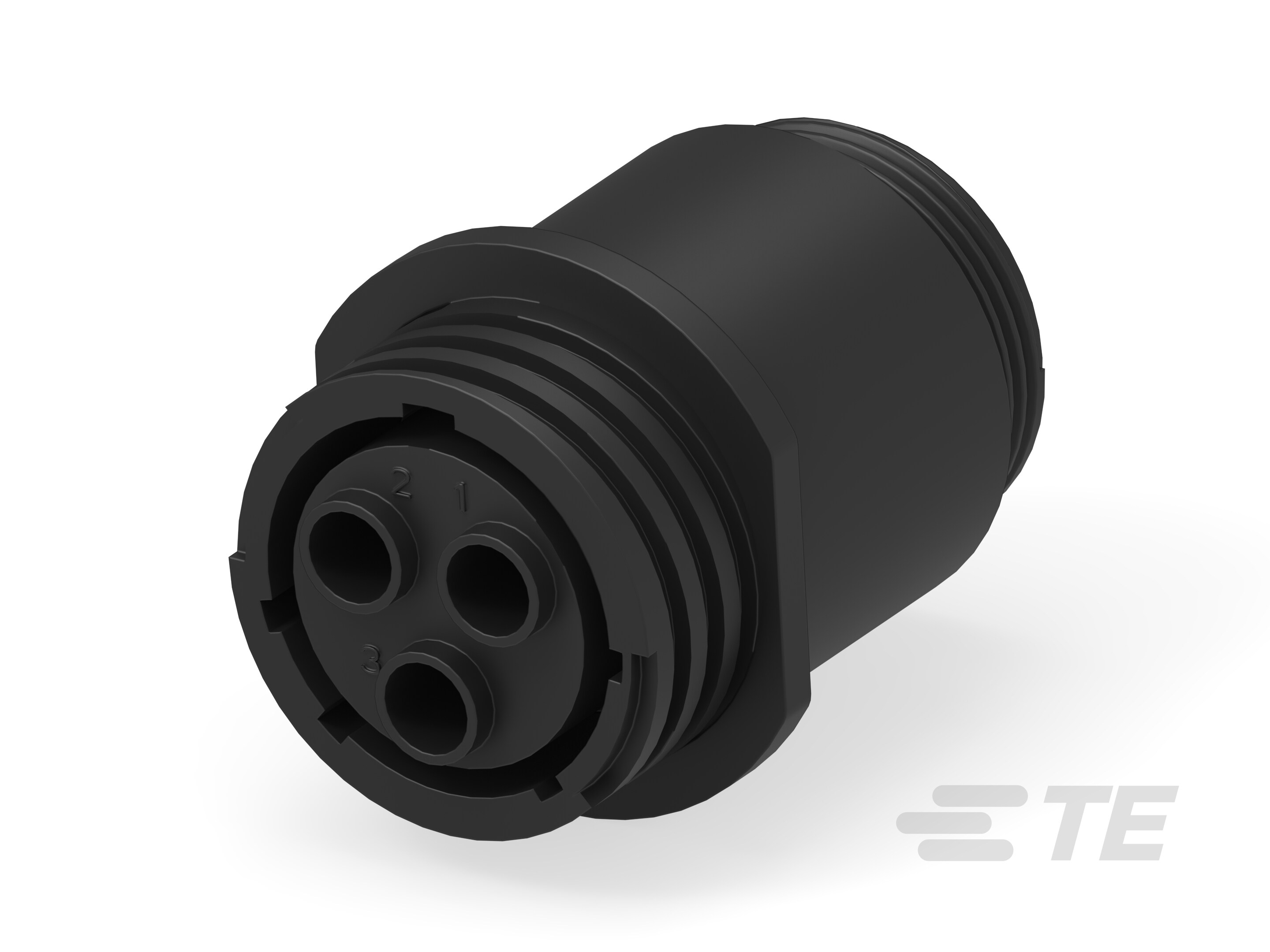

• Connector Product Type : Housing

• Connector System : Wire-to-Wire

• Sealable : No

• Connector & Contact Terminates To : Wire & Cable

• Connector & Housing Type : Receptacle

• Circular Connector Shell Type : All Plastic

• Number of Positions : 3

• Number of Power Positions : 3

• Number of Signal Positions : 0

• Reverse Numbering : With

• Operating Voltage (VDC): 250

• Operating Voltage (VAC): 250

• Reverse Gender : Yes

• Contact Type : Socket

• Contact Protection : With

• Polarization Code : A

• Thread Size : 15/16-20 UNEF – 2A

• Mating Retention Type : Threaded Coupling

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Mating Retention : With

• Panel Mount Feature : Without

• Body Orientation : Straight

• Housing Color : Black

• Housing Material : Nylon

• Circular Connector Shell Size : 17

• Compatible Insulation Diameter Range : 3.96 – 6.6 mm [ .156 – .26 in ]

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Fluid Resistance : None

• Circuit Application : Power & Signal

• Shielded : No

• UL Flammability Rating : UL 94V-0
